Detailed Description

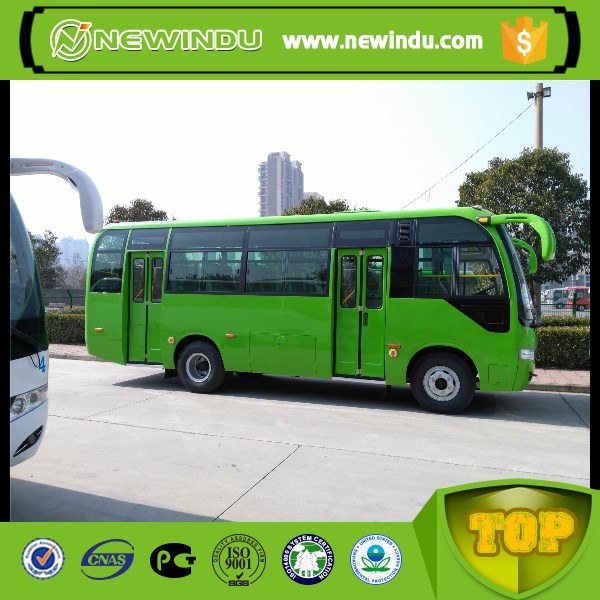

New Shaolin 35-38seats 8.6m Rear engine bus
Smart and magnificent design
This model is equipped flexible co
ntrol system with comfortable large space which provide aincomparable experience during driving. Insist the principle of cost efficient, spare parts commo
nality effectively reduce the use and maintenance cost.
TECHNICAL da
ta:
| ITEM | SLG6860C3GFR RHD/LHD |
| DIMENSION | LENGTH×WIDTH×HEIGHT(MM) | 8550×2400×3145 |
| Tread F(MM) | 1910 |
| Tread R(MM) | 1800 |
| WHEELbase (MM) | 3900 |
| WEIGHT | TOTAL MASS (KG) | 11185 |
| PERFORMANCE | MIN. VEHICLE TURNING CIRCLE (M) | 11 |
| MAX. SPEED (KM/H) | 90 |
| ANGLE (APP/DEP) | 13/10 |
| Max SEATS CAPACITY | 35-38 seats |
| frameWORK | REAR ENGINESTRAIGHT BEAM |
| ENGINE | MODEL | EURO3YC4G180-30/132KW
EURO3YC6J200-30/147KW |
| TYPE | 4 CYLINDER IN-LINE |
| RATED-POWER (KW/R/MIN) | 132KW |
| MAX. TORQUE (N.M) | 660 |
| EMISSION STANDARD | EURO3 |
| FUEL TYPE | DIESEL |
| CLUTCH | TYPE | SINGLE PLATE DRY CLUCH |
| CLUTCH BOOST | WITHPUMP |
| TRANSMISSION | Gearbox | 5 SPEED- MANUAL |
| ConTROL SYSTEMS | FLEXIBLESHAFT |
| FRONT AXLE | 3.5T |
| REAR AXLE | 8.0T |
| BRAKING SYSTEM | STEERING | POWER STEERING |
| SERVICE BRAKE | DUAL-CIRCUIT AIR BRAKING SYSTEM |
| PARKING BRAKE | Diaphragm spring brake |
| F/R BRAKING DIA. | Ф310 |
| F/R BRAKING SHOE Width | 120/150 |
| SUSPENSION STYLE | MULTIPLE-LEAF SPRING |
| TYRE | 8.25-20 |
| OIL TANK CAPACITY | 120L |
