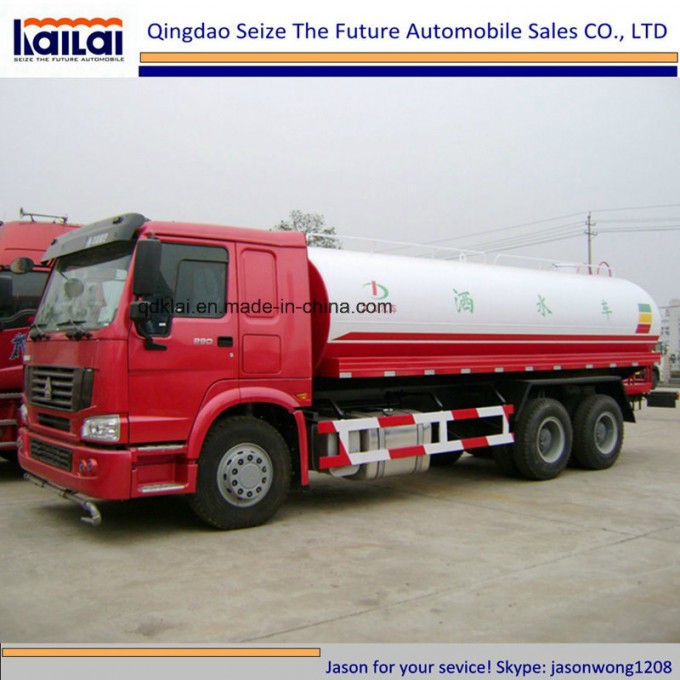

Sinotruk HOWO 20cbm Water Tank/Sprinkler Truck

Traction type: 6X4

Driving type: LHD (RHD is optioned)

Cabin: HOWO cab, flat head, double doors, tippable with A/C

Engine brand: Steyr technology (EURO II)

Engine model: WD615.69

Engine type: Diesel 4-stroke direct injection engine, 6-cylinder in-line

With water cooling, turbo-charging &intercooling

Displacement: 9.726 liters

Max. Output: 336HP@2200rpm

Max torque: 1300NM@1100-1600rpm

Bore/Stroke(mm): 126/130

Mean Position Speed: 9.53m/s

Compssion ratio: 15.5: 1

Specific fuel consumption: 198g/Kwh

Gear box: HW9 (HW18709)

Clutch: GF420 Spring type

Type: Single plate dry clutch, mechanically operating with air assisted

Steering: ZF8098

Front axle: HOWO front axle

Rear axle: Steyr strengthened axle (punching-welding axle housing, double Reduction driving axle, inter-wheel differential and differential lock)

Wheels and tyres: 12.00-20

Wheel base (mm): 4325+1350

Wheel track (front/rear) (mm): /1830

Vehicle dead weight: 11000

Overall dimensions (LxWxH)mm: 9800*2496*3048

Body(tank):

Tank Dimension: 6700x2340x1500mm

Capacity: 20 CBM (20000 L)

Material: Normal black Steel
Thickness of steel: 5mm

Service	Engineeroverseasavailable
Parts	Timelypartssupply
