Thin Film Ceramic Submounts

FOB Price:Call For Price

Discover our high-quality RF microwave millimeter wave thin film ceramic submounts designed for efficient signal transmission and high-frequency capabilities.Our submounts offer low loss and are perfect for applications requiring reliable and precise performance.Explore our range of submounts for your electronics needs.

󦌡Contact Now

Product Detail

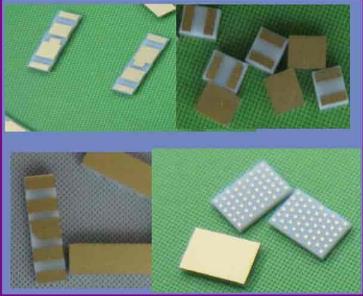

Thin Film Ceramic Submounts

Features

Wide thickness range: 0.10mm～1.50mm (0.004˝～0.060˝)
Thin film technology products
Ceramic substrate
Fit to gold wire bonding

Applications

Used for heat dissipation, support, gold bonding and current circuit short.
RF/Microwave/Millimeter wave communication
Optical communication
LED heat dissipation submountCustomer designed

Ceramic Submounts

RF Microwave Millimeter Wave Thin Film Ceramic Submounts

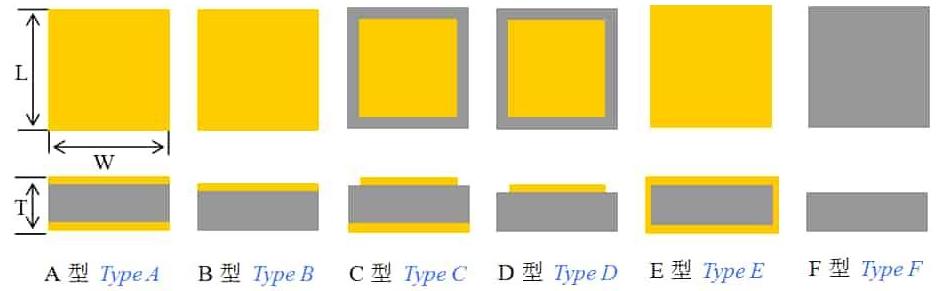

Submount Figuration

RF Microwave Millimeter Wave Thin Film Ceramic Submounts

Selection Guide

★TABLE 4-1 Length & width code Unit: mm (inch)

Size code	20	25	30	35	40	50
L	0.508±0.051（0.020±0.002）	0.635±0.051（0.025±0.002）	0.762±0.051（0.030±0.002）	0.889±0.051（0.035±0.002）	1.012±0.076（0.040±0.003）	1.270±0.076（0.050±0.003）
W	0.508±0.051（0.020±0.002）	0.635±0.051（0.025±0.002）	0.762±0.051（0.030±0.002）	0.889±0.051（0.035±0.002）	1.012±0.076（0.040±0.003）	1.270±0.076（0.050±0.003）

★TABLE 4-2 Thickness code Unit: mm (inch)

Size code	1	2	3	4	5	6
T	0.127±0.051（0.005±0.002）	0.254±0.051（0.010±0.002）	0.381±0.051（0.015±0.002）	0.508±0.051（0.020±0.002）	0.635±0.051（0.025±0.002）	Other

★ Customer designed resistors are available

Part Number Code

RF Microwave Millimeter Wave Thin Film Ceramic Submounts

Part	Signification	Detail
①	= subMount	M
②	Figuration Code	4.3
③	Length Code	TABLE 4-1
④	Materials Code	A	Alumina Al2O3
		B	Aluminum Nitride AlN
		N	Beryllia BeO
⑤	Width Code	TABLE 4-1
⑥	Thickness Code	TABLE 4-2
