Detailed Description
We supply 2 horse, 3 horse ,4 horse straight load and angle load float trailers.
Below is specifications for our 2 horse straight load float.
| Overall Dimension | 3925*2270*2590mm |
| Dimension of Body | 3075*1750*2230mm |
| Maximum Internal Dimension of Body | 3050*1700*2155mm |
| Chassis | hot galvanized RHS (3.5mm-4.0mm) |
| frame | hot galvanized RHS(2.5mm) |
| Body | Galvanized iron sheet(1.0mm-1.5mm) |
| Roof | glass fibre reinforced plastic 3075*1750mm |
| Wheel/Tyre | alloy wheels 185R14C |
| Spare Wheel | 1,mounted outside |
| Suspension | 5 leaf plate spring suspension(400KG/leaf),Independent |
| Axles | trailer axles |
| Brake System | one axle electric brake with break-away systems |
| Front Window | 1220*610 polycarbonate wind shield |
| Side Window | two rectangle(diamond) sliding windows,one each side |
| Side Door | one |
| Turn Light | two each side(except tail lights) |
| Tail Lights | one set |
| Horse Divider | soft cushion |
| Decorative Front panel | aluminium checkered plate 1.2mm |
| Mudguard | partialy decorate with aluminium checkered plate |
| Pedal Plate | decorate with aluminium checkered plate |
| External Tie Hooks | four, two each side |
| Jockey Wheel | swing-up jockey wheel |
| A kitchen | none |
| Roof Vents | two vents |
| Saddle Stents | none |
| Toolbox | none(optional) |
| Hay Rack | yes, horse bay |
| Tailgate(upper) | 2020*1065mm, pneumatic spring-loaded |
| Tailgate/Ramp Door | 2020*1210mm, pneumatic spring-loaded,10mm rubber cushion |
| Horse Area | 10mm rubber floor |
| Side Area inner | 6mm rubber cushion |
| Taillight Mounting Plate | aluminium checkered plate |

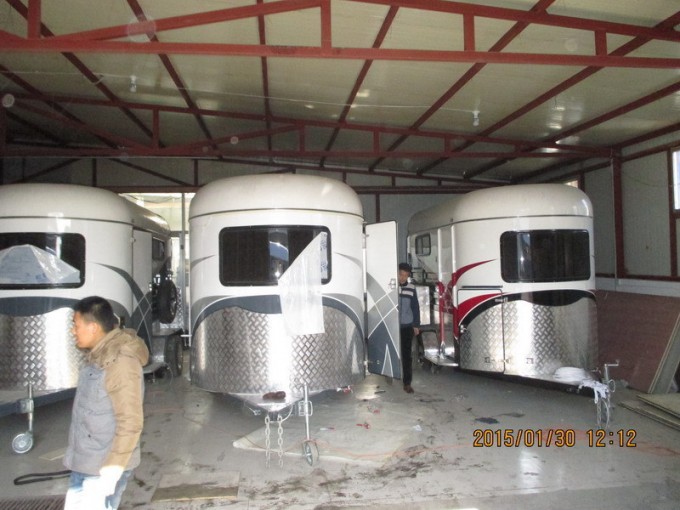

Product Image
