Good Quality Howo Water Fire Trucks (16000L)Technical parameter
| Models Overview | Howo fire truck is produced from Sino truck ZZ5347V4347D1 chassis, new car design, vision integrity; pump power takeoff , fire fighting synchronization with driving; large-capacity Tank ,long range fire artillery covered; one driver can finish fire fighting operations in cab. |
| Vehicle Model | fire truck | Chassis Model | HOWO ZZ5347V4347D1 |
| Drive type | 6×4,Left-hand drive | Fuel type | Diesel |
| Air conditioner | Air conditioner equipped | Emission
standard | Euro 3 |
| Transmission | 12 forward and 1 reverse | Brake | Air brake |
weight
(kg) | Rated load weight | 16000 | Overall dimensions (mm) | 9790×2496×3600 |
| Max in working order | 15550 | Body Dimensions(mm) | / |
| Maximum total weight | 32000 | Wheel base (mm) | 4325+1350 |
| Engine parameter | Engine Model |
| Engine type | Water-cooled inline six-cylinder supercharged intercooled diesel |
| Power/Displacement(KW/ml) | / | Engine producer | Sino truck diesel engine co.,ltd |
| Performance parameters | Max speed(km/h) | 90 | Tread (mm) | Front Axle | 2022 |
| Cab | Flat, double | Rear Axle | 1830/1830 |
| Cab seats | 2+4 | suspension length(mm) | Front suspension | 1500 |
| Number of tires | 10 and 1
Spare tyre | Rear suspension | 2450 |
| Tire specification | 12.00R20 | Driving angle
(°) | approach angle
| 16 |
| Spring plate number | 10/-,10/12 | Departure angle | 23 |
| Specific functions | Tank capacity(L) | 15000L |
| Fire Gun | Type:PS50 Water range:≥60m |
Fire pump
| Type:CB10/60 Flow:80L/s Pressure:1.0MPa |

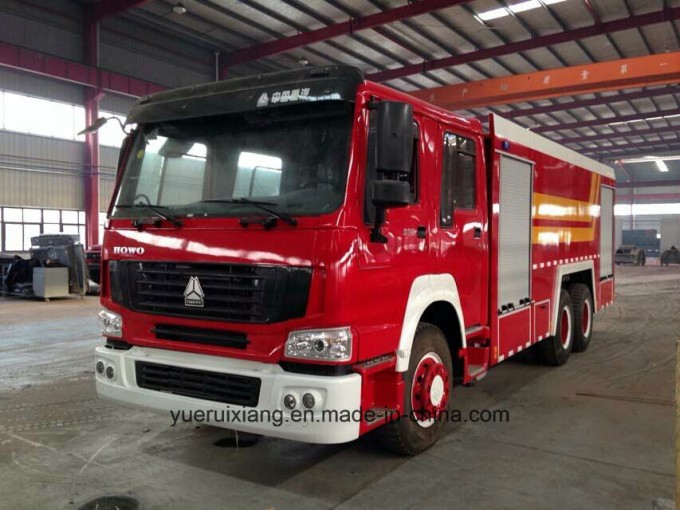

Product Image
