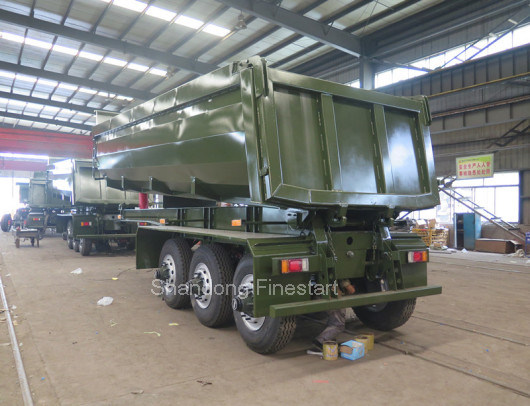

Rear Dump Semi-trailer 40TonDump Semi-trailers (Tippers)are trailers in which one end can be raised to allow the cargo (often building materials or Agricultural produce) to slide out the other end. Commonly, they are hinged at the rear and raised at the front, but side-unloading dump trailers also are used.

Product	30 cbm 3 axle tipper semi trailer
Tare Weight	about 12.5T
Dimension	outside dimension: 9250*2500*3850mm; inner dimension: 8500*2300*3850mm
Loading Capacity (T)	30CBM 40,000KG
Running mechanism	Axle			16T *3 axles, FUWA Brand
	Suspension			American type mechanical suspension for 3 axle
	Lifting system			Full set of Hyva hydraulic system
	Tire			triangle brand, 12.00R20, 12pieces
	Rim			8.0-20, 12pieces
	Spring			10 Layer heavy duty(10 layers X 90mm X 13mm)
	King pin			Brand		JOST brand
				Type		Bolts type
				Diameter		3.5inch
frame work	Heavy Duty Main beam Height: 500mm Material is High-tensile Steel, T700			Top plate		Thickness: 14mm
				Middle plate(double plate one side and three plate on the side )		Thickness: 6mm
				Down plate		Thickness: 16mm
	Side Plate			8mm High-tensile Steel, Q345
	Bottom plate			10mm High-tensile Steel, Q345
	Rear defence			Standard type
	Landing gear			Brand	JOST brand
				Type	C200T
Accessories	Brake system			Air tank	45L air tanks
				Brake chamber	6 double Spring brake chamber
				Emergency valve	WABCO
				ABS	Without
	Spare tyre carrier			2 set
	Light			LED light
	Voltage			24V
		Receptacle	7 ways (7 wire harness) and quick change type
		Tool box	One piece, 1.2m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
		Painting	Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
Trade term		Payment	30% of Total value as deposit by T/T after contract signed, 70% before delivery
		Shipment	Bybulk cargo carriers Ship

Different types of our semi-trailers


Detailsdeterminesuccessorfailure!


Transportation by bulk cargo ship or roro ship.


Payment Terms:
Payment Conditions:30% down payment by T/T and the balance payment should be T/T or irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.
Sincerely look forward to your cooperation !
