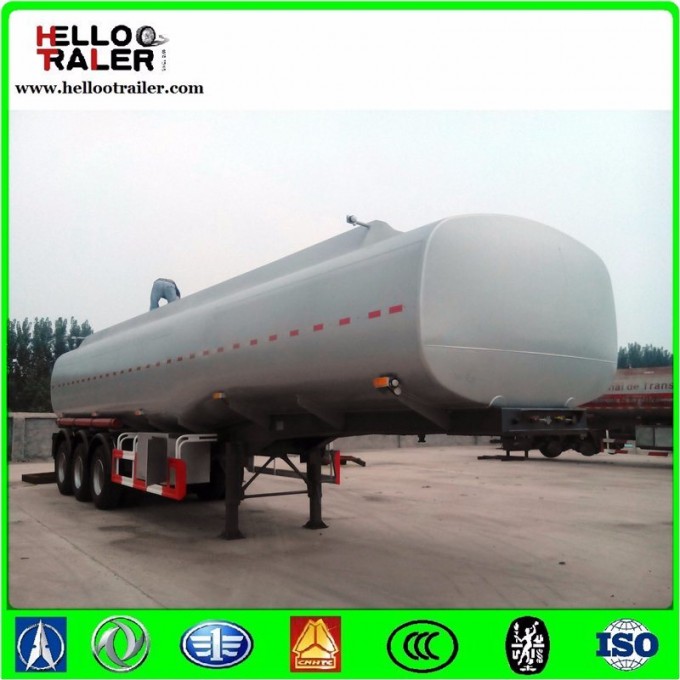

| Function | Fuel, petroleum, gasoline, etc |
| Overall dimension | 11600x2500x3440 mm |
| Volume | 40 m3 |
| Loading weight | 25000kg |
| Tank material | Tank body: 6.00mm; Dish end: 6.00mm; |
| Compartments | 3 compartment or optional |
| Bottom valve | 1 set per compartment, 4"pneumatic controlled valve |
| Discharge valve | 3 sets |
| Manhole | 3 set manhole with internal breath valve |
| Main beam | Carbon steelQ345B.The height 500 mm, upper plate 14mm,down plate16mm,middle plate8mm. |
| Traction pin | 2"(50mm) or 3.5''(90mm) optional |
| Land gear | Standard 28ton |
| Axle | 13ton* 3 axle BPW brand |
| Spring leaf | 90mm*13mm*10pcsor 100mm*12mm*12pcs |
| suspension | Mechanical suspension / Air suspension optional |
| Rim | 9.00-22.5 12pcs |
| Tire | Tubeless tire12R22.5or 315/80r22.5 or 385/68r22.5 |
| Tire quantity | 12 units |
| valve | WABCORE6relayvalve |
| BrakeChamber | T30/30+T30Springbrakechamber |
| Tool box | 1 unit 1m*0.5m*0.5m |
| Spare wheel carrier | 2 units |
| Marker lamp | LED type |
| Voltage | 24V |
| Receptacle | 7ways (7 wire harness) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosiveprime, 2 coats of final paint |
