Detailed Description
Brief Introduction :
The semi-trailer is used for lifting and carrying two 20ft co
ntainers or one 40ft co
ntainer in port, station and freight yard, the trailer's hydraulic systempower is from PTO in tractortruck,it can be operated both wireless remote co
ntrol and manual operation.
AfterSalesService
Answerandsolveyourquestionsandconsultwithin24hours
o
neyearguaranteea
boutthreekeyparts(axle,engine,transmission).Othersparepartscouldbesuppliedbycostprice.
Otherservices:
1.Alltrucksandtrailersarenewandbecustomizedtomeetallyourrequirement.
2.Roadtruck:Within12monthsorterminates60,000km,whicheverisreachedfirst;
3.Offroadtruck&engineeringtruck:Within6monthsorterminates30,000km,whicheverisreachedfirst;
4.Technicalsupportareprovided.Specification:
| item | unit | details |
| length | mm | 13900 |
| width | mm | 2500 |
| height | mm | 3990 |
| max lifting capacity | Kg | 36000 |
| working pssure | MPa | 25 |
| crane weight | Kg | 7000 |
| container size | Feet | 20,40 |
| crane characteristic | 1. Adopting imported electromagneticvalve
2. Two speed operation
3. Double pumps and dual circuit hydraulic system
4. Adopting intelligentized safety protection system.
|
| Side loader semi trailer main specifications | item | unit | details |
| Axle | | 3×13T |
| Tyre | 6 | 12.00R20,,12tires |
| Rim | 6 | 8.00×20 |
| Landing gear | 1 | J200 |
| Kingpin 3.5 | 1 | 90# |
| Containerlockset | 12 | |
| Leafspring | | ,255mm,
16×90/8
16Thickness*90Width *8Pieces |
| frame | | Q345 |
| Main beams | 2 | 500×140,14,14,8,Q345steel plate.
Carling500x140 ,Top flange plate14,bottom flange plate14, web plate 8,Q345 steel plate |
| PLCconsole | | Chinese/English |
| Electric System | | 24v,Seven core socket |

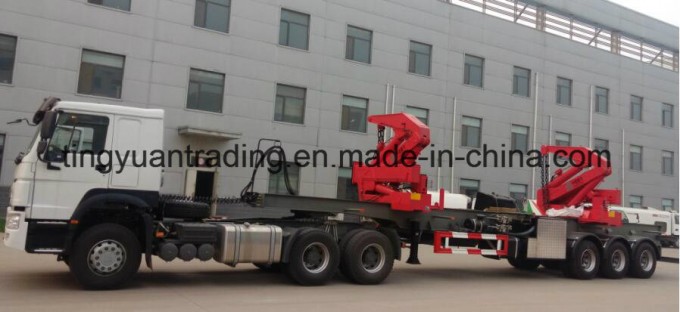

Product Image
