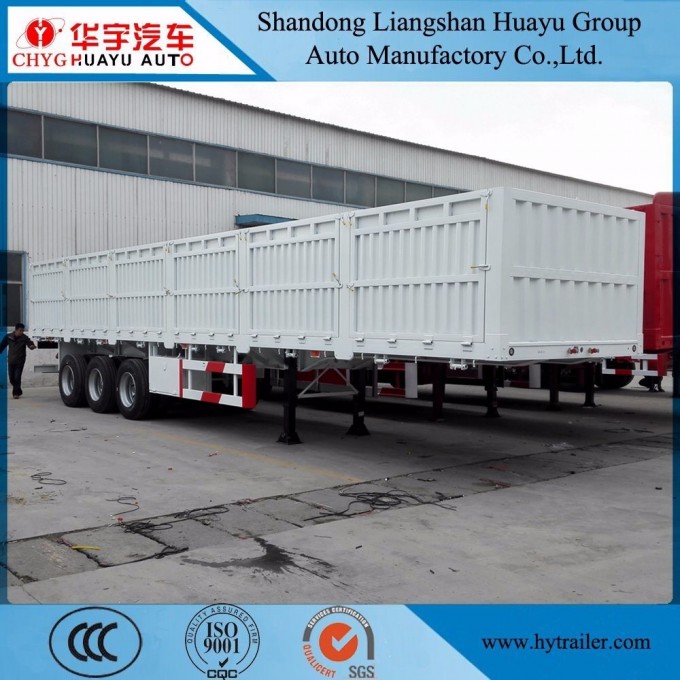

60ton 3 Axles Side Wall/Drop Side/Cargo/Side Board Truck Semi Trailer

3 Axles Side wall/Drop side/Cargo/Side board Truck Semi Trailer
Product Description

3 AXLE SIDE WALL SEMI TRAILER
PARAMETERS
Tare weight	8900kg
Payload	60-70Ton
Overall Size	13000mm*2500mm*2700mm
Inside Size	12700*2400
Main beam	Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-Arc processes. Upper flange 16mm;Bottom flange 18mm;Middle Flange 12mm , Height 500mm;
Side beam	16# channel steel(U-steel)
Cross member	10# channel steel(U-steel)
Floor	3mm checkered plate
Side wall	Height 1400mm thickness 2mm
Front board	Manufacture Standard Height 1400mm
Axle	FUWA brand 20T *3 axles
Suspension	Mechanical suspension American type
Leaf spring	Leaf spring 12pcs*120mm*16mm
Tyre	1200R20 *12units
Wheel rim	8.5-20 *12pcs
Kingpin	2"/3.5" bolt-in king pin Optional upon choice
Landing gear	28T two-speed, manual operating ,heavy duty landing gear
Braking system	RE6 relay valve ;T30/30 spring brake chamber;40L air tanks .Parking braking spring energy, compssed air operating on rear wheels
ABS	No. Optional upon choice
Electrical system	Voltage 24V, Receptacle 7 ways (7 wire harness),LED lights,One set 6-core standard cable.
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint,Use high-grade polyurethane paint,wax spray.
Twist lock	12units or As clients order
Accessories	One standard tool box.One spare wheel carrier chained mode.One crank.One shaft head wrench.Rope hook casting model.Tight rope device *10units per side.
Other	According to requirtments
Date of delivery	25 workdays after we received 30% of contract value T/T down payment.
Package	3sets together or 40HQ load 2 sets.

ProductFeaturesAdvanced technology:Major parts and components of the trailer are processed by advanced equipments. Longitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.Chassis:To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space frame structure of high-strength steel, 16Mn steel welded longitudinal beam and integrated cross member.Axle:High performance domestic and imported axles with ABS system optionally available can significantly increase driving safety.Suspension:High strength and impact resistance new type suspension is adopted with patented rod connecting design. It guarantees performance in rough road condition and longer service life.Tool Box:Large capacity water-proof detachable tool box.Hot-rolled structural steelwelded 16Mn steel longitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.Tested and proven structureof cargo box is constructed with profiled steel from, corrugated plate and mold pssed steel stake.Reliable dual circuit air brakewith quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.Our Advantage
1. Variety of products, including all kinds of light trucks, heavy duty trucks, trailers and special vehicles.
2. High quality and competitive price, technology absorbed from the top companies in the world .
3. Quick response to your inquiry, we have special sales team for different markets, like Asia,Africa,Europe,America.
4. Flexible payment terms,we can accept T/T,L/C and installment.
5. Rich experience and stong production capacity, 20 years experience and 20000 units annual output.
