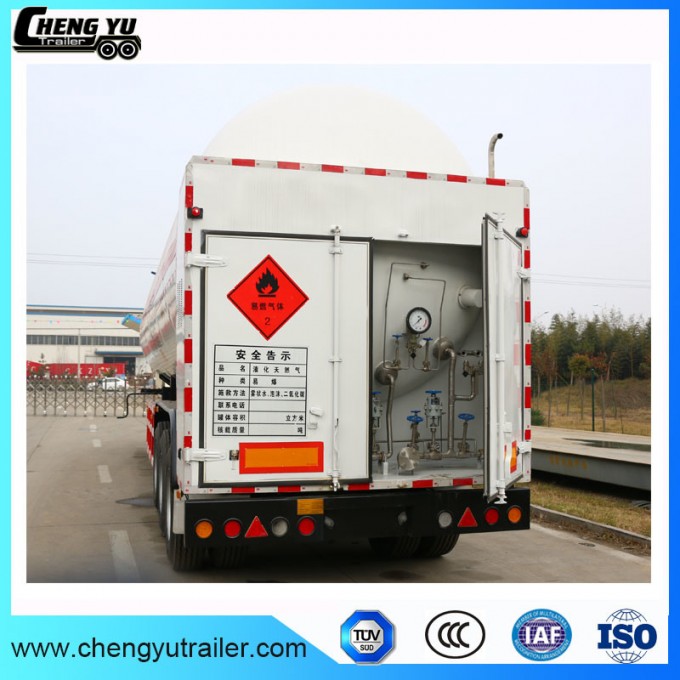

3 axles LNG Tank Truck Trailer LNG Tank Trailer
Specifications
| Standard | TSG R0005-2011 Steel pssure vessels |
| JB/T4738-2007 Cryogenic liquid tanker |
| Pressure vessel safety technology and inspection procedures |
| Liquefied gas tanker safety monitoring procedures |
| Semi Trailer | Model No. | SKW9400GDY |
| Tare Weight | 19833KG |
| Max Payload | 20167KG |
| Total Weight | 40000KG |
| Wheel base | 6900+1320+1320 |
| Tire | 12R22.5 12PR |
| Axle Payload | Front | 16100KG |
| Rear | 23900KG |
| Speed Limit | Flat | 80km/h |
| Turn | 20km/h |
| Front/Rear Suspension | -/1516mm |
| Approach/Departure Angle | -/21° |
| Maximum Angle | ≥23 |
| Dimensions (length*width*height) | 13000x2500x3950mm |
| Leaf Spring | -10/10/10/10 |
| Transport Type | Road |
| Emergency Cut-off Device | Model | Air phase | DJQ-40B(exhaust)/DJQ-32B(pssurize) |
|
|
|
| Liquid phase | DJQ-50B |
|
| Specification | Air phase | DN40/DN32 |
| Liquid phase | DN50 |
|
| Type | ZCRB &Low temperature globe valve | |
| Operating Mode | Air Control |
| Cut-off Time | ≤8S |
| Melted Temperature | 70±5ºC |
| Liquid Indicator | Model | MZC-A |
| Type | Combination of differential pssure type |
| Nominal Pressure | 4MPa |
| Testing Range | 0~2500mm |
| Accuracy | 2.5 |
| Tank Body | Parameter | Inner container | Shell |
| Service Life | 10 Years |
| Medium | Liquefied natural gas(LNG) |
| Medium Property | Flammable |
| Working temperature | -162°C | -19-50ºC |
| Design temperature | -196ºC | 50°C |
| Working pssure | ≤0.64MPa | -0.1MPa |
| Design pssure | 0.64MPa | -0.1MPa |
| Corrosion allowance | 0.0mm | 1.0mm |
| Material of pssure part | S30408 | Q345R |
| Joint Efficiency | 1.0 | 0.85 |
| Volume | 52.6m³ | 5.66(interlayer) |
| Medium Density | 426kg/m³ | |
| Rated full rate | 90% | |
| Pneumatic Test Pressure | 0.86MPa(before set) | |
| Leakage Test Pressure | 0.64MPa | Helium leakage test |
| Insulation thickness/Material | 25/Aluminum Foil+Absorbent fiber paper |
| Safety Valve(Rupture Disc) | Model | DAH-25 |
| Type | Full Open |
| Nominal Pressure | 4.0MPa |
| Diameter of Valve Seat Throat | 20mm |
| Set Pressure | 0.69MPa |
| Rated Relieving Pressure | ≤0.76MPa |
| Reseating Pressure | ≥0.63 |
| Pressure Gauge | Model | YN100 |
| Accuracy | 1.6 |
| Testing Range | 0~1.6MPa |
| Connection Type | M20x1.5 |
Product Features
1. The vehicle is used to transport liquefied natural gas (LNG) specially.
2. It has been in liquefied petroleum gas transportation research for 20 years.
3. The landing gear use JOST, FUWA, but Chinese brand spare parts is also available.
Product Details
Packing
Nude and waxed by bulk cargo ship or Ro-Ro ship or flet deck, and Containers..
We use best transportation solution to save your sea freight cost.
Our Factory
Chengyu Trailer belo
ngs to Chengyu Group which is one of the biggest manufacturers for all kinds of trucks, especially for the semi trailers and parts in shandong. located in the famous "Water Margin" hometown -- The "China Special Vehicle Production ba
se".Chengyu Group has more than500 Staffs, including one 20 Years'experienced engineering technicians team. With an annual output production capacity of 20,000 sets of special purpose vehicles, 100,000 pieces of semi trailer axles50,000 sets suspensions.
Chengyu Trailer is the special vehicle manufacturer, we specialized in many kinds of trailers, special vehicle and various truck parts, such as tank trailer, flatbed semi trailer, skeleton semi trailer, low bed semi trailer, dumping semi trailer, oil tanker semi trailer, bulk cement semi trailer and so on."Chengyu" brand axle, air Suspension, landing gear and other parts are also popular used by all over the world customers. Also we can customized production for our customers.
Chengyu relies on the world first-class production line, professio
nal R&D, technical team and skilled workers has won the IS09001: 2000, ISO/TS16949:2009 and won the title of Brand-Name Products In Shandong Province and USA DOT Certificates.
FAQ
1. Can Ihave samples of this type of trailer to test the quality?
Yes, you can buy any sample to test the quality,our MOQ is 1unit.
2. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is within 30 workdays after we received your ppayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
3. Can you supply some quick-wear trailer parts?
Yes, we can supplythe trailer parts as your request,such as traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings, etc
4. What's the payment method?
30% TT before produce and 70% TT before shipment .
