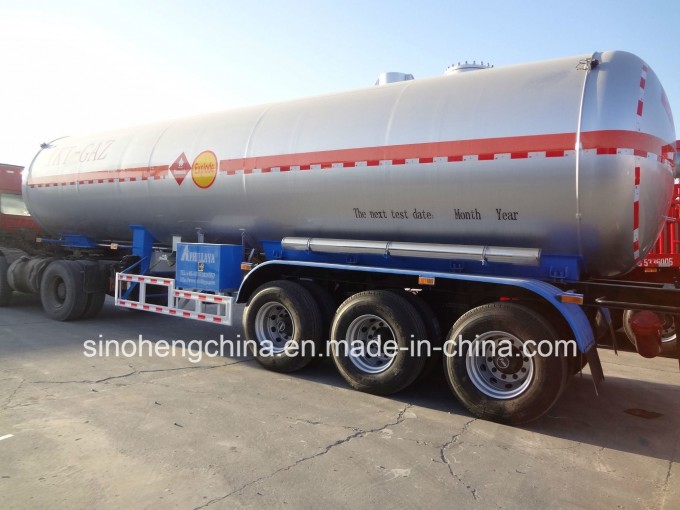

China 3axles 57.5m3 Propylene Tanker Semi Trailer for Sales
57.5m3 Propylene Tank Truck / Semi Trailer / tanker trailer / tanker transport semi trailer / vehicle tanker trailer
ThePropylene transport semi trailer is made of steel, is light duty type. With high capacity, we profesio
nal product semi trailers, we can product and design them, according to requirements of customer.
Technical Parameters:
| Tanker Essential Information |
| Vehicle model:HCH9403GYQB |
| 1 | Dimensions(length*width*height) | (13000×2500×4000*13)mm |
| 2 | Estimated Tare Weight | 15275KG |
| 3 | Payload | 24725KG |
| 4 | Total Weight | 40000KG |
| Shell Of Tanker |
| 1 | Filling medium | Propylene liquid gas |
| 2 | Fluid property | flammable and explosive |
| 4 | Design temperature | to 50ºC |
| 5 | Design pssure | 1.95MPa |
| 6 | Corrosion allowance | 1.0mm |
| 7 | Major materials of bearing pssure | Tanker body : Q345R , 13mm :Q345R ,13mm |
| End plate : Q345R , 8mm Q345R , 8mm |
| Main Beam : AG700 high-strength steel AG700 |
| 8 | Filling weight per volume | |
| 9 | Maximum filling weight | |
| 10 | Compartments | One |
| 11 | Baffle inside the tank | 7-washboard,Q235A thickness is 4mm 7 Q235A 4 |
| 12 | Shape | Cylindrical ; sphere head , |
| Detection |
| 1 | Heat treatment | overall heat treatment and eliminate stress in oven |
| 2 | Flaw detection | 100% Flaw detection |
| 3 | Hydrostatic test | 2.54MPa (25.908 Kg/cm2) |
| 4 | Magnaflux | Aim at welding place flaw detection can not cover |
| Manhole (As customer's requirement ) |
| 1 | Quantity | 1 ; On top |
| Safety Valve ( ) |
| 1 | Quantity | One |
| 2 | Location | On the top of tanker ; |
| 3 | Model | A412F-25-22 DN100 |
| 4 | Type | Inner full lift |
| 5 | Throat diameter | 68mm |
| 6 | Nominal pssure | 2.5Mpa |
| 7 | Size | As customer's requirement |
| 8 | Opening pssure | 2.05Mpa |
| 9 | Discharge pssure | ≤2.34Mpa |
| 10 | Reseating pssure | ≤0.9 time of opening pssure |
| 11 | Design Pressure | 1.95 MPA (19.89 Kg/cm2) |
| | |
| Liquidometer (As customer's requirement ) |
| 1 | Quantity and Model | 1 |
| 2 | Location | On rear dish end of tanker |
| 3 | Type | Rotary Roll tube |
| 4 | Indicated altitude | 50-2472
|
| 5 | Precision | 2.5 Grade 2.5 |
| Emergency cut-off valve |
| 1 | Model | QGJ43F-25-7/8 |
| 2 | Nominal diameter | DN50(Liquid phase);
DN25(Gas phase) |
| 3 | Nominal pssure | 2.5Mpa |
| 4 | Operation mode | mechanical type |
| 5 | Close time | ≤10S |
| 6 | Melting switch temperature | 75±5 |
|
| Valve and pipe Detail (As customer's requirement ) |
|
| Running System |
| 1 | Axles | 3 | 13 TON FUWA Axles 13 |
| 2 | Suspension system | 1 | Leaf spring suspension |
| 3 | Wheel rim | 12 | 9.0*22.5 |
| 4 | Tyre | 12 | Brand : double coin 12R TUBELESS 12R |
| 5 | Wheelbase(mm) | | 6830+1310+1310 |
| 6 | Kingpin | 1 | 3.5",bolt on ,in rubbing plate 9.0 |
| 7 | Landing legs | 2 | 28T FUWA 28 |
| Pneumatic Brake System |
| 1 | Spring brake chamber | 6 | |
| 2 | Air connector | 2 | |
| 3 | Relay Valve | 1 | |
| 4 | ABS | 1 | |
| Electronical System |
| 1 | 7-Pin Socket 7 | 1 | 24V 7-pin socket 24V7 |
| 2 | LED Lamp LED | 1 | All kinds of lamp |
| 3 | Cable | 1 | Stander cable |
| Accessories |
| 1 | Small Tool box | 1 | |
| 2 | Wheel carrier | 1 | |
| 3 | Fire extinguisher | 2 | 8KG With red box 8 |
| 4 | Cabinet | 1 | |
| 5 | Plastic fender | 6 | |
| 6 | Static conductive belt | 1 | |
| 7 | Impeller blasting | 1 | Completely |
| 8 | Paint | 1 | As customer requirements |
Tank Trailer Details :
Our Semi Trailers :
Packaging &Delivery:
Packaging Details: Naked, maxed before shippment
Delivery Detail: 25 days after diposit
