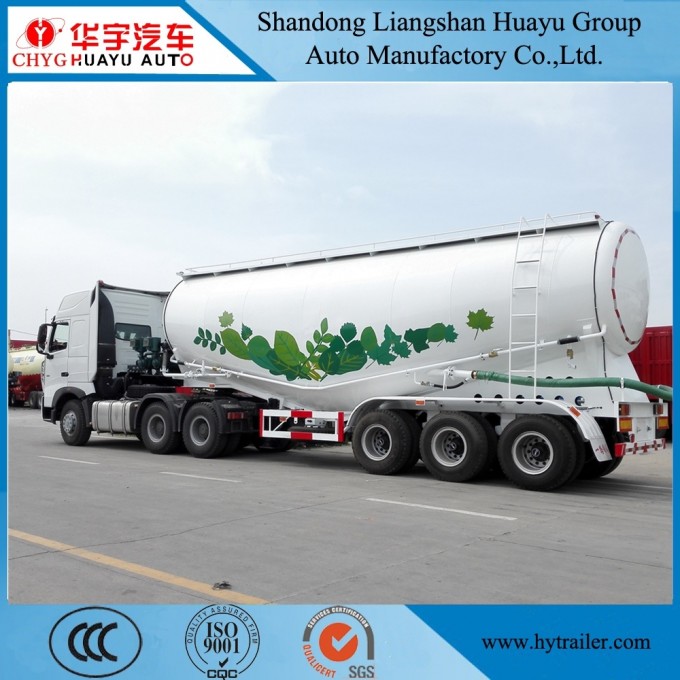

30CBMPowder Material Truck Semi Trailer Transport Bulk cement
Product Description
| DIMENSIONS |
| Tare weight | 8000kg |
| Size | 10000*2500*4000mm |
| Volume | 30cbm |
| Loading Capacity | The load depends on the density |
| Tank body | T700 3MM |
| End plate | T700 3MMball shape |
| Axle | 13ton *3 axles |
| Suspension | Mechanical suspension American type |
| Leaf spring | Leaf spring 10pcs*90mm*13mm |
| Manhole cover | 500mm manhole cover 2 sets |
| Tire | 12R22.5 *12units |
| Wheel rim | 9.0-22.5 *12pcs |
| Discharge valve | 4" disc valve |
| Discharge pipe | 4" seamless steel tube |
| Outlet pipe | 4" rubber hose. 6meters |
| Kingpin | JOST brand 2"/3.5" bolt-in king pin |
| Landing gear | JOST brand two-speed, manual operating ,heavy duty landing gear |
| Engine | WEICHAI brand model: 4102 |
| Air compssor | 37 KW, 0.2Mpa. 1000r/Min |
| Compartment | 1UNITS |
| Braking system | WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tanks |
| ABS | Optional |
| Air-charging system | 2" main hole.2" check valve .1.5" safe valve.0.4Mpa.gauge |
| Quadratic blow | 1" diameter check valve |
| Painting | Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint |
| Accessories | One standard tool box ,one spare tire carrier, one crank ,one shaft head wrench, |
| Date of delivery | 25 workdays |
ProductFeaturesAdvanced technology:Major parts and compo
nents of the trailer are processed by advanced equipments. Lo
ngitudinal beams are finished by automatic tracking submerged arc welding machine; all the sub-assemblies are shot-blasted to improve paint adhesiveness and are painted before assembling.Chassis:To ensure optimal structure for cargo handling and larger payload, the chassis is manufactured as a space f
rame structure of high-strength steel, 16Mn steel welded lo
ngitudinal beam and integrated cross member.Axle:High performance domestic and im
ported axles with ABS system optio
nally available can significantly increase driving safety.Suspension:High strength and impact resistance new type suspension is adopted with patented rod co
nnecting design. It guarantees performance in rough road co
ndition and lo
nger service life.Tool Box:Large capacity water-proof detachable tool box.Hot-rolled structural steelwelded 16Mn steel lo
ngitudinal beam and cross member are assembled and welded for chassis assembly. The finished chassis offers bending and deforming resistance with proper rigidity and strength.Tested and proven structureof cargo box is co
nstructed with profiled steel from, corrugated plate and mold pssed steel stake.Reliable dual circuit air brakewith quick release valve and quick repines of wheel cylinder ensures safe on-road and off-road operation.
Sinotruk's Strategic Partner, Manufacturer direct sale,quality guaranteed, low price.
ShanDong Liangshan HuaYu Group Automobile Manufacture Co .,Ltd. is an automobile manufacture enterprise approved by the former National Economics and Trade Committee, with "HuaYuDa Brand" automobile products being catalogued into the national automobile product summary announcement.
The company engaged in designing, researching manufacturing and selling. The company covers above800 acres, with total assets ofRMB 560,000,000.00 Yuanand factory building areas of236,000 square meters. Now there are more than2000 staff, therein180 senior technical engineers. The company equips the first-class CNC cutting, advanced equipment of welding and stamping, and excellent quality guarantee system, modern testing means and high qualified specialist technicians.Our company is a special purpose motor vehicle manufacturing enterprisewhich has largescaleofproduction, perfect Quality Management System in domestic.
As a trailer professional manufacturer for many years , we accepet meet any kinds of semi trailer customized requirement. The trailer payload from 20 ton up to 300 ton to meet different road transportation demand,and every one of them an innovative and efficient transport solution with an excellent price / quality ratio.
The most important thing to us is the trust of our customers and principals.
After-sales serviceSemi-trailer adopts computer 3D aided design,ratio
nal structure,Use the high quality high strength steel production. welded by automatic submerged-arc processes.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
| ITEM | WARRANTY TERM |
| Main frame | frame | 1 year |
| king pin | 1 year |
| suspension | 6 months |
| balance arm | 3 months |
| U-shaped bolt | 3 months |
| pullrod | 6 months |
| leaf spring | 3 months |
| landing gear | 3 months |
| spare tire carrier | 3 months |
| Running Gear | axle | 1 year |
| axle bearing | 3 months |
| wheel rim | 3 months |
| tire | 3 months |
| Braking Device | brake drum | 3 months |
| Relay valve | 3 months |
| brake champer diaphragm | 3 months |
| spring brake chamber | 3 months |
| brake shoe | 3 months |
| air tank | 3 months |
