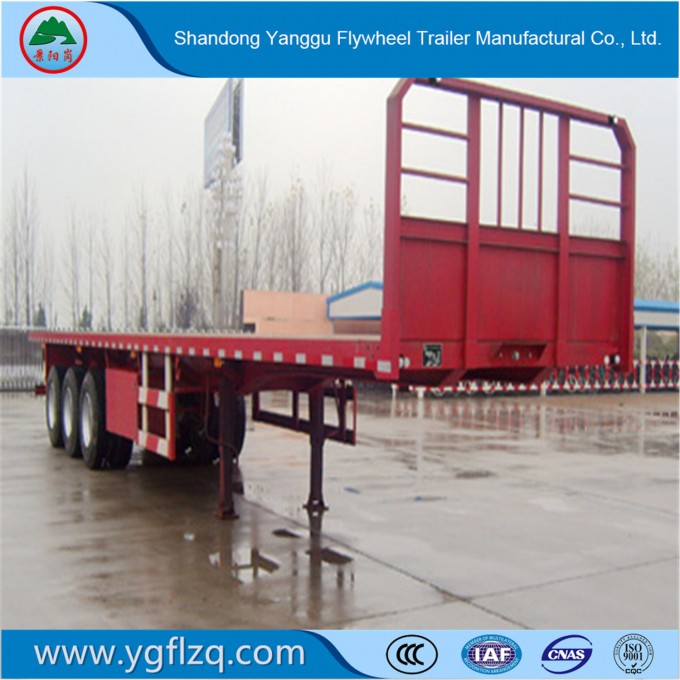

New Customed 3 Fuhua/BPW Axle ABS Braking Carbon Steel Flatbed Semi Truck Trailer for Sale

1. Product Description
Flatbed Container Semi Trailer


2.Specification

Tare Weight	about 6.5-10T
Dimension	13000×3000×1600mm (adjustable)
Loading Capacity	30T-80T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension(Germany Type or America Type) Or Air suspension(China brand or BPW brand)
Spring leaf	90(Width)mm×13(Thickness)mm×10(Layer) or 100(Width)mm×12(Thickness)mm×12(Layer)
King pin	JOST brand 2.0 or 3.5inchbolts type or Welding type
Support leg	JOST brand C200T or China brand 28T
Main beam	Height: 450mm-520mm, upper plate thickness is 14mm-25mm, middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel.
Side beam	16mm-25mm channel steel (Material is Q235 carbon steel)
Ladder	Manual or Hydraulic type
Gooseneck	You can choose the type
Brake chamber	WABCO RE 6relay valve; T30/30+T30spring brake chamber;2 pieces of45L air tanks
ABS	Optional
Twist Locks	Four, Eight or Twelve pieces(Lifting type or Twist Screw Type)
Valve	WABCO valve
Light	LED light
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece, 1m×0.5m×0.5m(Size can bechosenfreely)(equipped with 1unittyrespanner,1 unit gudgeon sleeve and1 unit cranking bar)
Painting	Complete Chassis sand blasting to clean rust, 1coat of anticorrosive prime, 2coats of final paints.
Shipping Terms	By bulk cargocarrier, ROROor 40HQ container

3. Main products


4. Certification
5. Delivery
Packing or Container Packing


6. COMPANY PROFILE
1. Shandong yangu flywheel trailer manufacturing co.,Ltd is located in yanggu county shandong province, the company is newly established in 2004 year. Good industial atmosphere provides the condition to produce the high quality products. The company is commited to provide high-quality special loading truck trailer and tank for auto refitting enterprises.
2. The company have passed ISO9001 the international quality managerment sytem certification and formed acomplete quality assurance system. It processes strict quality assurance in product design, procurement of raw materials, component parts into the plant, manufacturing testing, site installation and commissioning and after- sales service.


7. Our Service
1.based on the customer's country roads situation, transport goods and loading weight requirment,provide semi-trailer solution.

2. Have Experienced sales and engineer support every requirment.

3. Customer's design is available for certain products(OEM).

4. Spare parts for all types of semi-trailer with discount price.

5. Offerfree spare partsfor every customer.

8. FAQ
1.Does your company is afactory or trade company?
We have afactory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.

2. Whats the qualify assurance we provided and how do we control quality?
Established aprocedure to check products at all stages of the manufacturing process,raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed aprocedure which identifies the inspection and test status of all items at all stages of the manufacturing process.

3. What's your MOQ?
One unit trailer or truck.

4. How do you transport the semi trailers and trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
bulk or container.

5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!

9. Contact detailsSales Manager:Carey SuiShandong Yanggu Flywheel Trailer Manufacturing Co., Ltd
SINOTRUCK HOWO SALES CO.,LTD
Liaocheng Zhenda International Trade Co., Ltd
Address :Liaocheng,Shandong Province,China


You can add my skype or whatsapp for our easy chat!

10. Welcome your inquiry and visit our factory.
