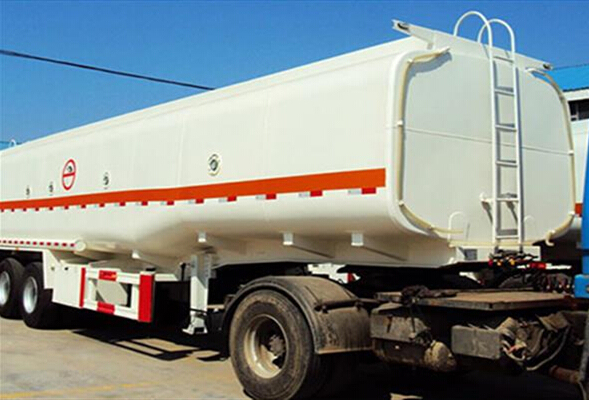

| Tank Body |
| Shape | Round or Square |
| Dimension | 12000mm×2490mm×3990mm ( The exact size depends on the final design.) |
| Tare weight | about 8000kg-12800kg |
| Total Volume ( m3 ) | 25m³ -60 m³ |
| Tanker Body Material | 5mm or 6mm/ Q235 carbon steel |
| End Plate | 5mm or 6mm /Q235 carbon steel |
| Manhole Cover | Carbon steel or aluminum alloy API manhole cover, 500mm(diameter) |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Optional |
| Discharging Pipe | 4" rubber hose, 2 pcs , 6m/each |
| Cat Walk | With (Common model or special design) |
| Chassis |
| Main Beams | Welded design or Special design I beam, connected by bolts and nutsQ345 carbon steel material |
| Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
| Landing Gear | JOST (D200T ) or CHINA BRAND 28T |
| King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension/Germany or America type /air suspension |
| Leaf Spring | 90(W)mm×13(Thickness)mm×10layers or 10mm×12mm×12 /without |
| Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber (TKL brand ); one piece of 45L air tank |
| Rim | 9.00-22.5/8.00-20/8.5-20 China Brand |
| Tire | /12.00R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
| ABS | Optional |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats. |
| Accessories | One standard tool box |
| Shipping Terms | By bulk cargo ,RORO or 40HQ Containers |
