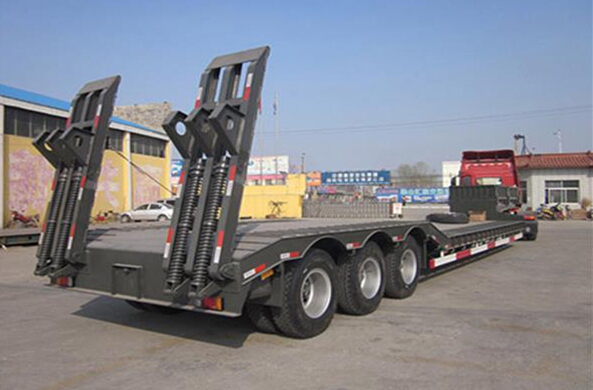

Low Bed Semi Trailer

Tare Weight	about 8.5-13T
Dimension	13000mm ×3000mm-3500mm×1650mm (Size can be tailored to suit individual needs.)
Loading Capacity (T)	40T-100T
Axle	13 T/16T, FUWA /BPW /Huajing Brand
Rim	6.5-20/7.5-20/8.00-20/8.5-20 (specially intended for oversea market)
Tire	8.25R20/10.00R20/11.00R20/12.00R20
Suspension	Mechanical suspension (German or American type) or air suspension (Chinese brand or BPW brand ) (specially intended for oversea market)
Spring Leaf	90(W)mm×13(Thickness)mm×10 layers or 100mm×12mm×12layers (specially intended for oversea market)
King Pin	JOST brand 2.0 or 3.5inch (bolted or welded type)
Landing Gear (support leg)	JOST brand D200T or Chinese brand 28Tons (Double speed)
Main Beam	Height: 450mm-520mm Upper plate: 14mm-25mm Middle plate: 8mm-12mm Lower plate: 16mm-25mm; Material: Q345B Steel
Side Beam	16mm -30mm steel channel (Material: Q235steel)
Bottom Platform	3-6mm thick checkered plate
Ladder	Manually operated or hydraulic type
Gooseneck	Optional
Brake Chamber	WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand); 45L air tanks (Specially intended for oversea markets)
ABS	Optional
Twist Locks	Four ,Eight or Twelve pieces (lifting type or screw type)
Valve	WABCO valve
Light	LED light(Specially intended for oversea markets)
Voltage	24V
Socket(Receptacle)	7-pin Socket (for 7 wire harness)
Tool Box	1m × 0.5m × 0.5m (The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs.)
Semi Trailer Surface Coating	Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layers of top coats.
Shipping Terms	Transported by the bulk carrier in an RORO or 40HQ container.

Wuhan Yueruixiang Technology Co., Ltd is a professional supplier of construction machinery and agriculture machinery, We are located in Wuhan City, Hubei province, China.

Our main products includes Construction machinery: Wheel loader, skid steer loader, Forklift, road roller, bulldozer, motor grader, excavator, plate compactor, rammer, concrete cutter, ect,

And Agriculture machinery: Tractors and farming implements(backhoe, front end loader, wood chipper, rotary riller, lawn mower, plough, disc harrow, planter, ect) which wins the high approval in European, South and North America, Africa, Middle East and Asia due to our high quality and exceptional after-sale service. The reliable quality source from the strict quality control system.

At psent, some of products have passsed CE certification and ISO9001 quality system and in recent years the company has introduced advanced sequence equipment and technology from America, Germany, which assure the level of technique and measure of detect of the company to reach the international advanced level and form the benigh cycle innovation system of researching, producting, sale and developing.

Welcome to contact with us at any time.
