Detailed Description

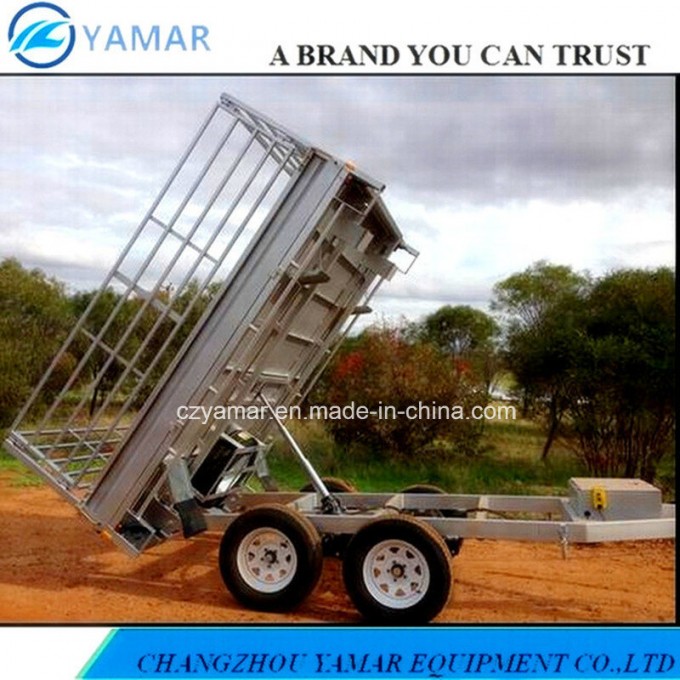

· 8ft. x 5ft. Hot Dipped Galvanized Hydraulic dump Trailer With Cage
· 2.5mm checker steel plate Floor & Side walls & Doors
· 4-Stage Hydraulic Tipping Ram with 3500 KG Tipping Capacity
· Solid Axle Rated At 2000kg Each
·12V MF Battery come with the hydraulic system
·Come with Heavy Duty jockey wheel and manual parking brake
·Lockable tool box for hydraulic system
·Maintenance free LED indicators
·Opening front and rear tailgate
·Tie-down rails on both sides
Size Options
| Size | Model No. | Box Inner Size | Loading Weight |
| 8x5ft. | YM-85HTT | 2440x1525x300mm | 3000KG |
| 9x5ft. | YM-95HTT | 2745x1525x300mm | 3000KG |
| 9x6ft. | YM-96HTT | 2745X1800x300mm | 3000KG |
| 10x5ft. | YM-105HTT | 3000x1525x300mm | 3000KG |
| 10x6ft. | YM-106HTT | 3000x1800x300mm | 3000KG |
| 12x6ft. | YM-126HTT | 3600x1800x300mm | 3000KG |
Key Specs.
| Model No. | YM-85HTT01 |
| Deck Size | 2440x1525x300mm |
| DrawBar | 150x50x4mm. |
| Lower Chassis | 100x50x4mm. |
| Upper Chassis | 100x50x4mm. |
| Floor&Side Panles | 2.5mm chequre plate1.5mm ribbed walls & gates |
| Axles | 50x50mm square solid electric brake |
| Spring | 7 Leaf Heavy Duty Springs with Rocker Roller |
| Wheels | 1225/75R15 with white powder coated rims |
| Jockey Wheel | 6inch top wind heavy duty jockey wheel. |
| Coupler | 50mm AU standard coupling, 1 7/8 New Zealand standard coupling, EU standard coupling |
| Lights | LED Lights with E-mark and DOT certificated |
| Tipper Sys. | 3500KG 4 stage hydraulic ram with 12V, 1.5KW Battery powered hydraulic system |
