Detailed Description

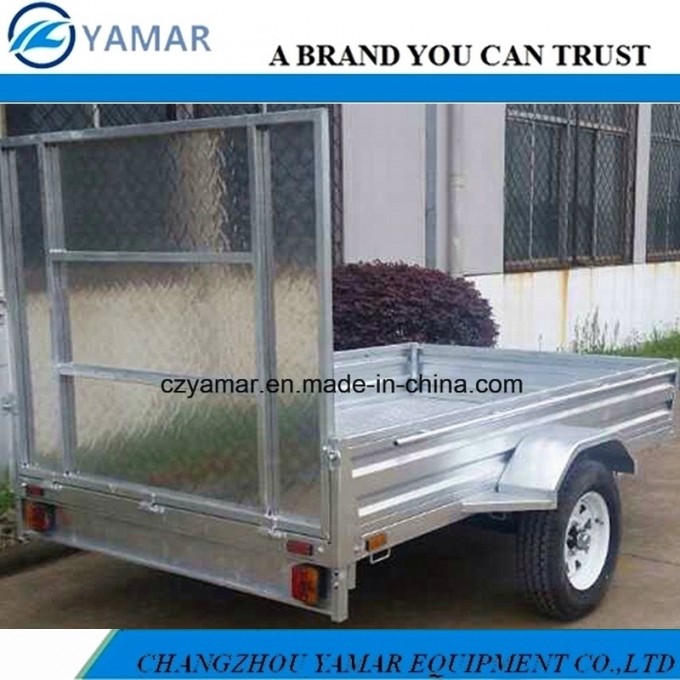

·Hot dipped galvanized Box Trailer With Ramp
· 1200mm Length Drawbar
Features & Standards
| Loading Capacity | 750KG |
| frame steel | chassis & draw bar (70x50x2.5mm); axle (40x40mm round solid axle) |
| Floor | 1.5mm ribbed zinc steel deck riveted on the chassis |
| Tie-down rail& Mudguard step | built on both sides |
| Tire | 165/70R13 with white painted 5 studs wheel |
| Springs | 5 leaf springs |
| Light & reflectors | E-mark/ ADR certification LED light |
| Coupler | 1-7/8, 2" or 50mm according to buyer's local standards |
Options:
| Structure | Fully welded or Bolted |
| Spare tires | 165/70R13 (tire with rim) ;165/70R14; |
| Jockey wheel | 6" ,750 or 1000lbs top swing style |
| Deck | 2.5mm chequer plate deck |
| Mesh Cage | 600/900mm high cage |
Size Options.
| Size | Chassis | Inner Box Size | GVW |
| 6x4 | 1880x1235mm | 1800x1235x300mm | 750KG |
| 7x4 | 2180x1235mm | 2100x1235x300mm | 750KG |
| 7x5 | 2180x1535mm | 2100x1535x300mm | 750KG |
| 8x5 | 2480x1535mm | 2400x1535x300mm | 750KG |
