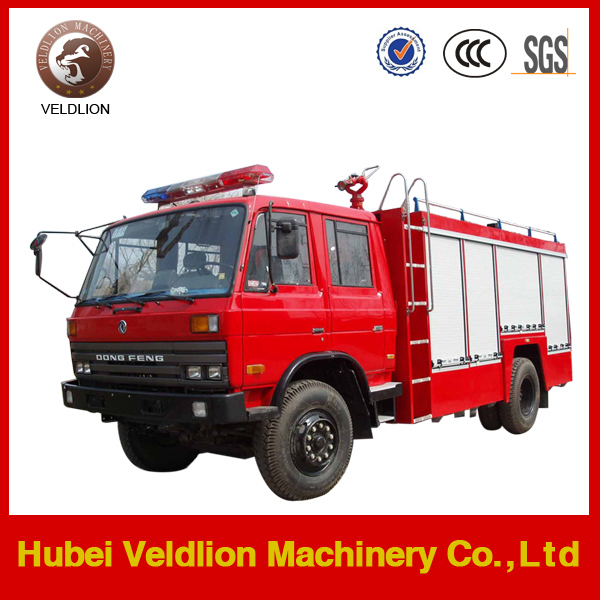

QUICK DETAILS OF 7000liter fire truck
(1) Water / Foam tank fire fighting trucks
(2) Gross weight: 14900kg
(3) Water tanker volume: 7000 litres/ 1800 gallons
(4) Fire pump: CB10/40
(5) Fire monitor: PL32
We can offer 4X2, 6X4, Dongfeng, Sinotruck, FOTON, SHACAN, FAW, CAMC, ISUZU, JMC, Fire Trucks/ fire fighting trucks.
I. FIRE FIGHTING TRUCK SERIES
FIRE FIGHTING TRUCK SPARE PARTS
1. Fire fighting truck chassis Model: HOWO, SINOTRUK, NORTH BENZ, SHACMAN, DONGFENG, AUMAN, tec.
2.Engine Model: Dongfeng Cummins (260HP-375HP), Yuchai (290HP-375HP), weichai(270HP-380HP).
3. Drive model: 4x2 , 6x4 , 8x4;
4. Engine: EuroIIand EuroIIIemission standard;
5.Right/Left hand drive ;
II.PROFESSIonAL PACKING AND TRANSPORTATION
III.FACTORY VIEW
IV. Co
nTACT INFORMATION
If you want to know more a
bout our 7000liter fire truck, please do not hesitate co
ntact with us as below:
HUBEI VELDLION MACHINERY Co., Ltd
ATTN: Real Liu
Mobile phone: +86 13656866460
Website: www.veldlion.com
V. PARAMETERS DATASHEET OF 7000liter fire truck
| Vehicle model | | Dongfeng water truck |
| Chassis model | | EQ1070TJ9AD3 |
| External dimensions (L×W×H) | (mm) | 6990×2300×2350 |
| Loading mass | (kg) | 3500 |
| Whole equipped car mass | (kg) | 3795 |
| Max. Total mass | (kg) | 7490 |
| Shaft distance | (mm) | 3800 |
| Closing angle/departing angle | (°) | 12/13 |
| Front suspension / Rear suspension | (mm) | 1180/2010 |
| Front tread / Rear tread | (mm) | 1835 / 1640 |
| Steering type | | power steering |
| Axle number | | 2 |
| Leaf spring number | | 11/9+7,8/10+7 |
| Engine model | | CY4102-C3C |
| Fuel | | diesel |
| Max power | (kw/hp) | 88 / 120 |
| Exhaust volume | (ml) | 3856 |
| Emission standard | | GB3847-2005,GB17691-2005 |
| Tire model | | 8.25-16 |
| Tire number | | 6 |
| Top speed | (km/h) | 90 |
| Seat numbers | | 3 |
| Water tank volume | (L) | 7000 |
