FUNCTIo
nAL FEATURES
1. Composition&co

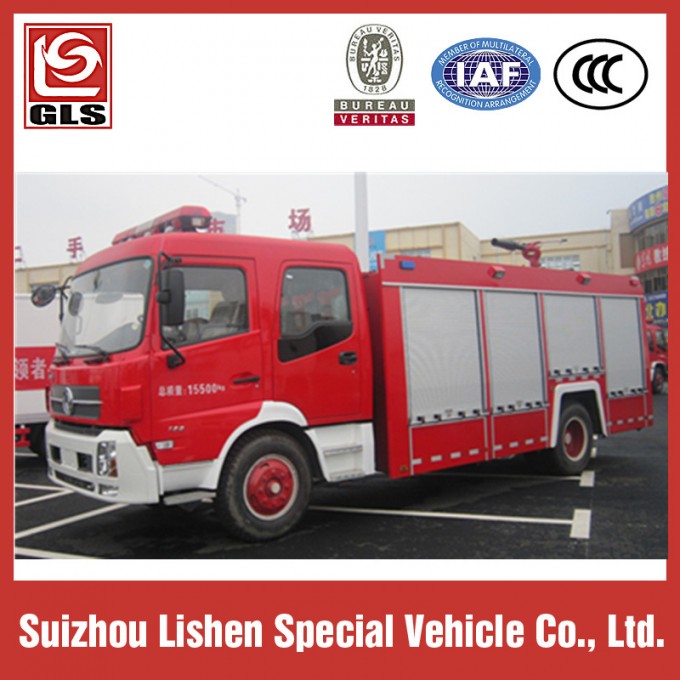

lon; the fire truck is composed of cabin, water tank, equipment box, pump house, fire gun, pump and pipeline.
2. Two ways to inject water&co
lon; injecting water from fire hydrant or from river, pond, etc.
3. Option&co
lon; the truck can be customized according to your requirements.
TECHNICLA SPECIFICATION
| Description | Parameter |
General | Model | SLS5150GXF |
| GVW/Curb weight | 14900kg9450kg |
| Rate of load | 5000kg |
| Overall size | 8030×2490×3250 |
Chassis | Model | EQ1160ZZ4GJ |
| Brand | Dongfeng |
| Cab | Front tilt flat cab, double-row, 4doors, 2+4 seat, 4sets of safety belt in the back seats. |
| Drive type | 4x2 left hand drive |
| Fuel type | Diesel |
Engine manufacturer
/model | ISDe160 40 |
| Power | 118kw |
| Displacement | 4500ml |
| Emission standard | Euro 3 |
| Engine type | Inline six cylinder,four-stoke, water-cooled, turbocharged and inter cooled, fuel direct injection pump. |
| Shift box | 9-speed Forwarder with 2Reverse |
| Brake | Air brake |
| Wheelbase | 3500mm |
| No. of axle/payload | 2/4920kg+9980kg |
| Tire specification/No. | 9.00-20 |
| Max speed | 90km/h |
| Paint color | Red paint |
| Tank | Water Tank capacity | 5000L Made in high-strong carbon steel with anti-corrosion |
| Special configuration | Atmospheric pssure pump fire pump: CB10/60 1.0Mpa,Leading water time≤50s, within water depth 7m
Fire monitor Model: PL48(dual-purpose gun blisters) Water range≥55m/1.0MPa ,foam range:≥50m/1.0MPa |
COMPANY INFORMATION
Suizhou Lishen Special Vehicle Co., Ltd. is aspecial vehicle manufacturer, located in Suizhou, Hubei, China. Main products include petrochemical transportation tanker truck, bulk powder &particle material tank truck, sanitatiaon truck, co
ntainer carrying truck and all kinds of semi trailer. The company has passed ISO9000 and CCC certificate.
FAQ
Q&co
lon; What's is your MOQ order?
A&co
lon; Our MOQ is 1set.
Q&co
lon; What's the payment terms?
A&co
lon; By T/T or L/C at sight.
Q&co
lon; How many trucks does your factory produce per years?
A&co
lon; Almost 3500 units
Q&co
lon; How do you co
ntrol the quality of product?
A&co
lon; Our Factory is standard production workshop, got CCC and BV Certification and workers are well trained. Every product goes through astrict inspection process.
Q&co
lon; How a
bout your product After-sales service system?
A&co
lon; Our main export country have accepted after-sales service, some of country used the third department service.
