Detailed Description

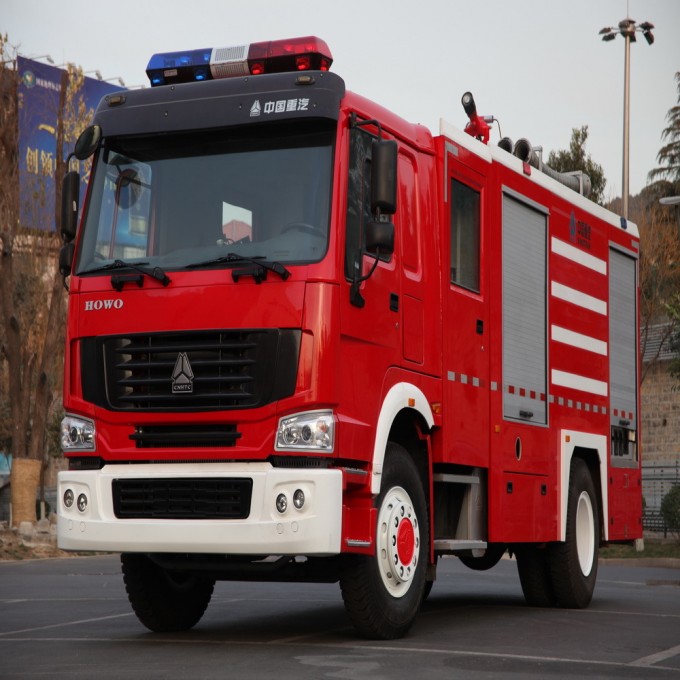

The fire fighting truck.The truck from the crew compartment, the water tank (body), pump house, equipment boxes, out of the water pump and foam system, fire cannons, electro
nic sirens, lights ,Equipment compartment door curtain made of aluminum alloy doors ,roller, chute -oriented, open and close the lightweight, low noise ;equipment on both sides of the rear of the car and turn the pedal plate ,using gas springs, door stopper double ended fixed ,safe and reliable performance ;and other major components.
| Dimension(L*W*H) | 8540×2490×3560 mm
(mm) |
| GVW | 19000kg |
| Curb Weight | 10750(Kg) |
| Chassis Model | LLX5190GXFPM70HM
|
| Manufacture | sinotruck-Howo |
| Cab | Double |
| front/rear suspension | 1578/2102(mm) |
| Engine | Engine Model | D10.28-40 |
| Fuel | diesel-oil |
| Quantity of cylinder | 6 |
| Horse Power | 300hp |
| Rated Power | 213Kw |
| Air Displacement | 9726ML |
| Emission | EURO III/IV/V |
| Driving Type | 4x2 |
| Steering Wheel | left or right hand driving |
| Gear-box | 6 |
| Brake Type | air |
| Quantity of Axle | 2 |
| Wheel base | 3800/4300/4600/5200(mm) |
| Axle load | 5600/7800 |
| Quantity of Tyre | 6+1 |
| Tyre Type | 11.00-20,11.00R20,12.00-20 16PR,12.00R20 16PR,14.00-20,14.00R20(customized) |
| Liquid tanker | Volume | Water 5000 liters+3000l |
| Material | Corrosion resistant plate |
| Structure | Welding, baffle palte inside, including also :2 manholes |
| Pump | Model | CB10/40 |
| Pression | 1.0 MPa |
| Flow | 40L/s |
| Suction depth | >=7m |
| Suction time | <=50s |
| Installation | Rear |
| Pipeline system | |
| Powder system | Volume | 2T |
| Material | 16MnR |
| Pressure designed | 1.7MPa |
| Working pssure | 1.4MPa |
| Fire fighting nozzle | Model | PL32 |
| Pression | 1.0MPa |
| FLow | 32L/s |
| Range | Water>=60m;Foma>=55m |
| Horizontal rotation angle | 360°; angle of elevation-30°~80° |
