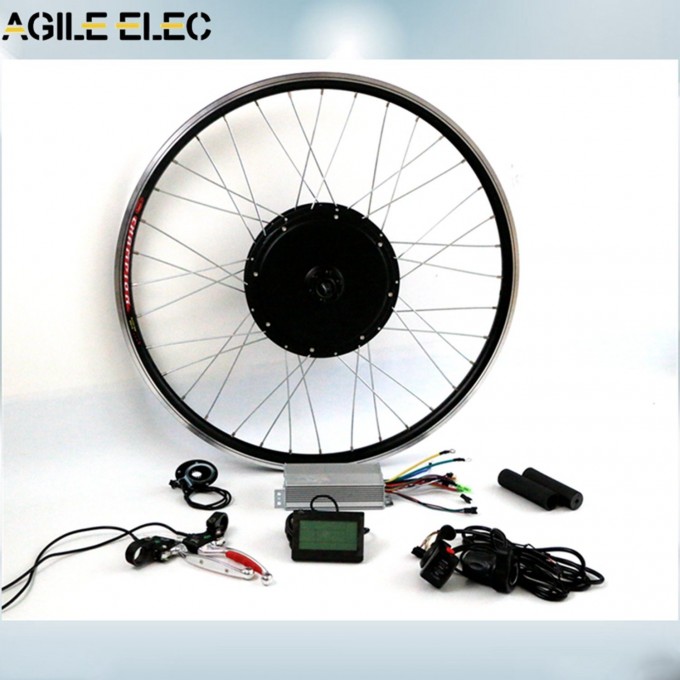

Agile 48V 500W Gearless Electric Bicycle Parts

Agile 48V 500W Gearless Electric Bicycle Parts

Why need electric bike kit to convert into an e-bike?
1. low-carbon solution, saving your time and effort.
2. Stay the original look & style of your favorite bike
3. Occupy less space, more flexible than a car. Cover the last few miles which a car can't
4. Riding an electric bike to get some fresh air may make you feel better than driving a car.

Warranty:
Motor--->2 years(guarantee replacement in first year, guarantee repair in the next year.)
Battery---->1years(guarantee replacement.)
Other parts---->half an year

Wheel Size	20"-28"
Motor	36v/48v brushless motor
Spokes	12k
Rim	20" 24" 26" 27" 28" 700cc
Rim Material	Double-wall high power aluminum alloy
Tires	Matching with different rims
Controller	36v/48v intelligent controller
Sensor	1:1 pedal assist sensor
Throttle	Thumb throttle Or Twist throttle
Brake	2 alloy brake levers
Battery caring bag	40cm*23cm*10cm
110v-240v charger	2a charger for SLR battery
Rear Rack	Steel rear bracket
Harness wires	Connection wires
Package	Carton box with foam, YiPidai, tie
Free Wheel(Optional)	Six-speed freewheel(3-5 USD extra charged)
Package	Carton box with foam, YiPidai, tie
Speed	48KPH Max; 25KPH Min
Max Loading	120 kg to 135kg
Net Weight	12 kg
Gross Weight	13 kg
Size of Package	Matching with different rims
Instruction Manual	One Piece

FAQ:
• Q What kind of brand do you use for controller and display?
• A KT, Sciencewell, and Xi-tong. Both controller and display for one set. Other brands are optional.

• Q what kind of brand do you use for cell box, cell, power-off brake?
• A Cell box: ShanShan and Huiye
Cell(18650): Local, Samsung,Panasonic, LG,etc.
Power-off brake: Wuxing
Other brands are optional.

• Q The controller uses square wave or sine wave?
• A It is optional.

• Q The electric bike conversion kit uses gear motor or gearless motor?
• A It is optional.

• Q The controller uses square wave or sine wave?
• A It is optional.

• Q What is the largest power of your motor for the kit?
• A 3000w

• Q Will the electric bike conversion kit fit my bicycle?
• A The conversion was designed to fit 90% of the bicycles, and you can check your bicycle fork (the two metal pieces that attach the wheel to the bicycle) to be sure. You will need at least 100mm for front wheel and 135mm for rear wheel.

• Q Does the electric bike conversion kit waterproof?
• A Yes. You can ride our electric bikes in the light rain without worrying about damaging the elements.
