Detailed Description
| Overall Dimension(L*W*H)(mm) | 8275x2490x3300 |
| Wheel base(mm) | 3800+1350 |
| Curb weight(kg) | 11200kg |
| Dump Body | 5200x2300x1500 |
| Payload weight(kg) | 15,000 |
| Max Speed:(km/h) | ≥80 |
Engine
| Model | Diesel,WEICHAI Engine |
| Type | water-cooled,4 strokes,6 cylinders in line,turbocharged |
| Horse Power | 290hp |
| Injection type | Mechanical/Electrical |
| Fuel tanker capacity(L) | 400L square aluminum alloy fuel tank |
| Clutch | Model | 430, Single dry frictional disc,Hydraulic boosting |
| Gearbox | Model | FULLER Technology, Manual Transmission, |
| Brake system | Service brake | double circulation air brake system |
| Assistant brake | Engine exhaust brake |
| Park brake | Potential springs pssing on middle and rear wheels |
| Steering system | Model | ZF technology |
| Suspension System | Rear Suspension | Non-free standing stabilization Leaf spring |
| frame | STEYR Technology variable width, variable sections |
| Front axle (Steyr Tech) | Double-shoe pneumatic brake, non-driving steering axle |
Middle and Rear axle
| Double-shoe pneumatic brake, ductile casting casing, with hub redactor
|
| Tire | 12.00R22.5 |
| Electrical system | Battery | 2X12V/135Ah |
| Generator | 28V-35A |
| Starter | 5.4Kw/24V |
Cab
| Long cab with sleeper(High roof with two sleeper),Can be tipped forwardly; |
Please be assured that we are able to provide you with the best products and the most qualified service!
Co
ntact Us
HAILI YANG
Sales Manager
Mobile: 86- 132 0636 9580

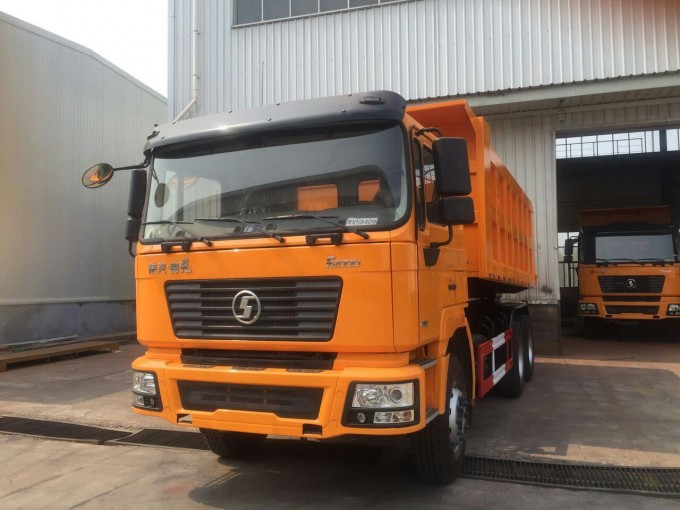

Product Image
