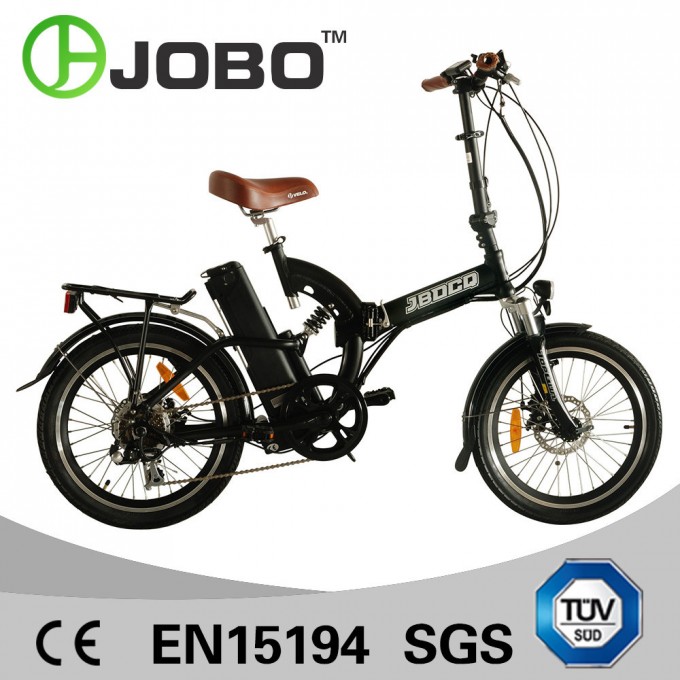

Full Suspension Folding Electric Bike with En15194 (JB-TDN05Z)

Globally Popular Folding Electric Bike/From Professional E-bike Manufacturer
1. frame: 6061#Aluminum alloy(foldable)
2. Motor: Brushless 36V/250W
3. Battery: 36V/10AH lithium battery
4. Fork: ZOOM suspension fork
5. Brake: Front disc brake rear Tektro V brake
6. Brake lever: WUXING Brand
7. Handle Bar/Stem: ZOOM Brand
8. Seat post: Foldable or Suspension
9. Handle with battery power indicator
10. Dimension of tyre: KENDA 20''× 2.125
11. Light: LED headlight and taillight
12. Speeds: Shimano 6 speed gears
13. Mudguard: PVC mudguard
14. Charge time: 4-6H
15. Charger life: >500 times
16. Charger: 100V AC - 240V AC
17. Max speed: 25-30km/h
18. Driving distance: >50kms
19. Loading capacity: 120kg
20. Available colors: Black, silve or other colours
21. Pedal Assistant System: 1: 1
22. Multi-function display on handle bar: With 3 level PAS speed, power on/off switch
23. Container loading: 20"FCL 110PCS
40"FCL 270PCS
24. N. W: 23kgs; G. W: 28kgs



WeAretheProfessionalElectricBicycleManufacturerinChina,HasEngagedinE-bikeFieldforOver10Years.
OurStrengthProductsForExportingIsLightWeightElectricBicyclesWithHighQualityLi-ionBatteryAndAluminumAlloyframe,SuchAsElectricMountainBikes,ElectricFoldingBikes,ElectricCitybicycleAndSoOn.WeAlwaysInsistOnOfferingHighQualityProductsAndGoodServiceAndSupportForOurCustomersAllOverTheWorld.AndWeAlwaysCloselyFollowtheWorldTrendofElectricBicycle,NewItemsAreReleasedEveryYear.SoOurProductsAreWelcomedByGoodQuality,AdvancedStyleAndGoodQuotation,EspeciallyInEurope,AmericaandAustralia.OEMOrdersAreAlsoWelcomedAccordingToYourDetailRequirements.
Contact Me Anytime: Shirley Ye
Tel: +86-579-83236565
Fax:+86-579-89185892
Mobile phone: +86-15058509692

Hub Bicycle Motor Foldable Electric Folding Bike, E-Bicycles USD$460 with Shimano 7 speed gears, 8FUN motor, ZOOM adjustable supsenison fork, front Disc brake/rearTektro V brake, VELO saddlePromax seat post, etc., for more detailed technical specifications as below.
Motor	Light weight high speed brushless hub motor	frame	6061 aluminium alloy. Foldable
	8FUN brand 24month warranty	Tyres	20" X2.125 KENDA
	250W for European25KM/H	Rim	Alloy Double Wall
	350W - 500W for North American.28-30-32-35KM/H	Front fork	Alloy TGS Strong Suspension
	200W for Australia	Front brake	Disc brake ZOOM
Battery	36V/10Ah li-ion battery	Rear brake	V brake TEKTRO/Disc brake
	36V/10Ahlifepo4 battery
	36V/12Ah li-ion battery	Speed gears	SHIMANO 6/7 speed gears.
	36V/14Ah li-ion battery
	36V/16Ah li-ion battery
	36V/12Ah lifepo4 battery
	36V/14Ah lifepo4 battery
	48V/10Ah li-ion battery
	48V/12Ah li-ion battery
	48V/14Ah li-ion battery
	24 month quality warranty	Rear derailleur	SHIMANO Tourney +guider(Acera available)
PAS	Intelligent pedal assistant system.	Handlebar / grip	ZOOM /wuxing or soft grip VELO
Controller	intelligent bruhsless. 12 month warranty	Stem	Alloy Strong adjustable
Charger	AC 100V -240V 2amps smart charger	Brake lever	WuXing/TEKTRO
	Charging time:6hours 12 month warranty	Chain	Rust resistant chain.
Throttle	Can use Throttle with Pasor Pas only	Chain wheel	42-44-48-52T ,al alloy crank.
Performance		Mudguard	PVC BIKEMAN from Taiwan
Max speed	25km/h (EU)	Rear rack	Alloy
Range	55km with 36V/10Ah li-ion battery(PAS).	Saddle	Veloavailable
	100km with 36V/16Ah li-ion battery(PAS).	Seat post	Promax
Max load	100kgs	Pedal	Wellgo
Net weight	24.0kgs	Lighting	HuangYu or Spanninga LED Lights from Holland
Gross weight	28.0kgs	Normal paint color	Any color is available
container load	98pcs/20ft container,256pcs/40ft container	Normal Packing size	145x x26 x 68cm special for exporting
