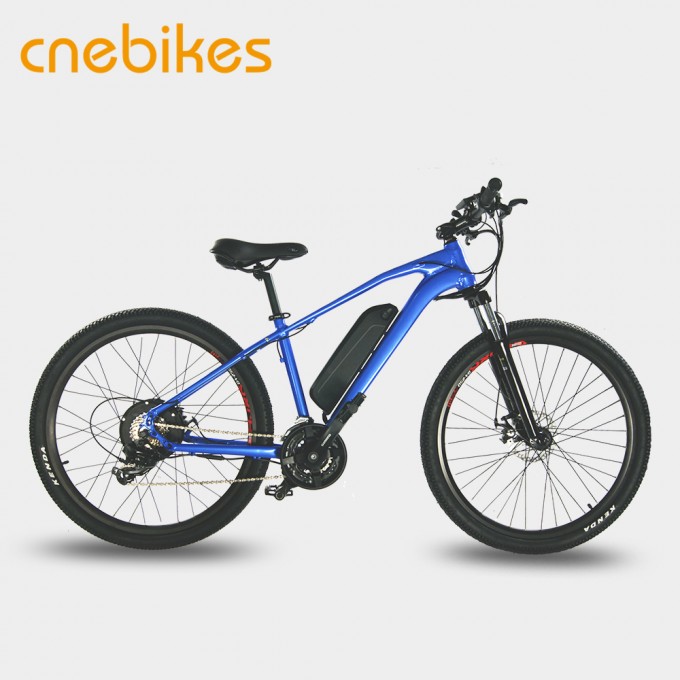

Electric Mountain Bicycle with Suspension Fork and 36V Lithium-Ion Battery

This MR-275C electric bike, used high speed geared motor, small but pwerful, top speed is around 30km/h, except the 36V 350W type, it also have 36V 500W and 48V 500W for optional.

Battery is used hailong type down tube lithium battery, have a big capacity and beautiful shape. LG 18650Li(NiCoMn)O2 battery cell, cycle life over 800 times.



Kenda 27.5"*2.1 tire, special design for electric bike, have a good grip. Use double-wall rim, it is much stronger than normal bicycle rim.

SR soft rubber saddle, provide a comfortable cycling feeling.



High quality handlebar components, rational layout, the hidden routeand beautifulwelding line, these are allindicate, this e-bike is aboutiqueelectric bike.

It is designed for you to enjoy the life.
Technical Parameters

frame	6061-T6 Aluminum Alloy
Motor	36V 350W brushless hi-speed rear motor
Battery	36V/10.4Ah Lithium battery
Controller	Intelligent brushless 36v with sensor(1:1pas)
Charger	AC 100V-240V,2amps smart charger
Display	LCD display with 5 leves PAS
Range	30km (18mile)
Tyre	KENDA 27.5*2.10
Rim	Al alloy double wall
Front fork	ZOOM
Front brake	Tektro Disc-brake
Rear brake	Tektro Disc-brake
Left Shift lever	SHIMANO SL-TX50 3 speed
Right Shift lever	SHIMANO SL-TX50 7 speed
Front derailleur	SHIMANO TY-500
Rear derailleur	SHIMANO TY-300
Freewheel	SHIMANO MF-TZ21
PAS	5 levels
Chain wheel	SHIMANO FC-TY310
Handle bar	PROMAX Al alloy
Stem	PROMAX Al alloy
Seat post	PROMAX Al alloy
Brake lever	ZOOM Al alloy,cut-off when braking
Chain	KMC Rust resistant chain
Saddle	SR; rubber
Grip	HUALONG; rubber
Pedal	FEIMIN; AI alloy
Front headlight	LED front headlight
Mid motor	Optional
Hydraulic brake	Optional
Fender	Optional
Luggage carrier	Optional
