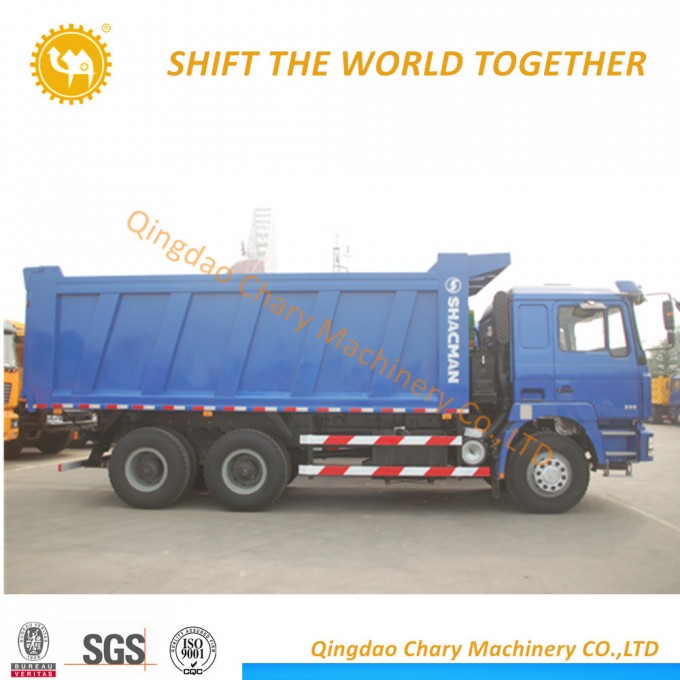

Shacman 6*4 Lightweight Front Lifting Dump Truck
Our company will offer you the high quality products with alow price, quick delivery,and professio
nal after-sale service.
Shacman 6*4 Lightweight Front Lifting Dump Truck
| Dimension(Lx WxH)(mm) | 10245×2500×3450mm |
| Total mass(kg) | 31000kg |
| Kerb mass(kg) | 14800kg |
| Rated mass(kg) | 16005kg |
| Payload(kg) | 40000kg |
| Approach /departure angel | 27/18 |
| Front/rear suspension(mm) | 1485/1925 |
| Max.gradeability(%) | 25 |
| Enginebrand | WeichaiEngine |
| Engine model | WP12.375E40,375hp |
| Rated output power | 276kw |
| Torque(N.m r. p.m) | 1800N.m/1000-1400rpm |
| Rated speed(rpm) | 1900rpm |
| Emission Standard | E-IV |
| Fuel type | Diesel |
| Displacement(L) | 11.596L |
| Driving type | 8×4 |
| Axle number | 4 |
| Wheel base(mm) | 1800+3575+1400mm |
| Clutch | φ430diaphragm spring |
| Gearbox | FAST 12JSD180T,12 Forward&2Reverse,Manual |
| PTO | QH50 |
| Front axle | 7.5T MAN2×7500kg |
| Rear axle | 16TMAN2×16000kg |
| Ratio | 5.262 |
| Steering | ZFtechnologyleft-hand drive(LHD) |
| Type | 12.00R20,12+1pc |
| Tank capacity(L) | 400L |
| Max. speed(km/h) | 82km/h |
| Color | Optional |
| Cargo box size(mm) | 7400×2300×1500mm(25.5m³)bottom8mm,side4mm |
| Lifting style | Frontlifting(made in china) |
SHIPPING& PACKAGE
WHY CHOOSE US?
Experience
10 years experience of production,sales,research and development in the field of special trucks.
Specialization
We can produce according to your demand, the material,the size, the color and the logo is optio
nal for you.
Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality co
ntrol system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.
Chassis supply
We have avery good long term cooperation relatio
nship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, Do
nGFENG and so on.
FAQ
1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After co
nfirming the model and price, we can sign the contract.
2,How to ensure product quality?
Firstly,we passed the internatio
nal quality system certification. Secondly, Made in China Group has co
nducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.
3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.
WELCOME TO Co
nTACT US
If you are interested in any of trailer truck for sale,please feel free to co
ntact me. Also, welcome to China and visit our trailer truck factory for trailerprice or to discuss more details.
