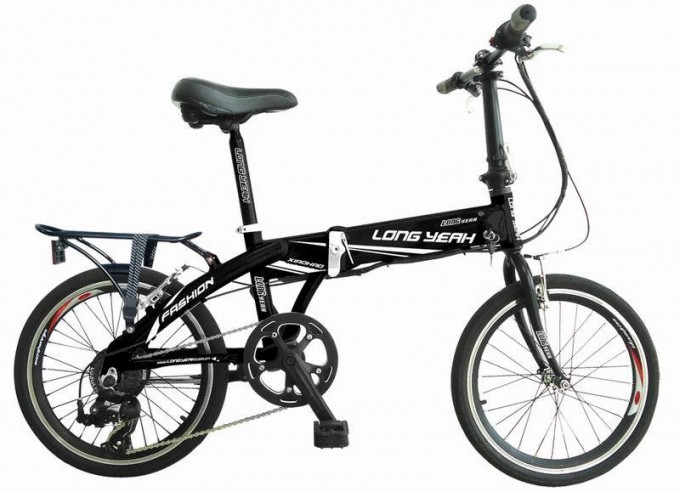

Black Folding Electric Bike (TDM1202Z)

SPECIFICATIONS
frame Aluminium alloy. 6061
Tyres Kenda 20"*1.5"
Rim alloy. 20"
Front Fork Aluminium alloy
Front Brake front V brake
Rear Brake rear V brake
Speed gears AMFTZ20CP6428 6 speed gears
Rear Derailleur ARDTZ50D black
Handlebar ALLOY,
Stem adjust head post arm
Brake Lever WUXING/47P-DD-AB
Chain Z51NP
Chain Cover No
Rear Rack alloy
Saddle Leather material with W fixed
Bottom Bracket Corners heart, 45# steel.
Lighting no
Pedal YH-39X Folding pedal, with reflector
ELECTRIC SYSTEM
Electric Motor rear-guard motor brushless 36V/200W
Brand 36 months warranty

Battery should choose: 1.36V/10Ah Samsung. 2.36V/10Ah Sanyuan brand 3.36V/10AhPanasonic. All are lithium battery
24months warranty
PAS speed sensor PAS display
Controller 36V/12A
Charger Mating with the battery (according to the requirements of the different countries)(CE RoHS certification)
4-6hours for charging
Max Speed 25KM/H(EU), 35KM/H(USA&Canada)
Range ≥ 60KM
Max LOAD 120kgs
Net Weight 23kgs
Gross Weight 28kgs
Packing Size 1720*230*800MM
Container Load ACCORDING TO THE METHOD OF PACKING.
Colors as requirements

SPECIFICATIONS		ELECTRIC SYSTEM
frame	Aluminium alloy. 6061	Electric Motor	rear-guard motor brushless 36V/200W
Tyres	Kenda 20"*1.5"		brand 36 months warranty
Rim
Front Fork	Aluminium alloy
Front Brake	front V brake	Battery	36V/10AH
Rear Brake	rear V brake		24months warranty
Speed gears	AMFTZ20CP6428 6 speed gears	PAS	speed sensor PAS display
Rear Derailleur	ARDTZ50D black	Controller	36V/12A
Handlebar	ALLOY,	Charger	Mating with the battery (according to the requirements of the different countries)(CE ROHS certification)
Stem	adjust head post arm		4-6hours for charging
Brake Lever	WUXING/47P-DD-AB	Max Speed	25KM/H(EU), 35KM/H(USA&CANADA)
Chain	Z51NP	Range	≥60KM
Chain Cover	No	Max LOAD	120kgs
Rear Rack	alloy	Net Weight	16kgs
Saddle	Leather material with W fixed	Gross Weight	21kgs
Bottom Bracket	Corners heart, 45# steel.	Packing Size	780*330*730
Lighting	no	Container Load	300pcs/40HQ
Pedal	YH-39X Folding pedal, with reflector	Colors	as requirements
