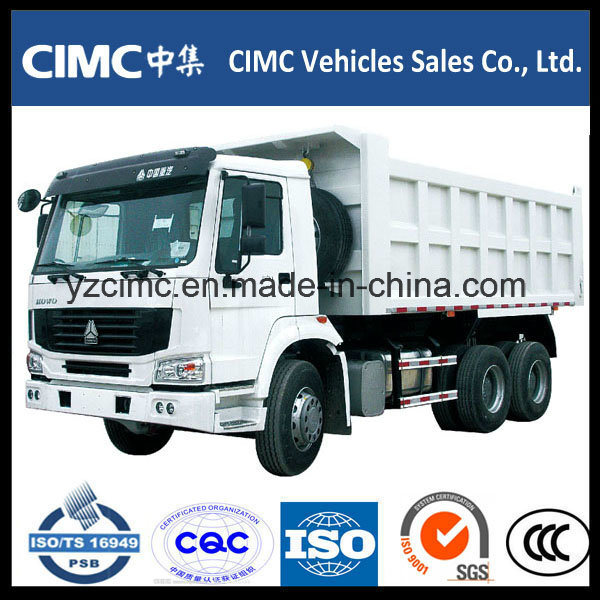

Supplier of Sinotruk HOWO 6X4 336HP Dump Truck 20m3

HOWO 18M3 DUMP TRUCK
Model: ZZ3257N3647A
Driving type: 6x4
Engine: 336hp , Euro2
Transmission: HW19710, 10 forward and 2 reverse
Front axle: HF9
Drivng axle; HC16
Tire: 12.00R20 steel tire ; 12R22.5 tubeless tire
"F" style,middle lift system
Dumper box: 18m3(5400*2300*1450mm)

Model		ZZ3257N3647A
Driving type		6x4
Driver's Cab		HW76, with two seats one bed ,left hand drive,all steel forward control, 55°hydraulically tiltable to the front, 2-arm windscreen wiper system with 3 speeds, laminated windscreen with casted-in ratio aerial, adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, stereo radio/cassette recorder, safety belts and adjustable steering wheel.4 point support fully floating suspension and shock absorber with tranverse stabilizer.air conditioner.
Engine		Make: SINOTRUK
		Diesel 4-stroke direct injection diesel engine
		Engine model: WD615.47, Euro 2 emission standard
		6-cylinder in-line with water cooling, turbo-charging and intercooling
		Maximum output: 371 hp at 2200 rpm
		Maximum torque: 1450 Nm at 1300-1600 rpm
		Number of cylinder: 6
		Displacement: 9.726 L
		Bore: 126 mm
		Stroke: 130 mm
		Specific fuel consumption: 198 g/kWh
		Engine oil filling quantity: 23 l
		Cooling system filling quantity (long-term filling): 40 l
		Double cylinders air compssor
		Rigid fan
Transmission		HW19710,10 forwards and 2 reverses,manual gearbox
		Ratio:14.28,10.62,7.87,5.88,4.38,3.27,2.43,1.8,1.34,1.00,13.91 ®,3.18®
		Change the oil in the rotary gear box (transmission) after you have drive 2000-4000 kilometer
Front Axle		HF9(9TON),Steering with doubleT-cross section beam
Rear Axle		Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
		Model:HC16.Ratio Option:4.42,4.8,5.73
Chassis		frame: U-profile parallel ladder frame with section of 300x80x8+8mmmm, and reinforced subframe all cold riveted cross members
		Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
		Rear suspension:12leaf semi-elliptic springs, bogie spring and stabilizer
		Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis
Tyres		12.00R20 steel tire
Dumper box		18m3(5400*2300*1450mm, length*width*height)
Lifting system		"F" style,middle lift
