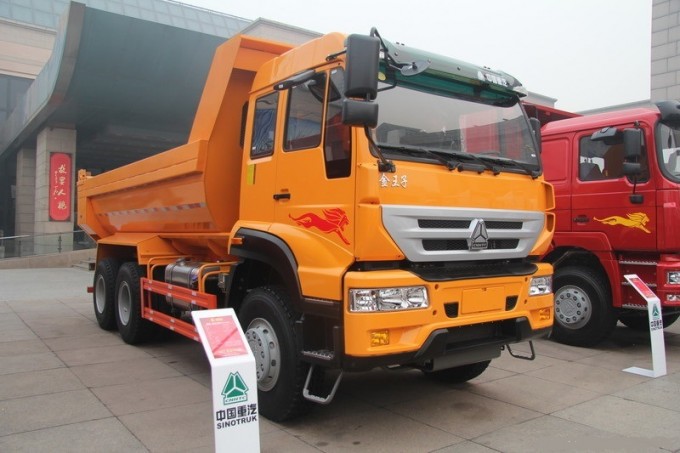

| SINOTRUK GOLDEN PRINCE 6X4 DUMP TRUCK |
| MAIN SPECIFICATION |
| Description | SINOTRUK GOLDEN PRINCE 6X4 DUMP TRUCK |
| Model | ZZ3251N3841D1 |
| Engine Power | 340Hp |
| Loading Capacity | 12690Kgs |
| Place of Origin | China |
| DETAIL SPECIFICATION |
| Cabin | Type | L2000, media cabin, one berth, with air-condition |
| Model | L2000 |
| Model | D10.34-40 |
| Engine | Horse Power (Hp/rpm) | 340/1900 |
| Type | Euro IV |
| Clutch | Φ430 Diaphragm spring clutch, hydraulic operating with air assistance |
| Transmission | HW13710C |
| Driving Axle | HC16, Pressed axle housing, central reduction with hub reduction and with differential locks between wheels and axles(Ratio: 4.8, 5.73) |
| Steering System | A01 |
| Electrics | Single wire, 24 V, negative grounded; Alternator: 1540W; Start Motor:7.5kW;Battery:2*12V/165Ah |
| Tire | 12.00R20; Option: 11.00R20 |
| Fuel Tank Capacity (L) | 300 |
| Front Axle Loading Capacity(kg) | 7,000 |
| Rear Axle Loading Capacity(kg) | 16000*2 |
| Vehicle Weight (kg) | 12,310 |
| Gross Vehicle Weight (kg) | 25,000 |
| Rated Loading Capacity(kg) | 12,690 |
| Overall Dimension(L*W*H)(mm) | 8260×2490×3450 |
| Wheelbase(mm) | 3750+1350 |
| Front/Rear Overhang( mm) | 1320/1840 |
| Wheel Track(Front/Rear)(mm) | 1986/1830 |
| Approach/Departure Angle(°) | 20.5/25 |
| Max. Speed (km/h) | 75 |
| Recommended Body Dimension(L*W* H mm) | 5800×2300×1100 |
| Body Capacity(m3) | 14.67 |
