Transportation 8*4 Heavy Duty Mining Dump Tipper Truck (WD615.69/WD615.47)

Introduction ofTransportation 8*4 Heavy Duty Mining Dump Tipper Truck

Transportation 8*4 heavy duty tipper truck, tipper truck, dump truck, 8*4 heavy duty tipper truck, volume sand tipper truck, right/left hand drive tipper truck
we supply various dump trucks/tipper truck, tractor trucks, semi-trailers, cargo trucks. All the engines, cabs, axles, gearboxes, frames and other key components are substantially developed and made by SINOTRUCK to ensure the best quality and the matching among main assemblies. series trucks use original ZF8098 steering system, to continue the leading position at home and abroad.

Features ofTransportation 8*4 Heavy Duty Mining Dump Tipper Truck

1:Reliable:
Lateral stability: Patent and tailored frame design
Safety and reliability: New type brake drum
2:Low Fuel Consumption:
High efficiency Powertrain: Optimized power transmission design
Low wind resistance: Streamlined cabin design
3,Euro type cabin:
Latest international style cabin
Crystal and upright mounted headlamp
4,Comfortable:
Flat floor cabin, enlarge the driver's space;
Noise isolation technology;
Ergonomic trim and seats;
Tilted footstep on front bumper;
Streamlined cabin design;
Ergonomic dashboard.

Parameter ofTransportation 8*4 Heavy Duty Mining Dump Tipper Truck

Engine	Model		WD615.69/WD615.47
	Emission		EURO 2
	Maximum output		336HP (247KW)/2200rpm /371HP(273KW)/2200rpm
	Maximum torque		1300Nm/1300-1600rpm /1470Nm/1300-1600rpm
	Number of cylinder		6
	Displacement(L)		9.726
	Bore(mm)		126
	Stroke(mm)		130
	Fuel		Diesel
	Compssion ratio		38.1hp/1
	Engine oil filling quantity(L)		19
	Specification		6-cylinder in-line with water cooling,turbo-charging and intercooling
Gearbox	Model Option		HW15710,HW19710,FAST RT11509C
	Operation		Manual
	Speeds		(8)9 Forward and 1 Reverse
Front Axle	Model		HF9
	Rated load(kg)		9000
	Maximum steering angle of inner wheel(.)		45
	Kingpin inclination(.)		3
	Camber angle(.)		1
	Spring gage(mm)		850~900
	Brake		Air drum brake
	Min rim size(inch)		20
Driving Axle	Model		HC16(Tandem axle)
	Type		Central single reduction + hub reduction,welded axle housing
	Rated load(kg)		2×13000
	Ratio		3.93/4.42/4.80/5.73/6.72/9.49
	Spring gage(mm)		1020
	Wheel tread(mm)		1850
	Input flange		φ180
	Differential device		Inter-wheel and inter-axle
	Brake		Drum φ420×220
	Weight(Without lubricants)(kg)		1 st axle:895/2nd axle:815
	Wheel bolt(mm)		φ335-10×M22×1.5
	Min rim size(inch)		20
	Lubricants(L)		GL5 85W-90
Cab	Model		HW76
	Bunk		1
	Air Conditioner		With
Steering			ZF power steering,model ZF8098,hydraulic steering with power assistance Ratio:26.2
Electrics		Operating voltage	24 V,negative grounded
		Starter	24 V,5.4 Kw
		Alternator	3-phrase,28 V,1500 W
		Batteries	2×12 V,165 Ah
		Others	Cigar-lighter,horn,headlamps,fog lights,brake lights,indicators and reverse light
Tyre		Rims	8.5-20,10 hole-steel
		Option	11.0020 Radial Tyres,12.00R20 Radial Tyres
Brake		Service brake	Dual circuit compssed air brake
		Parking brake(emergency brake)	Spring energy,compssed air operating on rear wheels
		Auxiliary brake	Engine exhaust brake
Bulk(Cargo Box)		Lifting Option	Front Lifting,Ventral Lifting
		L × W × H(mm)	7300×2300×1500
		Working Volume(M3)	25.2
Dimensions		Wheel base(mm)	1800+3500+1350
		Overall length(mm)	10100
		Overall width(mm)	2516
		Overall height(mm)	3310
Weight(kg)		Permissible loading capacity(kg)	32000
		Chassis dead weight(kg)	13900
		Front axles loading capacity(kg)	9000
		Rear axles loading capacity(kg)	13000×3
Performance		Maximum driving speed(km/h)	75
		Maximum grade ability(%)	39
		Minimum ground clearance(mm)	298
		Minimum turningcircle(m)	21
		Fuel consumption(1/100 km)	40
Option		Color	Blue/White/Yellow/Green/Red
		Brake	ABS,EVB
		Engine	EURO 2,EURO 3,EURO 4

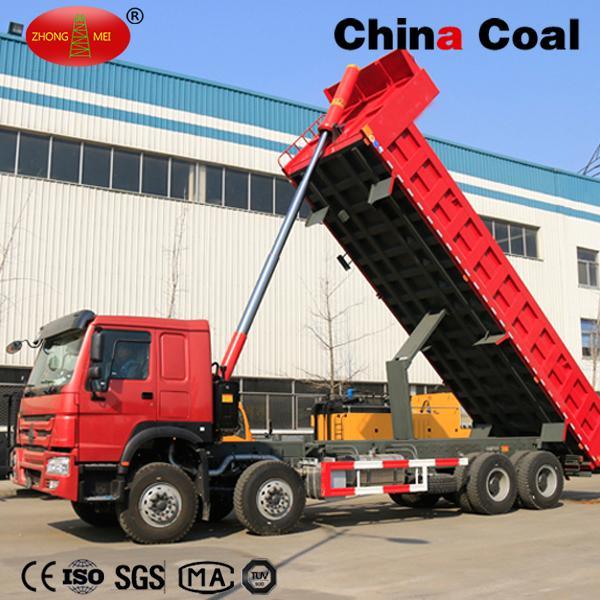

Photos ofTransportation 8*4 Heavy Duty Mining Dump Tipper Truck
