Detailed Description
Industrial and mining series tricycle mainly includes semi-closed and simple vehicle body series. This series of tricycle is suitable for mining and co
nstruction sites. Equipped with optimized eight gear rear axle, and makes full use of high and low speed conversion, the vehicle realizes efficient transport and fuel economy.
1. Double MD beam f
rame structure, strong bearing capacity, thick and impact-resistant material of caogo box, durable vehicle.
2. Dump function, fast lifting within 20 seconds, efficient loading and unloading.
3. Vacuum headlight, strong adhesion of herringbone tyre, smooth driving in mine tunnels and on rough roads.
4. Hydraulic, stable and fast brake, simple windshield design, good driving vision field, improved driving comfort.
| Model | WK3B1122101 |
| Main dimensions | Overall dimensions (LxWxH)mm | 3900×1330×1395 |
| Dimensions of the cargo body (LxWxH)mm | 2200×1400×500 |
| Wheel base (mm) | 2580 |
| Wheel track (mm) | 1240 |
| Min. ground clearance(mm) | 210 |
| Max. slope of climb(%) | 15 |
| Min. turning radius(m) | 3.6 |
| Max. speed(km/h) | 44.5 |
| Weight | Curb weight (kg) | 1000 |
| Rated payload(kg) | 900 |
| Gross vehicle weight(kg) | 1965 |
| Engine | Engine Type | CCZS1110 |
| Displacement(L) | 1.093 |
| Rated horsepower(HP) | 20 |
| Steering gear Type | Mechanical |
| Service brake and boostingType | Oil brake |
| Wheels and tyre size | Front wheel | 5.00-14 |
| Rear wheel | 7.00-16 |
| Electric device | Rated voltage | 12 |
| Battery | 6-QW-120MF |

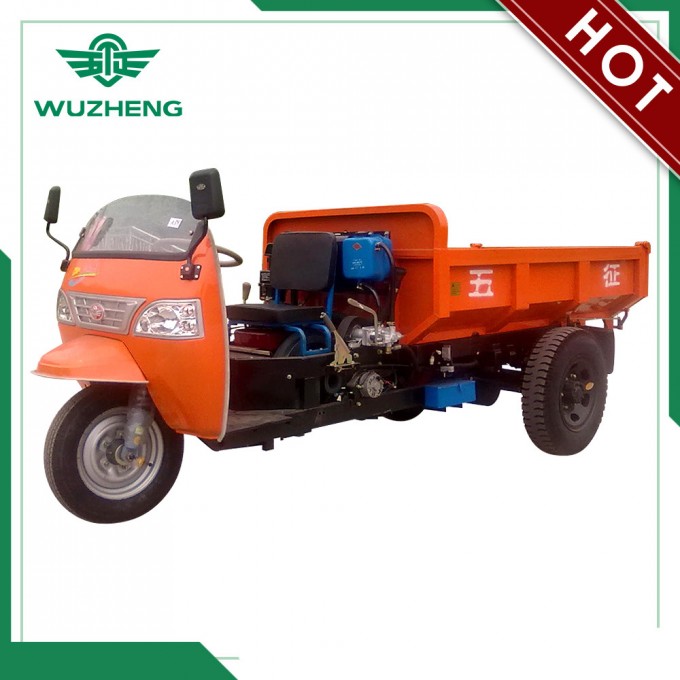

Product Image
