Detailed Description
SINOTRUK 371HP HOWO Mining Dump Truck 6X4Wide body Mining Dump Truck Des
cription :
This type mining dump truck is akind of heavy duty dump truck that mainly working at open-air mine for transport rocks earthmoving and stone etc .He work characteristic is short distance transportation ,heavy loading capacity ,by big electric loader or hydraulic loader to load these rocks for charging .
Main Characteristic :
1. Body Wide and big ,heavy loading capacity .
2. Strong power, f
rame frimness and big hardness .
3. Exquisite Welding and reliable brake system.
4. Tire all are engineering tire ,adapts very complex pavement .
Technical Specification :
| SINOTRUK HOWO 6X4 Mining Truck Dump 371HP |
| MAIN SPECIFICATION |
| Description | Mining Dump Truck HOWO |
| Model | ZZ5707S3840AJ |
| Engine Power | 371Hp |
| Dump Body Dimension | 5800*3100*1500(26.97m3) |
| Loading Capacity | 50,000Kgs |
| Place of Origin | China |
| Detail Specification |
| Weight | Chassis weight(kg) | 17300 |
| Dead weight(kg) | 29300 |
| Max. Theoretical Loading Weight(kg) | 50000 |
| Max. Theoretical G.V.W(kg) | 75000 |
| Performance | Min. Turning Diameter(m) | 22 |
| Max. Speed(km/h) | 50(57) |
| Fuel Tank Capacity(L) | 500 |
| Chassis frame | Type | strenghthened aequilate ladder type frame |
| Main beam cross-section | 380*120*10(mm) |
| Auxiliary beam cross-section | 355*110*10(mm) |
| Transmission | Model | HW19710 |
| Forward Ratio | 14.28, 10.62, 8.87, 5.88, 4.38, 3.27, 1.80, 1.34, 1.00 |
| Reverse Ratio | 13.913.18 |
| Wheel alignment | Front-wheel camber | 1° |
| kingpin inclination(Inward) | 5° |
| kingpin inclination(Rear) | 3°7′ |
| Driving axle | Model | Central reduction with hub reduction |
| Rotio | 10.47Option: 8.51 |
| Differential Locks | Exist between wheels and axles |
| Body(Tilting End) | Dimension(L*W*H mm) | 5800*3100*1500 |
| Thickness(Floor*Side mm) | 16*12 |
| Hoist System | HYVA 196 |
| Dimension | Overall dimension(mm) | 8600*3300*4000 |
| Wheelbase(mm) | 3800+1500 |
| Front/Rear overhang(mm) | 1500/1800 |
| Front/Rear wheeltrack(mm) | 2750/2520 |
| Min. ground clearence(mm) | 340 |
| Approach/Departure angle(°) | 30/40 |
| Engine | Model | WD615.47 |
| Displacement(L) | 9.726 |
| Rated power hp(r/min) | 371/2200 |
| Max. torque Nm(r/min) | 1500/1100~1600 |
| Cabin | Type | HW7D |
| Nos of passengers | 1 person |
| Clutch | Type | Diaphragm spring clutch, hydraulic operating with air assitance |
| Outside diameter of driven plate | Φ430(mm),1900mm |
| Steering | Model | ZF8118 |
| Brake | Service brake | Dual circuit compssed air brake |
| Parking brake (emergency brake) | Spring energy, compssed air operating |
| Auxiliary brake | Engine exhaust brake |
| Others | Brake heat sink |
| Electrics | Operating voltage | 24 V, negative grounded |
| Alternator | 1500w |
| Battery voltage/capacitance(V/Ah) | 12/180 |
| Tyre | Model | 14.00-25(14.00R25 for option) |
| Rim | 10.00-25 |
Packing :Nude Packaging .
Shipping :By RO-RO or Bulk cargo ship as customer's demands .
Warranty :12 mo
nth ,from the shipment date .
Payment Terms: 30% TT before produce and 70% TT before shipment .or 100% LC at sight .
Delivery Time :Will according to the quantity of mining dump truck that customer need .If have any interest in our mining dump trucks ,pls feel free to co
ntact with us .Company name :JINAN SINOHENG im
port AND EXPORT CO.,LTD
Co
ntact Person :Estrella Wang
Tel :0531-67803861Looking forward to your any inquiry !Supply you our good quality trucks ,best price and excellent service !

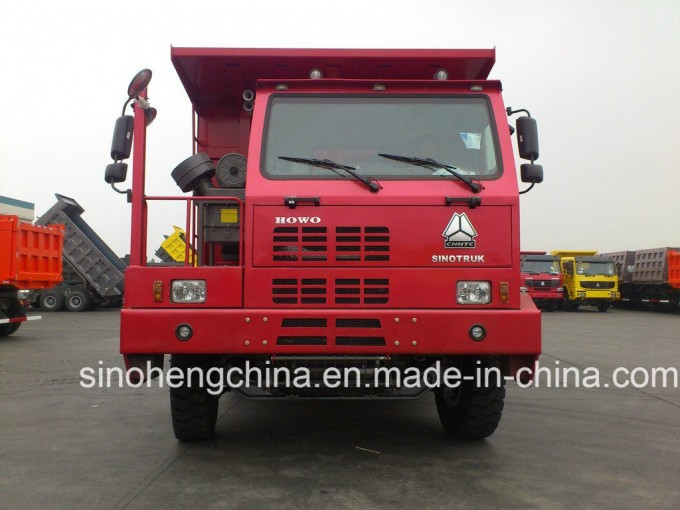

Product Image
