Detailed Description
waken lion brand tanker semi trailer double axle 30,000L
tanker transport oil, gasoline, diesel, and other liquid material
tank loading capacity from 25,000--45,000L
| SUIZHOU LISHEN SPECIAL VEHICLE CO.,LTD |
| DIMENSIONS |
| Model: | SLS9280GYY |
| Tare Weight | 7,800kg |
| Payload | 30,000kg |
| Total Weight | 38,000kg |
| Overall Length | 88,000mm |
| Overall Width | 2,500mm |
| Overall Height | 3,500mm |
| Wheel Track | 1840mm |
| Wheel base | 4700mm+1310mm |
| Tank special set size | Straight tank, size: 8400x2500x1870mm |
| Tank Material and deploy | 5mm carbon steel, 2 compartment,4 clapboard, 2 standard Manhole and cover, 2 vent valve, 2 pc pneumatic bottom valve
2 ball valve and connect oil pipeline. |
| STANDARD SPECIFICATION |
| Main frame | Heavy duty and extra durability designed |
| Axle | Double Units of FUWA(brand) 13Ton axle |
| Leaf Spring suspension | four sets of reliable local brand, 4-piece leaf spring |
| King Pin | one unit of 2``(50mm) SAE standard bolted-in kingpin, |
| Landing Gear | SAF 28Ton manual operation, heavy duty landing gear |
| Tire and rim | 9 units of 12.00R22.5 tire and 9.0 steel rim |
| Spare Wheel Carrier | Two set of spare wheel carrier |
| safety System | braking system and air tank
Ladder and safety corridors on the tank top |
| Painting | Sand blasting before painting;
two coats of primer, anti corrosion;
one coat of finish painting;
color is silver or advised by client |
| Accessory | One tool box with a set of standard trailer tool, two FIREX holder and FIREX |
| WARRANTY | 18 MonTH OR 30,000KMS |
| Fob Shanghai | | |
| CIF XXX PORT | | |
For the specification above, we reserve the right to make Little changes without notice.

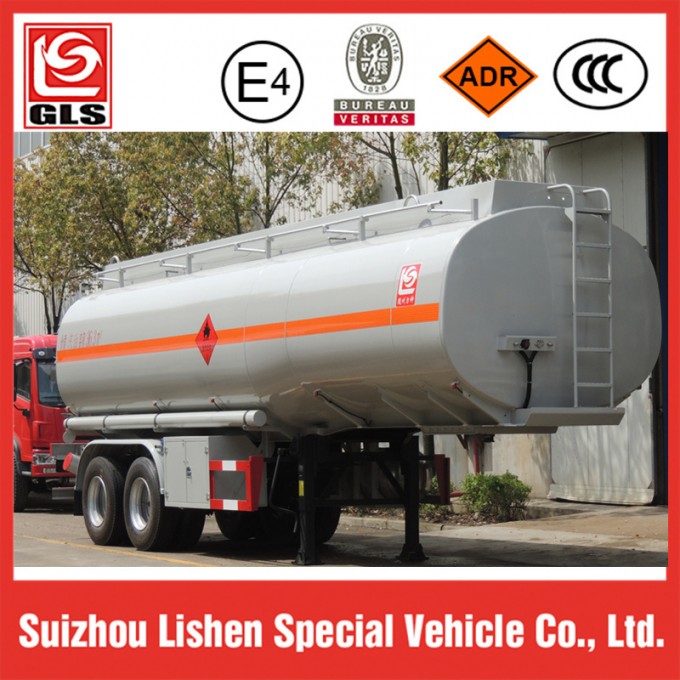

Product Image
