Asphalt Transport Semi Trailer 3 Axles 30-35 Cbm

Product Description3 Axle 35-60cbm Heating Asphalt Bitumen Truck Tank Semi Trailer
As an experienced semi trailer manufacturer, we can according to the actual needs, design and manufacture tank semi trailer specifically for you.
27m3 35m3 3 Axles Four Compartments Liquid Heating Bitumen Tank
Diesel Burner Heated Bitumen Tanker With tri-Axle trailer chassis
Here provide the product sheet of bituman tank semi TRAIELR series:

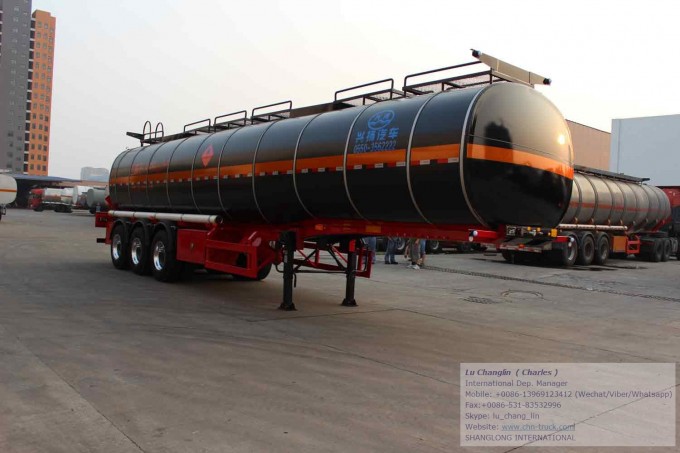

40 M3 Asphalt bitumen Transport Semi Tanker Trailer
Model	TY9400G
Wheel base	1310 (mm)
Tyre Specifications	12.00R20
No. Of the Tyres	12 pcs ISO Certificated
Axle	13Tonnage
No. Of the Axles	3 pcs
Landing Gear	28 ton capacity Fuwa with static capacity of 80T
Suspension	Heavy duty mechanic suspension with 10 pcs leaf spring
King Pin	2' and 3.5' interchangable traction pin
Departure Angle	15
Front/Rear Overhang	1900 mm
Material of the Main Beam	Automatic submerged arc welded Main beams Q345B/ST52-3, through cross beams Q235 Body material Q235B manganese plates, automatic submerged arc welded
Brake System	Automatic air brakes Double pipe line air brake, front two axle is 30 air chamber, rear axle is 30/30 air chamber.
Colour	As the buyers' request
Accessory	One tooling boxes ,Two spare tire carrier, Two fire extinguisher
Tanker side thickness	5mm carbon steel
Net Weight	10 T
Oil tanker	Round Shape
Spare tire carrier	1 set
Electrical System	24V, 7core socket, lights according to European standards.
Tool Box	1 box of standard tools
Heat Preservation System	Electrical or Diesel
used for bitumen asphalt liquid wax and so on Other Dimension and rated capacity will be available, pls contact the supplier through email. Detailed quotation with your needed data will be provided.

Functions of the tanker semi trailer
This series bitumen asphalt tank semi trailer, material is carbon steel. tank-style designed, is suitable for the transportation of bitument asphalt wax and so on products.

Optional parts for the tanker semi trailer
Axle quantity: 2 axle 3axle 4axle
Axle brand: FUWA /BPW and so on, 12ton, 13ton, 16ton, 18ton, 20ton.
Volume: 10 cube meters to 70 cube meters
Suspension: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc.
Material: Carbon steel/aluminum/stainless steel material
Medidum:bitument asphalt wax and so on products.

FAQ:

1.Can ihave samples of this tank semi trailerto test the quality?
Yes, you can buy any semi trailer to test the quality, moq is 1set.
2.What's the delivery time and can you lower the price?
It depends on the trailer type.The delivery time is within 15 workdays after we received your ppayment.If you make an order of large quantity, then ,we can give discount.
3.Can icustomize the painting and the trailer design?
Yes, we offer customized design and logo for reasonable type.
4.What's the payment method of the trailer?
A.Tt 30% as deposit, balance before shipment by tt
B.L/c at sight
5.How do you ensurethe semi trailer quality?
We are direct factory and we have professional quality inspector.We will not let any imperfections departure from our factory.
