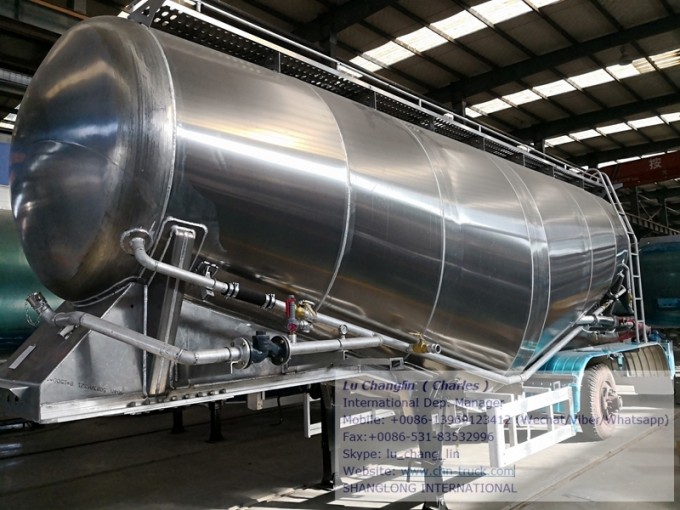

3 Axle Aluminium Alloy Bulk Cement

product parameter(volume different the parameter will change)

volume	40M3
payload	45ton
tare weight	7000kg
axle	3x13ton/14ton/16ton/20tonbrand can be opentional
suspension	mechanical suspension/air suspension/american type/germany type can be opentional
tire	11R22.5/12R22.5/11.00R20/12.00R20brand can be opentional
wheel rim	8.25/9.0/8.0/8.5
kingpin	2"/3.5"
Ibeam	aluminium 5183 material
landing gear	jost c200 /fuwatwo speed 28ton
tankbody	6mm thickness
end plate	7mm thickness
spare tire carrier	one
engine	weichai(tianhe/huafeng) can be opentional
air compssor	bohai 12m3/sansen/keda/taike can be opentional
electricity wiring	6 core wiring;24v or 12v ;LED lamp;
brake system	wabco relay valve;drum brake;t30/30 brake chamber
paiting	complete chassis sand blasting;electrophoresis coating;1 coat of anticorrosive prime; 2coats of final paiting
tank type	v type or stereoscopic as customer requirment
accessories	brake shoe;spare tire cranking;shaft head wrench;jack 50ton;tire bolt;lamp

BRIEF DEscriptION

the normal produce process is very important.it can be influence the quality-durable years of the product .even the customer confidence to our product.

3.NORMAL PROCEDURE

1)cutting

use the plasma cutting machine cut the steel to little parts use for suitable welding and splicing

2)welding

after steel cutting process the next step is welding .this process the main work is beam welding .the top plate-bottom plate and the
middleplatewillbe welding together .this process will be use submerged arc welding process.this type of welding is very
special .its exclusively used in Ibeam welding .after this welding process other parts of the trailer will be use different welding way
for different steel-argon arc welding-electric arc welding-manual welding-gas welding and so on

3)blasting

this process is use for the first step of surface cleanness-stress relief-derusting before paiting .

4)electrophoresis coating

this process use for more detail surface cleanness

5)epoxy zinc primer spray coating

this process is the lasting one before paiting .after this process the trailer an be paiting

6)assembly

after all the process we have mationed .the last procedure of the trailer is assembly.this process all the parts will be assemly .it including tire-wheel rim-king pin-landing gear-suspension-spring leaf -brake chamber-air wiring-electricity wiring-brake system and so on

7)packing

The last process is packing .all the trailer use different packing way as customer requirment.after packing the trailer can be on the way to the customer
