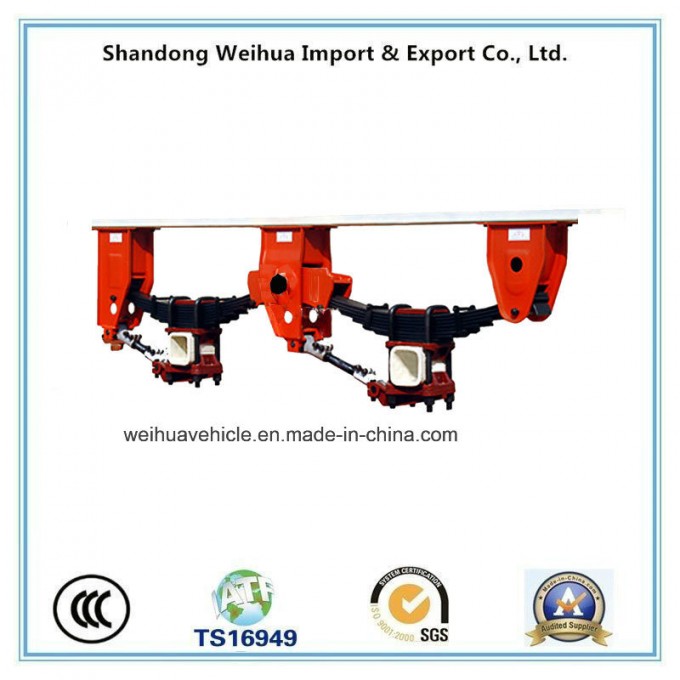

13T,16T American Mechanical Suspension of Truck Trailer
We have five types of suspension:
a. American type suspension
b. Germany type suspension
c. Casting type suspension
d. Rigid /Walking beam suspension
e. Air suspension
American typemechanical Suspension ( Both overslung type and underslung type)
1)Hanger thickness:4mm,4.5mm, 6mm, 8mm or 10mm
2) King pin: 50mm, 60mm, 70mm
3) Suspension height: 130-350mm
4) Color: black/ red/orange/ by customer
5) Material: Q235B
6) Spring width: 75mm, 90mm, 100mm, 120mm
7) Axle spacing: 1310mm, 1360mm
8) No. Of spring piece/spring quantity is optional
9) Axle load is optional
10) Size: design as your requirement
11) Max payload: 55T for complete suspension
12) Axle beam: square/ round
13) Fishing: painting or galvanizing
14) Packing details: wooden tray or other ways according to your requirements
im
portANT REMARK:we can produce fully according with your samples and drawings.
Technical da
ta:
| Suspensionaxle space | 1300,1310,1350,1360mm |
| Height from center of equalizer pin to top bracket | 115-355mm |
| Heightof trailer towing plate | 1180,1210,1230,1250,1300mm |
| Various suspension | 1 axle,2 axle suspension,3 axle suspension, 4 axle suspension |
| Leaf spring | 8 leaf, 9 leaf (90*16),10leaf,12leaf,(90*13)the quantity is optional |
| Leaf spring width | 90mm, 120mm |
| Equalizer pin | 50, 60,70,80mm |
| Equalizer bush | Bronze/mixed material |
| Hangers | Material Q235; thickness 6,8mm for option |
| Equalize | Thickness 10mm; 12mm for option |
| Torque arm pin | 36mm |
| Torque arm bushing | Rubber/iron-nylon |
| Axle seat | Casting steel |
| Cover plate | Casting steel |
| Spring lug | Casting steel/welding type |
| U Bolt/Nut | 8.8/10.9class |
| Brand Name: | WH or per your request |
| Packaging | Nude |
| Shipping | Bulk carrier or RORO or Container |
| FOB port | Tianjin port, China |
| Payments terms: | TTor LCat sight |
| Place of Origin: | Shandong, China (Mainland) |
