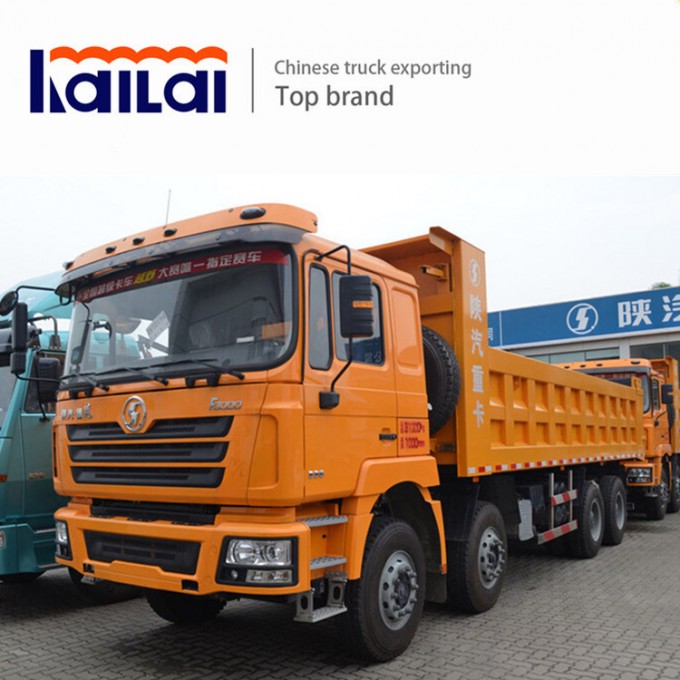

Shacman F2000 Delong 20cbm 8X4 Dump Truck

Shacman F2000 Delong 20cbm 8X4 Dump Truck

1.SHACMAN 8x4 dump truck
2.based on MAN technology
3.Steyr front axle,MAN rear axle
4.WEICHAI engine
5.FAST gearbox

1.Specification:

Cabin	Air suspension MAN F2000 cab, double sleeper, hydraulic shock absorb adjustable seat
	safety belt, adjustable steering, warm air system, sunroof, sun cap, bumper
Engine	Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.
Model:	WD615.46	European technology WEICHAI with MAN EVB technology
	MAX Horse power:	380HP/279KW
Gear box	Applied American technology	Max torque:1500NM
	Model:	FAST RT-11509C
	Speed:	9speed, 1reverse
Axle(front/rear)
Front axle	6.5ton STR technology non-driving steering axle
Tandem	16ton MAN technology double reduction, hub redactor driving axle,
Clutch	D430 diaphragm type, single dry frictional disc, hydraulic boosting.
Brake	Service brake: Double circuit pneumatic brake
	Parking brake: Spring-Power drum brake
	Engine brake: Engine exhaust brake(EVB)
Steering	ZF technology, driver sit at the left hand side
Tyre	12+1 spare tyre with rim
	11.00-R20 tyre
Suspension system: strongthen heavy duty Leaf spring type
	Front/Rear		13/13/12
Dump body:
Inside size of Body(mm): 9000x2300x1500, 8x6mm, made of high intensity steel
Lifting type: HYVA front lifter type hydraulic system.
Overall dimension(mm): 11874x2490x3450(Length xwidth xheight)
Wheelbase	1800+4500+1350mm
Track:
	Front/Rear		2050/1800
	Approach/Departure angle		18/14
	Front /Rear overhang		1525/2699
	Max speed		77km/h
Kerb weight:	15500kg
Oil tank capacity	300L fuel tank

2.Company introduction:

QINGDAOSEIZE THE FUTURE INTERNATIonAL GROUP is aheavy automobile business unit with the approval of State Administration for Industry and Commerce and State Development Planning Commission and is one of rare domestic enterprises with the authority of Ministry of Commerce.
Team:
1.Exporting trucks and construction machinery for 10 years.
2.Having cooperated with more than 180 customers, exported and reached 80 countries around the world.
3.Perfection for sales, parts -supply, after -sales service team.
