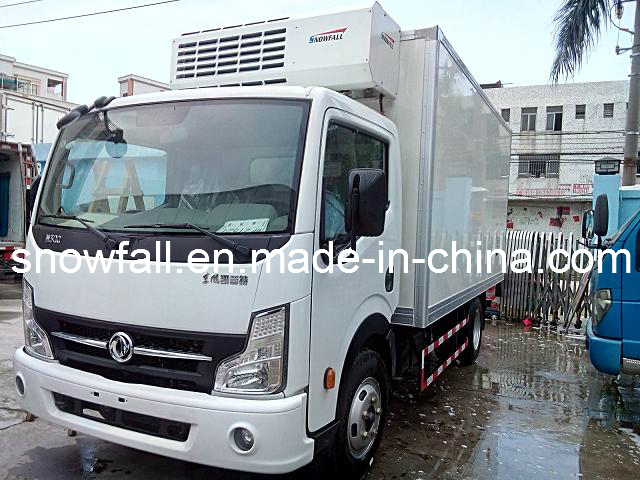

Ice Cream Truck Body

Eutectic cold bar system truck body

Eutectic cold bar system is widely used in Europe with advantages on the transportations of frozen food in a way to prolonged life of vehicle, all by using the power of electricity instead of truck engine.
It consists of compssor, condenser, control box and eutectic(freezing)bar.
This is a new concept refrigerator top which maintains cold for a long time by creaing latent heat when dissolving the fluid slowly after freezing (solidification) the fluid accumulated on the freezing plateat certain temprature.
It has a freezing method in which we accumulate the cold on freezing plate by operating refrigerator at night and we can keep products cold during day time by using the cold accumulated.
Features
-It can improve the perfomance of the vehicle because power is 380V(220V) which is regardless of engine of the vehicle.-It's cooling temperature is -40°C so that it allows to keep frozen food perfectly as it can maintain constant temperature of -25°C for 16 hours.-It gives pleasant trnsportation condition (no noise and no vibration).-It allows early cooling operation as you can keep frozen products in the vehicle and it allows increasing product selling time.-There are less mechanical problems because it operates with no relation with vehicle engine as Eutectic Cold Top is completely disconnected with the vehicle.

Rest assure that our products are high quality best price and reliable.Our products have been exported to many countries for years and enjoyed great reputation .

Vehicle	Truckbodysize	Condensingunit	Electric	Compssor	Eutecticplate(stainlesssteel)	Freezecapacity(kcal)	Refrigerationgas
					Size(mm):W560*L1250*T50
	L*W*H(mm)	Frontmount			Size(mm):W560*L1550*T50	(eutecticplatewithsolutionat-33 °C )
1.0t	3160*1740*1650	3HP	3pole380v	Copelandscrolltype	5pcs	1890kcal*5pcs=9450kcal	R404A3.0kgcharge
			50hz:2.2w
2.5t	4380*2000*1920	5HP	3pole380v		8pcs	1890kcal*8pcs=15120kcal	R404A4.5kgcharge
			50hz:2.2w
3.5t	4800*2000*2000	5HP	3pole380v		9pcs	1890kcal*9pcs=17010kcal	R404A4.5kgcharge
			50hz:2.2w
5.0t	6250*2450*2300	5HP	3pole380v		11pcs	1890kcal*11pcs=20790kcal	R404A4.5kgcharge
			50hz:2.2w
8.0t	7500*2500*2300	5HP	3pole380v		13pcs	1890kcal*13pcs=24570kcal	R404A4.5kgcharge
			50hz:2.2w
11.0t	9150*2500*2250	7.5HP	3pole380v		15pcs	1890kcal*15pcs=28350kcal	R404A6.0kgcharge
			50hz:2.2w
