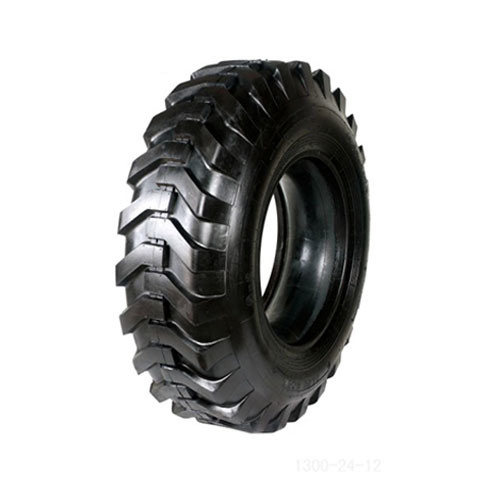

OTR Tire 17.5-25 Mixer Grader OTR Tyre for Dump Truck

OTR Tire 17.5-25 Mixer Grader OTR Tyre for Dump Truck

G2 PATTERN: Suitable for moter grader, loader excavators and bulldozers work on soft muddy ground, can play a great traction, and good self-cleaning wide tread provides good buoyancy, it has excellent driving performance in the muddy road.

E3 PATTERN: Applies to heavy dump trucks, scrapers and loaders under the condition of a varety of assignments, with wide generality, special tread compounds design and powerful body structre design, make it has excellent heat resistant abrasion resistance and good drawing performance, it's durable tires on mine construction.

E3B PATTERN: Applies to heavy dump trucks, scrapers and loaders under the condition of a varety of assignments, with wide generality, special tread compounds design and powerful body structre design, make it has excellent heat resistant abrasion resistance and good drawing performance, it's durable tires on mine construction.

E4 PATTERN: Suitable for the scraper and heavy dump trucks operation on harsh road condition such as mining areas, tunnel, quarry and construction site etc, deep tread and wide riding area provide good cutting & wear resistance, improve ride properties on gravel road, the tires have long service lift and is durable.

E4-S PSTTERN: It's suitable for the terminal port crane and heavy crane serise( for track, empty container tranfer, reach stack) is generally used for front and rear wheels & fork track, the tire has a good seal performance, strong driving grasping, strong carcass, not void, not bulging, good wear resistance, good performance of resistance to penetration and also stable running, special design has strengthened tire circle because the rear wheel of fork track was frequently used, so our tires are the best shoose of port machinery.

L-5 PATTERN: Suitable for scraper, loaders, grader, earthmover in mines construction sites and other various operation condition, with the features of wear-resisting & good cutting resistance, wide tread provides a good grounding and traction performance, good self-cleaning, and good operability.

L-5S PATTERN: Suitable for loader, scraper, excavators worked in mine, tunnel & harsh rocky conditions, special rubber formula provide the best cutting resistance and wear resistance, thickening smooth & super thicken tread increased the puncture resistance of rock, has a very high cutting resistance performance.

EXCAVATOR TYRE STS300 PATTERN: Suitable to loaders, excavator and bulldozers, operating on soft and muddy ground. With extremely strong traction, good-self-cleaning and wide tread pattern provides good floating. Excellent drive properties on muddy road surface.

Featuresfactory, OEM service.standard rubber, better stability, no slipping ring and lamination.puncture free, long wear, no exploding, long tire life adds up to major cost savings.high loading capacity, easy fix.various size, non-marking available.Quality, Durability, and Deep Tread Design for Traction.we have advanced quality inspection equipment.Solid Rubber with Cushioning for a more comfortable ride.For the harsh, more abrasive environments where Solid Tires are a must.

Company Information
QINGDAO LODA TYRE CO., LTD is a main operating tire production and processing enterprises, the company is located in Qingdao, Shandong Province, mainly engaged in forklift solid tyre, pneumatic industrial tyre, skid steer loader tyre, agricultural tyre,Forestry tyre and OTR tyre, more than 350 sizes with the comphensive production capacity more than 1.2 million sets. The trademark is "LODA", "ROADWAY" and "SPORMASTER". The products have been exported to USA, Canada, Mexico, South America, Europe, Australia and South Africa and etc.

QINGDAO LODA TYRE CO., LTD adhering to the "integrity, professionalism, win-win" business philosophy, adhere to the users first, quality first, science and technology customers, adhere to technological progress, continue to innovate and go beyond, we have gotten the certificate of ISO9001, DOT, CCC and REACH, and We have the import and export power, has become an automobile parts industry considerable strength and size of enterprises.

Our company's target is to be your reliable partner on special tyres, furnishing high quality products at competitive price and professional service.

Your satisfaction is our pursuit!


What We Have
·China LeadingTire Producing Technology
·Super High Quality
·Competitive Price
·Big Production Ability
·Fast Delivery
·Ten Years' Export Experience
·Excellent Sale and After-sale Service
·OEM Available


FAQ
1.Are you afactory or atrading company?
QINGDAO LODA Tyre Co., Ltd. is aprofessional factory of solid tire, OTR tire, Agricultural Tire, Skid steer tire, forklift tire and truck tyre since 1998.
2.Can Ibe your agent?
Yes, welcome to deep cooperation. We have big promotion of LODA brand in the market now. For the details please contact with our overseas manager.
3.Is OEM available?
Yes, OEM is available. We have professional designer to help your brand promotion.
4.Is the sample available?
Yes, samples are available for you to test the quality.
5.Are the products tested before shipping?
Yes, all of our tire was qualified before shipping. We test every batch every day.
6.What's your quality guarantee?
We have 100% quality guarantee to customers. We will be responsible for any quality problem.
7.What's benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.

OTR Grader Tyre G2/L2
Size	P.R.	Overall Diameter (mm)	Section Width (mm)	Rim	Max Load (kgs)		Inflation Pressure (Kpa)		Tread Depth (mm)
					10 km/h	50 km/h	10 km/h	50 km/h
1300-24 TG	16	1280	330	8.00TG	6500	3300	600	450	24
1400-24 TG	16	1350	360	8.00TG	7300	3650	550	375	25
15.5-25	16	1275	395	12.00/1.3	6750	3850	525	325	25
16.00-24	20	1460	425	10.00AV	9400	5350	525	425	29
17.5-25	20	1350	445	14.00/1.5	8250	5000	575	400	26
20.5-25	20	1490	520	17.00/2.0	9500	6000	450	325	29
23.5-25	20	1615	595	19.50/2.5	10900	5450	375	250	31
E3
Size	P.R.	Overall Diameter (mm)	Section Width (mm)	Rim	Max Load (kgs)		Inflation Pressure (Kpa)		Tread Depth (mm)
					10 km/h	50 km/h	10 km/h	50 km/h
20.5/70-16	14	910	350	10.00	/	1600	/	390	16
16/70-16	16	910	350	10.00	/	1600	/	390	16
16/70-20	16	1075	410	13.00	5800	3350	550	450	22
16/70-24	16	1175	410	13.00	5600	3350	450	350	22
14.00-24	20	1370	375	10.00	8500	4625	700	475	26
14.00-25	20	1318	366	10.00	9500	5150	850	575	26
15.5-25	16	1275	395	12.00/1.3	6750	3850	525	325	24.5
16.00-24	28	1490	430	11.25/2.0	11500	6700	750	575	26
16.00-25	28	1493	432	11.25/2.0	11500	6700	750	575	26
17.5-25	16	1350	445	14.00/1.5	7300	4250	475	300	26
18.00-25	32	1617	498	13.00/2.5	16000	9250	750	575	32
20.5-25	20	1490	520	17.00/2.0	9500	6000	450	325	29
23.5-25	20	1615	595	19.50/2.5	10900	7300	375	300	32
26.5-25	28	1750	675	22.00/3.0	14000	9250	475	350	36
29.5-25	34	1875	750	25.00/3.5	18800	12800	475	375	38
29.5-29	34	1975	750	25.00/3.5	21220	14000	525	400	38
33.25-29	32	2090	845	27.00/3.5	23600	15000	450	325	43
E4
Size	P.R.	Overall Diameter (mm)	Section Width (mm)	Rim	Max Load (kgs)		Inflation Pressure (Kpa)		Tread Depth (mm)
					10 km/h	50 km/h	10 km/h	50 km/h
18.00-25	36	1615	495	13.00/2.5	16000	9250	850	625	54
1800-33	36	1820	495	13.00/2.5	18500	10600	850	625	54
21.00-25	36	1953	575	15.00/3.0	19000	/	725	/	57
2100-33	36	1953	575	15.00/3.0	23000	/	750	/	54
21.00-35	36	2050	570	15.00/3.0	23000	12850	750	550	54
24.00-35	42	2175	655	17.00/3.5	29000	16500	750	550	57
2700-49	48	2700	735	19.50/4.0	43750	25000	775	575	63.5
30.00-51	52	2905	825	22.00/4.5	53000	30000	750	550	69.5
33.00-51	58	3060	895	24.00/5.0	61500	35500	750	575	80
36.00-51	58	3235	990	26.00/5.0	71000	41200	675	525	82
3700-57	68	3440	1015	27.00/6.0	/	46250	/	525	60
4000-57	68	3595	1095	29.00/6.0	92500	54500	725	550	95
53/80-63	78	3780	1345	36.00/5.0	123500	83500	750	625	95
L-5
Size	P.R	Rim	Overall Diameter (mm)	Section Width (mm)	Max Load (Kgs)/10km/h	Inflation Pressure (Kpa)/10km/h	Tread Depth (mm)
17.5-25	24	14.00/1.5	1400	445	8950	650	63.5
20.5-25	24	17.00/2.0	1550	520	10300	525	71.5
23.5-25	24	19.50/2.5	1675	595	12500	475	78.5
26.5-25	28	22.00/3.0	1800	675	15500	475	87.5
29.5-25	32	25.00/3.5	1875	745	17500	425	95
29.5-29	40	25.00/3.5	2023	750	23600	625	95
35/65-33 steel belted	36	28.00/3.5	2030	890	23600	525	97
45/65-45 steel belted	58	36.00/4.5	2735	1140	63630	675	117
L5S
Size	P.R	Rim	Overall Diameter (mm)	Section Width (mm)	Max Load (Kgs)/10km/h	Inflation Pressure (Kpa)/10km/h	Tread Depth (mm)
1200-24	20	8.50	1245	315	6900	825	56
14.00-24	20	10.00	1370	375	8500	700	63.5
17.5-25	20	14.00/1.5	1440	445	8250	575	63.5
18.00-25	40	13.00/2.5	1675	495	17000	950	78
26.5-25	32	22.00/3.0	1795	675	17000	550	87.5
29.5-25	32	25.00/3.5	2018	750	20000	525	95
E3B
Size	P.R.	Overall Diameter (mm)	Section Width (mm)	Rim	Max Load (kgs)		Inflation Pressure (Kpa)		Tread Depth (mm)
					10 km/h	50 km/h	10 km/h	50 km/h
20.5/70-16	14	910	350	10.00	/	1600	/	390	16
16/70-16	14	910	350	10.00	/	1600	/	390	16
16/70-20	16	1075	410	13.00	5150	2900	450	350	26
16/70-24	16	1175	410	13.00	5600	3350	450	350	26
17.5-25	20	1350	445	14.00/1.5	8250	5000	575	400	26
20.5-25	24	1490	520	17.00/2.0	10300	6700	525	400	29
23.5-25	24	1615	595	19.50/2.5	12500	8000	475	350	32
26.5-25	32	1750	675	22.00/3.0	17000	11200	550	425	35
port tyre E4-S
Size	P.R.	Overall Diameter (mm)	Section Width (mm)	Rim	Max Load (kgs)			Inflation Pressure (Kpa)	Tread Depth (mm)
					0 km/h	5 km/h	10 km/h
26.5-25	46	1760	675	22.00/3.0	/	/	26000	800	50
24.00-29	42	1975	650	17.00/3.5	48900	35300	32600	900	36
21.00-25	48	1750	575	15.00/3.0	40000	34000	30000	1100	52
18.00-25	48	1650	495	13.00/2.5	34800	30000	27600	1100	54
18.00-25	48	1650	495	13.00/2.5	34800	30000	27600	1100	59
16.00-25	40	1490	430	11.25/2.0	26400	21300	19800	1075	52
14.00-24	36	1370	375	10.00	21600	17400	16200	1100	46
12.00-24	28	1245	315	8.50	14000	12000	9900	950	46
EXCAVATOR TYRE STS300
Size	P.R.	Overall Diameter (mm)	Section Width (mm)	Rim	Max Load (kgs)	Inflation Pressure (Kpa)	Tread Depth (mm)	Type
7.50-20	14	943	215	6.00	1700	740	18.5	TT
8.25-20	14	992	245	6.50	2060	675	19	TT
9.00-20	14	1030	260	7.00	2500	700	20	TT
10.00-20	16	1062	280	7.50	3000	750	20	TT

Weare looking for sole agent in the world market, if your company is special on forklift and heavy machine area, welcome to be with us! We will be your stable and reliable supplier and partner!
