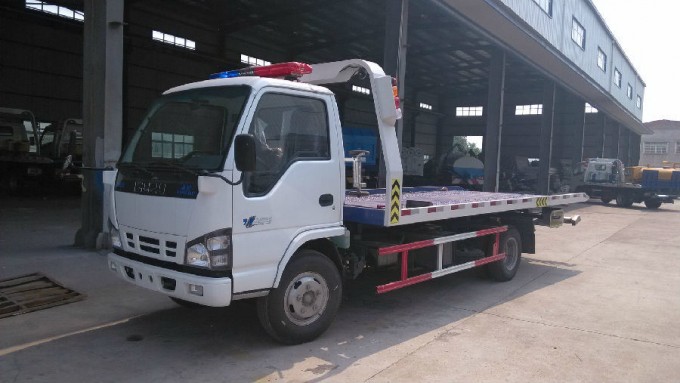

Recovery truck, also called as theroad wrecker,tow truck,wrecker truck,tow wreckertruck,tow truck wrecker,wrecker towing truck,etc.
Our tow truck co
nsistsof the chassis, hoisting equipment,truck tow hook, tow truck winch, tow truck wheel lift, hydraulic system, electric co
ntrol system, truck body and the tool boxes.
The tow truck can hoist, lift, draw and be with other special functions, mainly used in highway and city road obstacle cleaning.
Our one tow two wrecker truck which called flatbed tow truck can also deal with 2 sets of accident vehicles, upper back down tow, and mainly used within 3 tons of cars.
Equipped with 3 ton to 5 ton lift equipment, bind belt, auxiliary wheel, J type of hook, winch, electroniclamp, 20M steel wire, megaphone,etc
As a professio
nal tow truck manufacturer,the wrecker tow truck we produce is from 3 ton to 60 ton.The road wrecker truck we manufacture are flatbed tow truck, under lift wrecker truck, rotator tow truck, tow truck mounted crane,etc.We also accept SKD and CKD exporting by container.
Specification
| General |
|
| Truck Name | Flatbed Wrecker Tow Truck |
| Drive Type | 4*2 |
| Overall Dimensions L*W*H(mm) | 8500*2500*2600 |
| Curb weight | 8900 |
| Max flat carrying weight (kg) | 5000 |
| Engine |
|
| Engine Brand | Qingling ISUZU Engine Co.,Ltd |
| Fuel Type | 4HK1-TCG40, Diesel |
| Power | 139KW/ 190HP |
| Displacement(ml) | 5139 |
| Emission standard | Euro V |
| Engine Type | 4 cylinders in line, high pssure common rail |
| Chassis |
|
| Chassis Brand | ISUZU, QL11009MAR1Y |
| Cab | Single cabin with 3 seats |
| Chassis size (mm) | 7930x2170x2410 |
| Tire Specification | 8.25-16*6 |
| Wheelbase (mm) | 4475 |
| Axle No. | 2 |
| Axle (fron/rear) | Front, load ton; rear, load 7ton. |
| Steering Wheel | left hand drive with power-assisted |
| Gear Box | ISUZU, MLD gear box with 6 speed, manual |
| Suspension (front/rear) (mm) | 1110/ 2365 |
| Steel spring number | 8/10+6 |
| Configuration |
|
| Flatbed | 3P2A, Folding ram tablet |
| Rear working light | 3 pcs |
| Hydraulic winch | One (25 meter steel wire rope) |
| Toolbox | 1 piece |
| Hand washing tank | 1 piece |
| L type Hold the tyre rack | 2 pcs |
| Bundling belt | 6 pcs |
| Asked fork | 2 pcs |
| Asked fork support | 2 pcs |
| chain hook | 1 piece |
| Long line warning lights | 1 piece |
