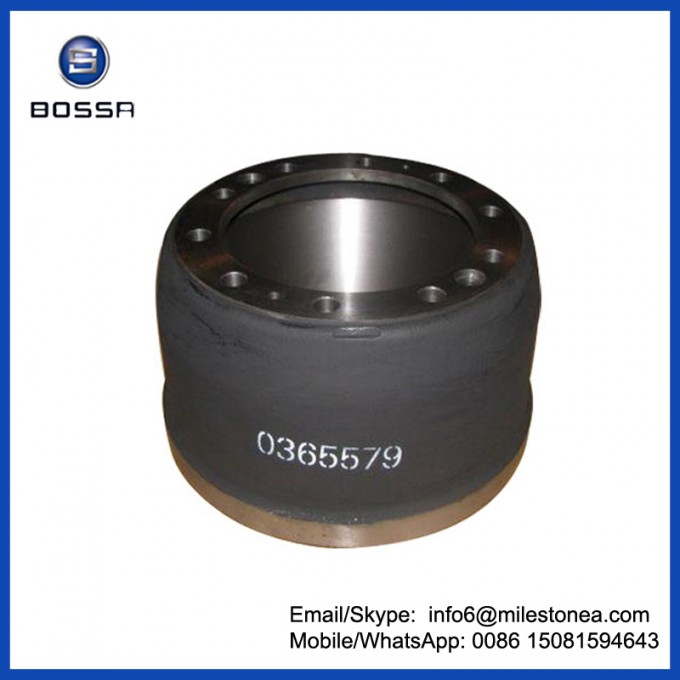

Materia&co
lon; iron
Technolggy&co
lon; Casting
Kilometers&co
lon; more than 100,000 kilometers.
size&co
lon;
| Bore Ø 1 | 14mm |
| No. of holes 1: | 2 |
| Hub Bore Ø: | 285 mm |
| Brake Surface: | 216 mm |
| Ø: | 420 mm |
| Height: | 288 mm |
| Bore Ø: | 24 mm |
| Num. of holes: | 10 |
| Bolt Hole Circle Ø: | 335 mm |
| Weight: | 63 kg |
| Fitting Position: | Rear Axle |
Mainly Casting products&co
lon; Brake shoe , Brake drum, brake disc, wheel hub, casing, Axle casing, and Axle,
Gear box casing, various of casting covers for trucks , tractors, exacavators etc, such as , Benz, Scanian,Mann, Ievco, Dafa,Hino Nissan, Mistsubish, Hyundai, , Cat, Komatsu, Terex etc.
Note&co
lon; All the cast iorn products we could produce according to OEM NO samples or drawings.
Tousands of cast iron brake moulds in our factory. That mainly used for Benz Man, Nissan, Hino Mitsubish, Dafa ,Kamz,Ievco BPW etc, and some of our products used for tractors excavators.
OEM NO , Samples and drawings are all ok. We could produce
| MOQ | 20-100PCS |
| Delivery time | Usually 15-20 days |
| Payment items | T/T etc
L/C at sight, west union are acceptable |
| Packing | Standard exported packing
Pallet or wood cartons |
| Certificate | SGS ISO etc |
Material in our factory below&co
lon;
| Country | Gray iron |
| China | - | HT350 | HT300 | HT250 | HT200 | HT150 | HT100 |
| Japan | - | FC350 | FC300 | FC250 | FC200 | FC150 | FC100 |
| America | NO.60 | NO.50 | NO.45 | NO.35 | NO.30 | NO.20 | - |
| Russia | C40 | C35 | C30 | C25 | C20 | C15 | C10 |
| Germany | GG40 | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| Italy | - | G35 | G30 | G25 | G20 | G15 | G10 |
| France | FGL400 | FGL350 | FGL300 | FGL250 | FGL200 | FGL150 | - |
| England | - | 350 | 300 | 250 | 200 | 150 | 100 |
| Poland | Z140 | Z135 | Z130 | Z125 | Z120 | Z115 | - |
| India | FG400 | FG350 | FG300 | FG260 | FG200 | FG150 | - |
| Romania | FC400 | FC350 | FC300 | FC250 | FC200 | FC150 | - |
| Spain | - | FG35 | FG30 | FG25 | FG20 | FG15 | - |
| Bulgaria | FGG40 | FGG35 | FGG30 | FGG25 | FGG20 | FGG15 | FGG10 |
| Australia | T400 | T350 | T300 | T260 | T220 | T150 | - |
| Sweden | O140 | O135 | O130 | O125 | O120 | O115 | O110 |
| Hungary | OV40 | OV35 | OV30 | OV25 | OV20 | OV15 | - |
| Bulgaria | - | Vch35 | Vch30 | Vch25 | Vch20 | Vch15 | - |
| (ISO) | - | 350 | 300 | 250 | 200 | 150 | 100 |
| (COPANT) | FG400 | FG350 | FG300 | FG250 | FG200 | FG150 | FG100 |
| Netherland | - | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| Luxembourg | FGG40 | FGG35 | FGG30 | FGG25 | FGG20 | FGG15 | - |
| Austria | - | GG35 | GG30 | GG25 | GG20 | GG15 | - |
| | | | | | | |
| Country | Nodular cast iron |
| China | QT400-18 | QT450-10 | QT500-7 | QT600-3 | QT700-2 | QT800-2 | QT900-2 |
| Japan | FCD400 | FCD450 | FCD500 | FCD600 | FCD700 | FCD800 | - |
| America | 60-40-18 | 65-45-12 | 70-50-05 | 80-60-03 | 100-70-03 | 120-90-02 | - |
| Russia | B40 | B45 | B50 | B60 | B70 | B80 | B100 |
| Germany | GGG40 | - | GGG50 | GGG60 | GGG70 | GGG80 | - |
| Italy | GS370-17 | GS400-12 | GS500-7 | GS600-2 | GS700-2 | GS800-2 | - |
| France | FGS370-17 | FGS400-12 | FGS500-7 | FGS600-2 | FGS700-2 | FGS800-2 | - |
| England | 400/17 | 420/12 | 500/7 | 600/7 | 700/2 | 800/2 | 900/2 |
| Poland | ZS3817 | ZS4012 | ZS4505 | ZS6002 | ZS7002 | ZS8002 | ZS9002 |
| 5002 |
|
| India | SG370/17 | SG400/12 | SG500/7 | SG600/3 | SG700/2 | SG800/2 | - |
| Romania | - | - | - | - | FGN70-3 | - | - |
| Spain | FGE38-17 | FGE42-12 | FGE50-7 | FGE60-2 | FGE70-2 | FGE80-2 | - |
| Belgium | FNG38-17 | FNG42-12 | FNG50-7 | FNG60-2 | FNG70-2 | FNG80-2 | - |
| Australia | 300-17 | 400-12 | 500-7 | 600-3 | 700-2 | 800-2 | - |
| Sweden | 0717-02 | - | 0727-02 | 0732-03 | 0737-01 | 0864-03 | - |
| Hungary | GV38 | GV40 | GV50 | GV60 | GV70 | - | - |
| Bulgaria | 380-17 | 400-12 | 450-5 | 600-2 | 700-2 | 800-2 | 900-2 |
| 500-2 |
|
| (ISO) | 400-18 | 450-10 | 500-7 | 600-3 | 700-2 | 800-2 | 900-2 |
| (COPANT) | - | FMNP45007 | FMNP55005 | FMNP65003 | FMNP70002 | - | - |
| Finland | GRP400 | - | GRP500 | GRP600 | GRP700 | GRP800 | - |
| Netherland | GN38 | GN42 | GN50 | GN60 | GN70 | - | - |
| Luxembourg | FNG38-17 | FNG42-12 | FNG50-7 | FNG60-2 | FNG70-2 | FNG80-2 | - |
| Austria | SG38 | SG42 | SG50 | SG60 | SG70 | - | - |
Company details&co
lon;
Xingtai Bossa Machinery Manufacturing Co., Ltd locat in Xingtai high-tech development zone, is a manufacturer that specializes in supplying OEM and ODM casting spare parts for customers since 1991. It covers an area of over 40000 square meters
Our foundry, machining workshop and export department&co
lon;
Sand casting since 8th May, 1991
Precoated sand casting since 8th May 1996
Lost foam casting since 8th Apr 1999
Mould opening since1999
CNC machining since 8th Sep 2001.
Aluminum die-casting since 2009
Bossa internatio
nal im
port & export department since 2012.
Our branches filters factory from years 2000. Produce various of filters for cars and trucks.
FAQ&co
lon;
1.Are you factory?
Yes, Our factory located in Xingtai High-tech development Zone.
2.What is it your mainly products?
We mainly produce Brake shoe , Brake drum, brake disc, wheel hub, casing, Axle casing, and Axle,Gear box casing, various of casting covers , supports.
All kinds of engine filters..
3.Can you produce others products?
Yes, All the cast iron products just have sample or drawings we could produce.
From 0.5kg-500kg, all the cast iron we could produce. Each year, 70000 tons cast iron products leave our factory and different city of China and overseas.
4.Do you just produce the cast iron material?
No, we could produce cast iron, alunimium, steel etc.
5.Do you have your own casting factory?
Yes, we have, that is why our price so competive in the market.
6.Do you have strictly test and inspection for the products before leave the factory?
Yes, before the products leave factory, For our quality co
ntrol deparment will inspect the products.
7.How many workers in your facotry?
90 workers in our factory. 17 technicist, 2 engineer. 1 senior engineer.
Welcome inqury, We will provide 24 hours service for you.
