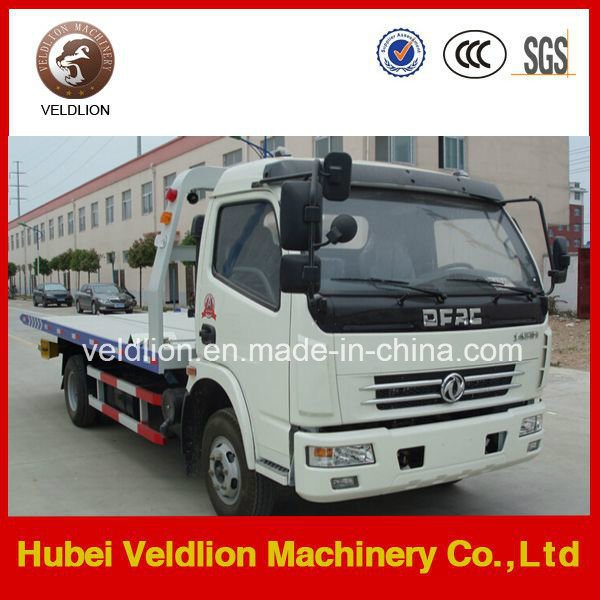

*Good performance dongfeng 3-5tons wrecker truck*--------------------------------------------------------------

Our company is professional manufacturer in truck area, guarantee all goods Brand-New and high-quality.

»I.Product Describution:

Manufacturer:Hubei Veldlion Machinery Co.,Ltd.

Wrecker truck,full name is road wrecker truck, is also called trailer truck or road rescue wrecker truck or towing truck.

It has multiple functions such as lifting, pulled and lift traction. Wrecker truck is mainly used in road, city of peccancy vehicles and rescue, etc.

Wrecker truck basically is refitted fromthe loading goods second class chassis, according to the wrecker truck's structure, it can be divided into tow, loading, lifting, rescue (single arm type and arms type) wrecker truck.

»II.Wrecker Truck Specification :

Item		Unit		Description
Model				Dong Feng brand
Dimension		mm		7420*2300*2380
Curb Weight		kg		5495
Wheel base		mm		3800
Rear Ground Clearance		mm		176
F/R track base		mm		1835/1640
F/R Axle-load		Kg		3500/6000
Approach/Departure angle		.		20/10
Traction system		4x2		Tire Specification/Number			8.25-16 /6 Unit+1 Unit
Max speed		90 km/h		Number of axles/ability			2
Engine model		CY4102-E3C		Emission/kw			3856ml/91Kw, 125 Hp
		Diesel, 4cylinder, direct-line. Turbocharge and watercooling.
Engine Manufacturer		DongFeng Chaoyang Engine Power Co.,Ltd
Steering		Power		Transmission			DF5S900, 5F&1R
Cab passenger		3		Electric System			24V
Drive system		Left hand or Right hand.
Air Condition		Option		CD, Radio,
Remark:		1.Option~installing Air conditioner
Function specification.
Arm Rated lifting weight		kg	1040		Tow arm expanding length			mm	1180
Tow Arm max valid length		mm	1300		Moving Speed with towing			Km/h	40
Flat bed dimension		mm	5240*2100		Flad bed max undertaking			Kg	3000
flat bed move length		mm	2680		Rated Tow Weight			Kg	3000
winch reel		Unit	1		Winch reel Speed			m/min	8
Steel line length		m	21

Remark:
1. Drive model:4*2,4*4,6*4,6*6,8*4;
2.Chassis Brand :Dongfeng, North Benz, JAC, JMC,FAW, Foton, Sinotruck, etc;
3.Engine:Euro3 and Euro 4emission standard with different horsepower;
4.Left hand drive /Right hand drive with optional.



»III.Our Advantages

Why choose us?


Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have avery good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.
Production supply capacity

Company scale
More than 3000 employees with 1000 acres factory, total asset 2billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.

Our services
1.We can send our technician to arrive the customer's country to provide the service and also we can train customer's workers for free.
2.Free consultation forever.When you meet small problems, professional advices can help you to solve them soon.
3.One year free cost warranty.
4.Spare parts forever.When you need spare parts, we can send them to you immediately.



»IV.Company Introduce:


Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is abig manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit amount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.

» V.Packaging &Shipping

Thick wax polished on products before shipping to protect.Use container, RORO/bulk ship or others as your requirement.We provide transportation insurance to guarantee the new and great condition of products for customers
