India Choose with Monorail Cable Hoist Trolley

India Choose With Monorail Cable Hoist Trolley



Brief Introduction:

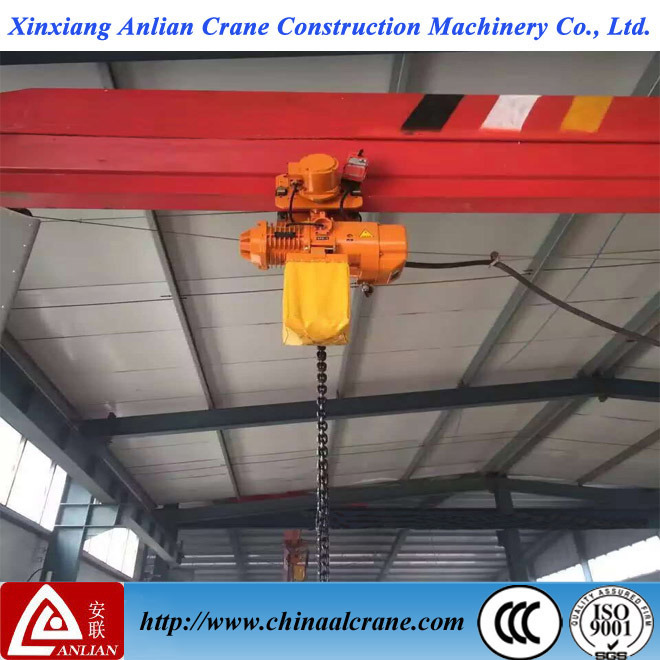

Electric Chain hoist is typical of unique optimal structure in shortening the distance between the machine body and the beam tracks, applicable to operations in side low buildings, especially suitable for use in temporarily erected plant buildings or on the sites where expansion of effective hoisting spaces inside the buildings is required the Most important parts of the Machine is Chain and brake system.


Spare Parts:

* Sheel:
1. The Electric Chain Hoist is made of light aluminum alloy shell, light but hard.
2. With cooling fin, easy and quick Bring the Heat out.

* Break System:
1. Side Magnetic Braking Device, Ensure lock the hoist
2. Mechanical braker, Dual braking system, much more safety.

* Limit Switch:
With up &down Limit Switch, to prohibit the chains from exceeding for safety.

* Chain:
FEC G80 Chain, Origina imported from Japan. Anti-Rust and Anti-corrosion

* Electromagnetic contactor:
1. With Schneider Electric (TESSIC), can be used safely under high frequency.
2. Can be installed Variable-Vrequency Drive (VFD Electric) Can be suitable for Singlle Phase Power supply.

* Inverse phase sequence protecting device:
It is sepcial electrical installation which controls the circuit not to work in case of wiring error in the power supply.

* Gear:
The gear made of alloy steel, Through the heat treatment.

* Level of Protection Grade(IP Grade):
1. Hoist IP Grade: IP54
2. Push Buttom IP Grade: IP65

* Power supply:
All kinds of voltage can be custom-made. 200V-660V, 50HZ/60HZ, 1P/3P

* Working Grade:
M4/1Am



Technical data:

Technical Specification
2t Electric Chain Hoist With Hook Type -HHBB02-01
Model		HHBB0.5-01	HHBB01-01	HHBB02-01	HHBB03-01
Capacity(t)		0.5	1	2	3
Standard Lifting Height(m)		3	3	3	3
Lifting Speed(m/min)		6.8	6.6	6.6	5.4
Lifting Motor	Power(kw)	0.75	1.5	3	3
	Rotation Speed(r/min)	1440	1440	1440	1440
	Phases	3	3	3	3
	Voltage(v)	200-660	200-660	200-660	200-660
	Frequency(Hz)	50/60	50/60	50/60	50/60
Operating Motor (Electric Trolley Type)	Power(kw)	0.4	0.4	0.4	0.75
	Rotation Speed(r/min)	1440	1440	1440	1440
	Operating Speed(m/min)	11/21	11/21	11/21	11/21
	Phases	3	3	3	3
	Volatge(v)	200-660	200-660	200-660	200-660
	Frequency(Hz)	50/60	50/60	50/60	50/60
Load Chain Falls		1	1	1	1
Chain Specification		Ø6.3	Ø7.1	Ø10.0	Ø11.2
Test Load(t)		0.625	1.25	2.5	3.75
Weight(kg)		47	61	115	122
I-Beam(mm) (Electric Trolley Type)		58-153	58-153	82-178	100-178
Chain Add Weight Per Meter(Kgs)		0.81	1.1	2.3	2.8

Packaging Details:
Plywood Case(Composite Material Box)
Delivery Time:
7-10Days after receipt of the deposit
Payment terms:
30%(T/T) as deposit, the Rest 70%(T/T) Before Shipment


Services:
After-Sale Service:
1. Guarantee Term: one year
2. After-sales team offer technology support anytime and anywhere
