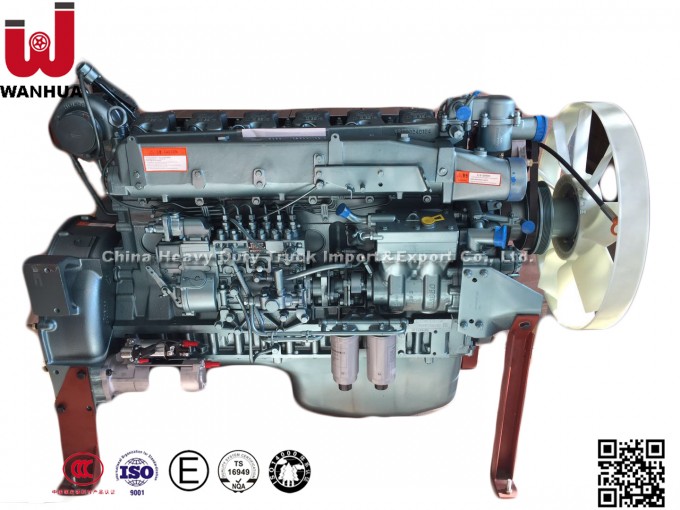

336HP Sinotruk Euro 2 Emission Standard Wd615.69 Truck Engine

336HP Sinotruk Euro 2 Emission Standard WD615.69 Truck Engine




Engine parameters

Engine:	Sinotruk WD615.69
Series:	WD615 II
Engine manufacturers:	Sinotruk
Adaptation range:	The truck engine
Air intake form:	Turbocharged inter-cooled
Cylinder number:	6
Fuel types:	Diesel
Cylinder arrangement:	Inline
Displacement:	9.726L
Emission standards:	Euro 2
Maximum output power:	247KW
Rated speed:	2200RPM
The largest horsepower.	336 Horsepower
Maximum torque:	1350N.m
The maximum torque speed:	1100~1600RPM
Full load the minimum fuel consumption rate:	≤193g/KW.h
The engine form:	Inline six-cylinder, water-cooled, four-stroke, turbocharged inter-cooled
Engine net weight:	850KG
Compssion ratio:	17:01
One meter outside noise:	≤98dB
The cylinder diameter x trip:	126x130mm
Each cylinder valve number:	2
Firing order:	The 1-5-3-6-2-4

Engine parameters

Engine Modle	WD615
	62	87	69	47
IFN(GB/T6070.1), Kw/r/min	196(266)/2200	213(290)/2200	247(336)/2200	273(371)/2200
Maximum torque, Nm	1100	1160	1350	1460
The maximum torque speed, r/min	1100-1600	1100-1600	1300-1600	1300-1600
Cylinder number	6
The engine form	Inline six-cylinder, water-cooled, four-stroke, turbocharged inter-cooled
The cylinder diameter x trip, mm	126/130
Displacement, L	9.726
mean piston speed, m/s	9.53
Compssion ratio	17: 1
Compssion pssure, kPa	>2000
Air intake form	Turbocharged inter-cooled
Firing order	1-5-3-6-2-4
Cold valve clearance, mm	Air intake 0.3 ;air exhaust 0.4
Emission standards	Euro 2

Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions


Warranty
Q: There are so many suppliers from China, how to identify the quality?
A: All parts that we sell enjoy 3 to 12 months warranty;
if any parts breaks during warranty, just offer us the proof. We'll resend you new one!

Claim
Q: What if parts we order from you are lost during delivery?
A: We'll resend the parts!
