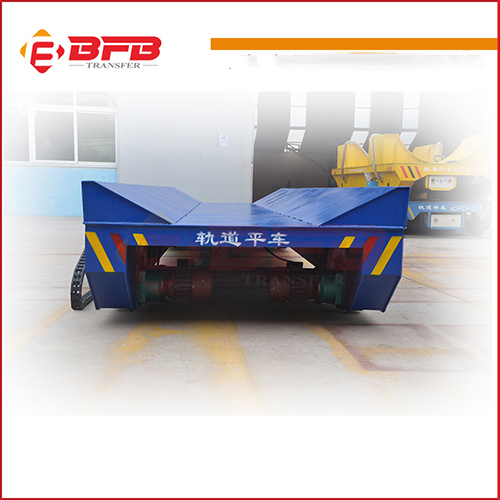

Material Handling Transfer Cart for Heavy Duty Manufacturing on Rail

Brief introduction for Material Handling Transfer CartThis kind of Material Handling Transfer Cart is powered by the towed cable which conducts AC 380v directly into the
electrical control system of the transfer cart to let it start, stop, go forward and backward, speed up and slow down
and so on.This flat bed transport car can be used both on the "s"and arc-shaped railways,the mobile cable is placed
between two rails.Components showThis kind of KPT series Material Handling Transfer Cart for Heavy Duty Manufacturing on Railis composed by Electric
rail carriage frame, the electric motor, gear reducer, wheel, electrical appliance box, Mobile cable, Shaft and connecting
shaft, handle box, alarm light, buffer device, pendant control or wireless remote control and some other accessories
and so on.
Application of Material Handling Transfer Cart for Heavy Duty Manufacturing on RailMaterial Handling Transfer Cart for Heavy Duty Manufacturing on Rail is suitable for various industries, steel mill,
transfer steel products such as steel structure, steel pipe, steel billets, steel ladle and coil, etc Paper roll plant: transfer
paper coil Painting shops: transfer workpiece into the painting room Sand blasting room Other industries: shipbuilding,
quarries, warehouses and multi-bay workshops, etc
Characters of Material Handling Transfer Cart for Heavy Duty Manufacturing on Rail

Anti-explosion

Anti-high temperature

Apply to various occasions

stable start, big starting power, small impact to the gear reducer, low voltage, long lifetime and so on.

It has no strict requirement for the construction of the railway

No limit of running hours

Safe and convenient operation for there is no wire outside the car

Adjustable speedTechnical Parameters of KPT seriesMaterial Handling Transfer Cart

Model		KPT-2t	KPJ-20t	KPT-50t	KPT-100t	KPT-150t
Rated Load(t)		2	20	50	100	150
TableSize(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	450	550	650	850	1200
Wheel base(mm)		1200	2800	3800	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(mm)		25	20	20	20	18
Motor Power(kw)		0.8	2.5	5.5	11	15
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.3	5.5	7.6	13.9	26
Recommended Rail Model		P15	P24	P43	QU100	QU100

Processing Line
Packing&Delivery
about UsXinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture,
installation and after-sales service of electric handling bogie ,transfer carts as one of the professional manufacturing
company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO
certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such
as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.Why choose usBEFANBY's platform car trailer are all by no less than 120% Load Bearing Safety test before shipping.BEFANBY's platform car trailer are all trustworthy and legitimate names in the industry.BEFANBY's platform car trailer are design and built meeting JB/T6127-92 and Crane Girder Standards ensuredurability and long lifetime.BEFANBY's platform car trailer 's manufacturing capacity range from 1 ton to 300 tons.All products are Crane Standard Slab Steel Beam Box Structure,safety, little table deformation and large loadcapacity.Working normally before shipping and easy operation,No need professional training operator.Heady duty packaging to provide protection during shipping.More than 1000 products and 587 custom design molds accumulation,committed to meet your one-stop-shopof factory material transfer carts.We offer: rail construction project design and construction CAD drawing, whole series of standard CAD rail cartdrawing and operation manual.Customized

load capacity, table size, and rail gauge can be customized

opinions:>1>remote radio control(import or made in china) Automatic stop when detecting obstacle or person,

limit switches(to limite travel) 2>Battery type (Free of maintenance Battery, lithium battery, explosion-proof

battery, and anti-high temperature battery)3>motor(DC motor with brush and DC motor brushless4> Electrical

parts (imported or made in china)

Product supply scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose the suitable transfer trolley?All of our transfer carts all customized as client's requirement, for choose the most suitable transfer trolley,please
kindly providing the following inforamtion:Transfer or handling what matrial/cargo?What capacity do you need?This trasnfer trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?
