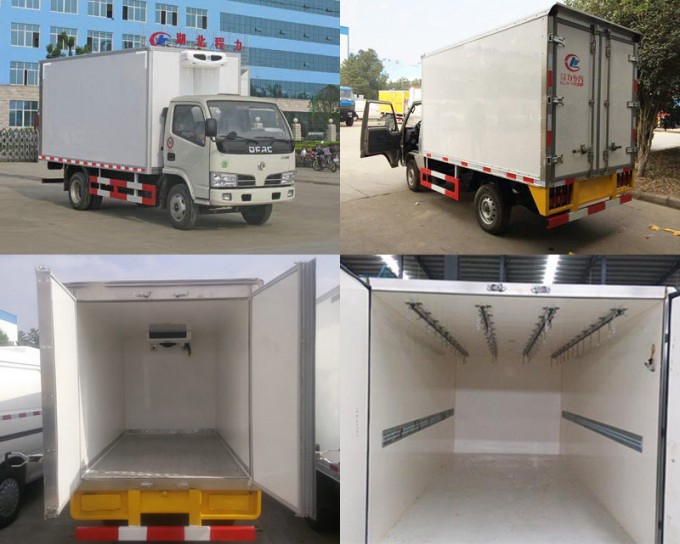

This parameter of do
ngfeng 5 ton refrigerated truck is just for your reference, this refrigerated truck can be used to transport sea food, vegetables, meat, fish and other products need low temperature, is a mobile refrigerator.
we also supply different dimension and usage Refrigerator truck,frozen trucks,frezzer truck, ice cream truck according to your demands.
Company Informations
·12 independents workshops.
·Established from 2004.
·300 senior engineers and technicians. a
bout 2000 to 3000 workers.
·380kinds of trucks and semi-trailers.
· Turnover 2 billion trucks and semi-trailers annually.
· 1000 sets of equipments,25 assemble lines.
CLW heavy industry Co.,Ltdalsoprovideproductsasfollows&co
lon;
1.LPGTankTruckTrailer/FuelTankerTruck
2.Watertruck/WaterTankTruck/WaterSprinklerTruck/WaterTanker
3.Truckwithcrane/Truckmountedcrane
4.DumpTruck/TipperTruck/SideTipper/EndTipper
5.FireFightingTruck/FireTruck/FireVehicle
6.ConcreteMixerTruck
7.Vantruck/Blastingequipmenttransporter/Refrigeratedtruck
8.Fecalsuctiontruck/Sewagesuctiontruck,
9.CementPowderTanktruck/Bulkcementtruck
10.High-altitudeoperationtruck,
11.Self-loadinggarbagetruck,garbagecompactortruck,sealedgarbagetruc
12.Tractor
13.HighPressureCleaningTruck
14.SweeperTruck
15.SemiTrailer(flatbedtrailer/skeletontrailer/dumpsemitrailer/sidewalltrailer/lowbedtrailer/vancontainertrailer/warehousetrailer,etc.)
Co
ntact Informa&co
lon; Miss Bella
Tel/Mobile&co
lon;+86-18827002581
Fax&co
lon;+86-27-83796298
Technique Parameters of Do
nGFENG 4X2 5 to
nRefrigerated Truck
| Vehicle Main Dimensions | Dimensions(L x W x H)mm | 5995*2020*3000 |
| Wheel base (mm) | 3300 |
| Overhang (front/rear) (mm) | 1032/1663 |
| Wheel track (front/rear) (mm) | 1506/1466 |
| Approach/Departure angle(°) | 19/10 |
| Weight in KGS | Curb Weight | 3500 |
| GVW. | 6495 |
| Max. driving speed(km/h) | 90 |
| Engine | Model | CY4102-C3F |
| Type | 4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 95HP |
| Displacement | 3.856L |
| Emission standard | EuroIII |
| Gearbox | 5 forwards & 1 reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 120 |
| Tire | 7.00-16 tire , 6 pieces including 1 spare tire |
| Brakes | dual circuit compssed air brake |
| Van |
| Material | 1. Fiber steel double deck
2. with 8CM thickness polyurethane
3. Fiber steel/Stainless steel/Color plate can be chosen |
| Tipper Box Dimension | 4100*1850*1800mm |
| Thickness | 10CM |
Truck refrigerated unit
| Unit model | L-Z25 |
| Applicable temperature (ºC) | -18~0 |
| Applicable volume(m3) | 10~18 |
| Voltage | 12/24VDC |
| Cooling capacity (W) | 0ºC | 2250 |
| -20ºC | 1230 |
| Dimensions(mm) | Condensing unit | 1020*520*320 |
| evaporator | 1000*530*170 |
| Weight(KG) | Condensing unit | 22 |
| evaporator | 16 |
