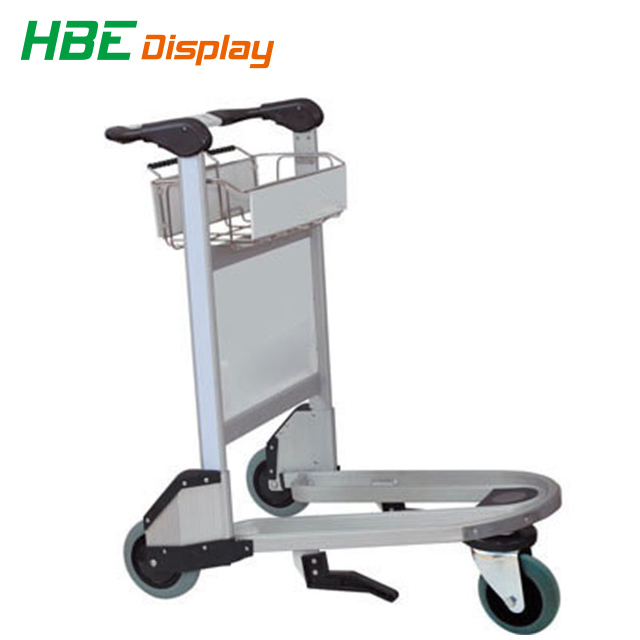

Aluminum Hand Brake Airport Luggage Cart

aluminumhand brake airport luggage cart

Introduction::
Material for different parts:

Model	WS-AL3	WS-AL6	WS-LX3	WS-GG-S1
Load Capacity	250kg	250kg	90kg	250kg
Approx Weight	19kg	20kg	12KG	21kg
Overall Dimension	980*670*1050mm	980*675*1050mm	710*510*1000mm	980*620*1030mm
Basket Size	525*220*150mm	525*220*150mm	390*380mm	525*220*150mm
Wheels Dimension	180mm	180mm	125mm	180mm
AD plate	525*355mm	525*355*6mm	No	525*355mm
Body Material	Aluminim alloy	Aluminim alloy	Stainless steel	Stainless steel
Wheel	Nature Rubber	Nature Rubber	Nature Rubber	Nature Rubber

Details:

Max.Load Capacity: 250KGS ;

N.W : 20KGS ;

Trolley size : Length:960mm ;

Width:670mm(Width of the front end 390mm) ;

Height:990mm(Height of the front end 300mm) ;

Basket Size: 525mm*220mm*160mm ;

Wheels characteristic : Swivel casterΦ180mm at front side ;

Fixed caster Φ180mm at rear side ;

Grey rubber casters with double ball bearings;

Ad plate: Main Ad.plate:525mm*325mm ;

Basket Front:480mm*100mm ;

Basket Back:480mm*120mm ;

Side Ad.plate:680mm*40mm ;

Brake characteristic : Hand released brake ;

Nesting distance : 270mm ;

Platform inclination : 12° ;

Body Material : High Strength Aluminum Alloy(6030) ;

Finish : frame :clear anodize finish ;

Basket :Steel in zinc plating and powder coating ;

Other model Specification:

Model	Size
HBE-AT-1	990x675X1030mm
HBE-AT-2	990x675X1030mm
HBE-AT-3	990x675X1050mm
HBE-AT-4	960x675X1030mm
HBE-AT-5	960x675X1030mm
HBE-AT-6	990x675X1050mm
HBE-AT-7	1000x675X1030mm
HBE-AT-8	1000x675X1070mm
HBE-AT-9	960x675X1000mm
HBE-AT-10	1000x680X975mm
HBE-AT-11	980x650X1010mm
HBE-AT-12	1000x630X1060mm
HBE-AT-13	1000x635X1020mm
HBE-AT-14	1000x635X1020mm
HBE-AT-15	1100x625X1060mm
HBE-AT-16	960x615X1150mm
HBE-AT-17	960x635X1070mm
HBE-AT-18	960x635X1070mm
HBE-AT-19	660x530X990mm
HBE-AT-20	700x515X1000mm

FAQ::
Q:How about your products quality?
A:We are professional onairport equipment have 20years, pass the ISO, SGS certification, and our factory more than 400worker work for you. And we have customer from more than 60countrys.

Q:How about your price?
A:We are not most cheap price, but same price we are more good quality. Because we have advantage onproductionefficiency, and we have more automatic machine to reduce the labor cost.

Q: How to order your products?
A: Please send the inquire below, our professional sales will contact you within 24hours.

Advantage:
1. The main parts of airport trolley is made up of high strength aluminum alloy or stainless steel;
2. There are 3 or 4 wheels to choose;
3. The airport trolleys have AD plate to advertise;
4. They have auto brake;
5. The nature rubber wheels is environmental;
6.They have a variety of styles.
