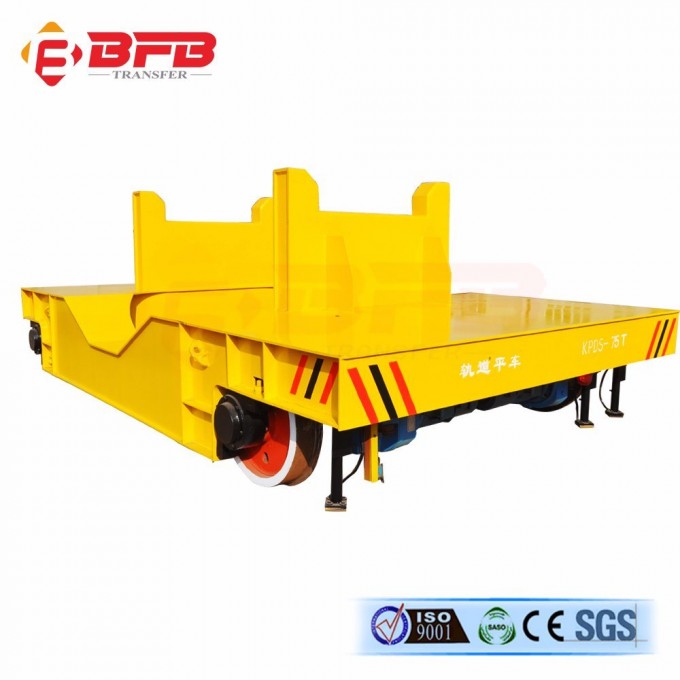

30t Motorised Handling Trolley for Aluminium Coil Transport

BriefIntroduction---30t Motorised Handling Trolley for Aluminium Coil TransportThis kind of 30t Motorised Handling Trolley for Aluminium Coil Transport is powered from the rails,which is running on the straight railways or on the 'S' and arc-shaped railways to carry many material. Our company is the professional motorised handling trolley manufacturer with more than 16 years designing and producing experience.Working principle----30t Motorised Handling Trolley for Aluminium Coil TransportMotorised Handling Trolley for Aluminium Coil Transport ispowered by the 36V single-phase (three phase) low voltage rail, which through sliding wire to complete. Ground step-down transformer control cabinet will be single phase (three phase) AC 380V step-down to single-phase (3Phase) 36V, sent to the motorised handling trolley by the rail sliding wire, and then step-up (three phase) single-phase AC 380V by step-up transformers on the car, provide electricity for the single-phase capacitor motors which used in the trolley.
Application----30t Motorised Handling Trolley for Aluminium Coil TransportThis kind of Motorised Handling Trolley for Aluminium Coil Transportcan be widely applied in metallurgy, Machinery Fabrication, Auto makers, Heavy Industrial, Light Industrial, Mould Maker, Construction Machinery maker, Shipyard, Port Cargo Yard, Steel Transfer, Mining Transfer, Air and Space as well as Military industries and so on to transfer and handling equipment or material from workshop to workshop or from bay to warehouse.Advantages----Motorised Handling Trolley for Aluminium Coil TransportAll of our 30t Motorised Handling Trolley for Aluminium Coil Transport are equipped with state of the art safety features including safety lights, horns, bumpers, dead man controls and mushroom type emergency stop buttons.It can be used to transfer anything you imagine and working situations, such as steel coil, billets, bloom, ladle & scrap, locomotive, vehicle, workpieces to painting shops or blasting room, etc;We designed and added the special device to it can apply in the high temperature and explosion working environment,it is also can add the weight system.Features----30t Motorised Handling Trolley for Aluminium Coil TransportSafety, flexibility, stable start;Long lifetime;using frequency;Simple operation;High efficiency;No restriction of the running and working time.Parameter list----Motorised Handling Trolley for Aluminium Coil TransportProcessing Lineabout UsXinxiang Hundred Percent Electrical and Mechanical Co., Ltdis a collection of research, design, manufacture, installation and after-sales service of electric handling bogie ,motorised handling trolleys as one of the professional manufacturing company, which has a modernized management team and excellent staff.And our prodcuts gets CE, SASO,SGS,ISO certificate and other 8 national patent, our products have been exported to more than 50 countries and regions,such as Germany, Mexico, USA, Turkey, South Africa, Singapore etc.
Our producing scope

Product Name	Model No.	Power Supply Mode	Load Capacity	Other Items	Usage
Rail Transfer Cart	KPD	Conductor Rail	Load range 1-300ton, can be customized per client demand	Running distance	Ordinary goods,such as steel plate, workpiece,equipment etc special goods,such as coil. column,ladle etc
Battery Powered Transfer Car	KPX	Battery		Using frequency
Motorized Transfer Trolley	KPJ	Cable Drum		Running distance
Busbar Powered Handling Cart	KPC	Busbar		Working shop
Towed Rail Trailer	KP	Tractor	1-100t	Working shop
Steerable Towed Car	BWT	Tractor	Load range 1-50t, less than 20t, cement floor is ok. More than 20t,steel floor is demanded.	Working environment
Trackless Handling Machine	BWP	Battery		Working path

How to choose the suitable handling trolley?All of our motorised handling trolleys all customized as client's requirement, for choose the most suitable motorised handling trolley,please kindly providing the following inforamtion:Transfer or handling what matrial/cargo?What capacity do you need?This motorised handling trolley is running on rails or ground(floor)?Your requirment for table size:length,width and height?How about the running distance?How many working hours in per day?
