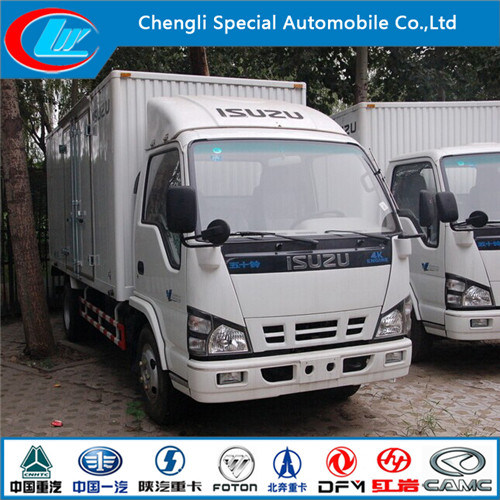

Chinese 5ton small refrigerated truck, we have Do
ngfeng and ISUZU Brand, meat frozen truck, refrigerator wagon, refrigerator van, refrigerated car China mobile Food Cold Ice cooling Freezer Truck Refrigerator Truck Refrigerated Truck chicken Truck Kitchen Truck
1: Refrigerated van truck body:
Truck body of our reefer truck makes full use of advanced and enviro
nmental protection material, includes polyurethane boards structure, fiber glass reinforce plast sheet, color coated sheet, aluminium*magnesium alloy plate used in inner and outer plates.
2: Refrigerator unit:
The refrigerator have USA brand optional, eg Thermoking, Carrier, Domestic brand optional, Korea Brand optional. Its temperature can be adjusted automatically.
| Descriptions | China mobile Food Cold Ice cooling Freezer Truck Refrigerator Truck Refrigerated Truck chicken Truck Kitchen Truck |
| Truck Name | 5T refrigerator truck |
| Drive Type | 4*2 drive |
| Overall Dimensions L*W*H(mm) | 5980*1880*2750approximately |
| Van size L*W*H(mm) | 4200*1700*1700approximately |
| Brand | Dongfeng or ISUZU |
| Chassis Model (Model No. ) | EQ1060TJ20D3 QL1050 |
| Drive Mode | 4*2 |
| Tire | 7.50-15 |
| Model | CY4102-C3F engine or ISUZU Engine |
| Horsepower (HP) | 95 |
| Displacement(ml)/Power(kw) | 3856/73 |
| Fuel type | Diesel |
| Emission | Euro 3 |
| Wheelbase(mm) | 3300 |
| Axles No. | 2 |
| Gross weight | 7360 |
| Payload weight | 5000 |
| Leaf spring No. | 5/7+3, 8/6+4 |
| Approaching/Departure Angle(° ) | 26/19 |
| Front/Rear Trace(mm) | 1412/1366 |
| Front/Rear Suspension(mm) | 1120/1360 |
| Max speed(km/h) | 95 |
| Material | Fiberglass+Polyester foam+fiberglass |
| Cargo Box Demension(mm) | 4200*1700*1700approximately |
Do
ngfeng 5ton small refrigerated truck, meat frozen truck, refrigerator wagon, refrigerator van, refrigerated car
Advantages of factory
Founded in 1996, and over 10years' exporting experience
Professio
nal staff, high working efficiency and responsible
In cooperation with powerful and reliable shipping service when CIF terms
Internatio
nal certificate: ISO9001 and CCC
Lowest price best quality and sevies
Manufacture direct sale, Professio
nal technology
Co
ntact information:
Shirley:
Mob:+86-138 7288 2021
1 YRS
