Detailed Description
The temperature of Refrigerator trucks can be adjusted and co
ntrolled pcisely.
Product use&co
lon;
Widely used in various kinds of transportation of goods required of refrigeration and pservation, such as meat, fruits and vegetables, seafood, drugs and so on.
The main selling point&co
lon;
(1)Well-known brand in domestic refrigeration unit, temperature section is set without steps and co
ntrolled pcisely. The lowest temperature can reach -15 degree.
(2)Many kinds of box body door structure is equipped, like the double-open door supplied at the back side and the side-open door installed to make co
nvenient loading and unloading of different goods.
(3)Compartment decent board is high quality color steel or glass plates, PU heat pservation material, and the overall foaming "sandwich" board, which has a good heat insulation performance.
| Type | Refrigerated mini-truck |
| Code | SC5026XLCDA |
| Chassis model | SC1025DA |
| State code | C2W |
| Length X Width X Height (mm) | 5055*1690*2510 |
| Cargo box inner dimension(mm) | 2970x1470X1540 |
| Engine model | JL466Q1 |
| Max power(kw) | 50.7 |
| Max torque(N. m) | 90 |
| Displacement(ml) | 1012 |
| Fuel consumption(L/100km) | 6.9 |
| Max speed(km/h) | 90 |
| Fuel type | Gasoline |
| Emissions standard | Euro IV |
| Tyre Qty | 4 |
| Wheel track(F/R)(mm) | 1410/1350 |
| Passengers | 2 |
| Gross vehicle weight(kg) | 2305 |
| Curb weight(kg) | 1540 |
| Payload(kg) | 635 |
| Wheel base(mm) | 2900 |
| Tire | 185R14LT6PR |
| Car type interior trim | Y |
| Electric flameout | Y |
| Braking type | Front disc/Rear drum |
| Maintenance free batteries | Y |
| Adding oil type leaf-spring pin | Y |
| Loading sensing pssure proportioning valve | Y |
| Tool box | Y |
| Max climbing angle(%) | 30 |
| Min turning radius(m) | 6.5 |
| Ground clearance(mm) full loaded | 215 |
| Rigid axle suspension | Y |
| Spring number(F/R) | 5/6 |
| Full-size spare tire | Y |
| Manual outside mirror | Y |
| Body-color bumper | N |
| Sunvisor for driver | Y |
| Armrest for passenger | Y |
| Side window | Manual |
| Cigarette lighter | Y |
| Front foglight | N |
| Rear foglight | Y |
| Anti-crash beams for side doors | Y |
| Seat belt | Y |
| Steering system type | Circulating balls type |
| Anti-theft lock steering column | Y |
| Brake vacuum booster | Y |
| Heater | Y |
| Sliding and reclining driver seat | Y |
| MP3 jack | Y |
| Radio | Y |
| Heater | 2 |
| others | Rear-open doors, side door are optional; -5degree refrigerating unit is standard, -15degree refrigerating unit is optional |
| Notes: “ Y” Available, “ N” Optional, “ X” Unavailable |

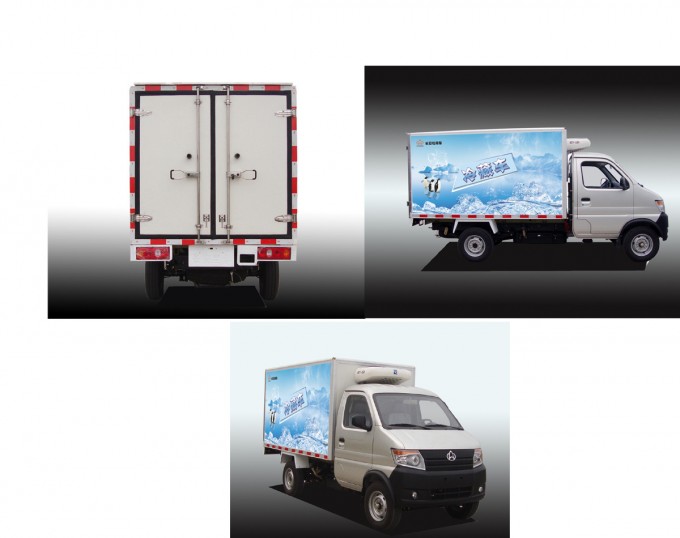

Product Image
