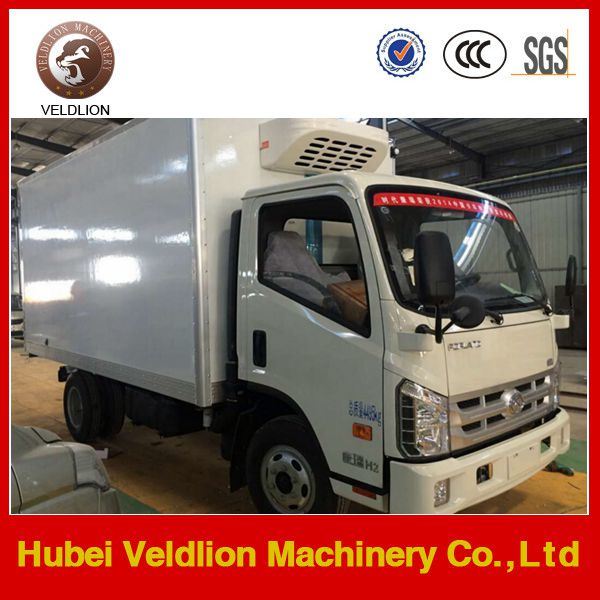

Foton 4*2 refrigerated van truck
----------------------------------------------------------------------
»I.Product Describution
Manufacturer:Hubei Veldlion Machinery Co.,Ltd.
Features of ourrefrigerated van truck:
1.Refrigerated truckis closed van used to transport the frozen or fresh goods,and is also kind of special
transportation vehicle equipped with refrigeration unit device and polyurethane thermal insulation box.
2.Transportation category:
Often transport frozen food like beef, dairy products,seafood,fruits and vegetables, vaccine and drug.
3.Construction:
Chassis,insulation box body,refrigeration unit,temperaturerecorders in the carriage,for special
purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel and others.
4.Refrigeration unit classification:
Non-independent refrigeration unit,independent unit,the domestic units and imported units.Usually using
external refrigerator for afew mini refrigerated truck.
5.Choice for insulated body:
Choose the newest PU foam insulated material,"Sandwich structure" with FRP or stainless steel inside and outside panels to keep good thermal insulation property and light weight,at the same time the whole refrigerated boxes look clean and beautiful.
| Vehicle main technical information: | ||
| Product Name | Foton 5tons refrigerated truck | |
| Product Model | BJ | |
| Overall size(L*W*H) | 5995×2040×2990mm | |
| Cargo body size(L*W*H) | 4000×1700×1800mm | |
| Gross weight | 6300kgs | |
| Rated capacity | 2565kgs | |
| Curb weight | 3605kgs | |
| Approaching/Departure Angle | 21/17(°) | |
| Front/Rear suspension | 1085/1550mm | |
| Max.speed | 90km/h | |
| Chassis Parameters: | ||
| Chassis Brand | Foton | |
| Chassis model | BJ1043V9JEA-A | |
| Drive type | 4*2 | |
| Fuel Type | Diesel | |
| Tire Specification | 7.00-16,7.00R16,6.50-16,6.50R16 | |
| Tire No. | 6 | |
| Wheelbase | 3360mm | |
| Alex No. | 2 | |
| Leaf Spring No. | 4/6+7 | |
| Front trend | 1415,1525mm | |
| Rear trend | 1485,1525mm | |
| Passengers in cab | 2,3 | |
| Axle loading | 1710/2785 | |
| Engine Parameters: | ||
| Manufacturer | Anhui Quanchai Power Co.,Ltd. | |
| Model | 4B2-95C40 | |
| Horse Power | 95HP | |
| Displacement/Power | 2545ml/70kw | |
| Emission standard | Euro 4 | |
